U & CV Joints & Drive Shaft

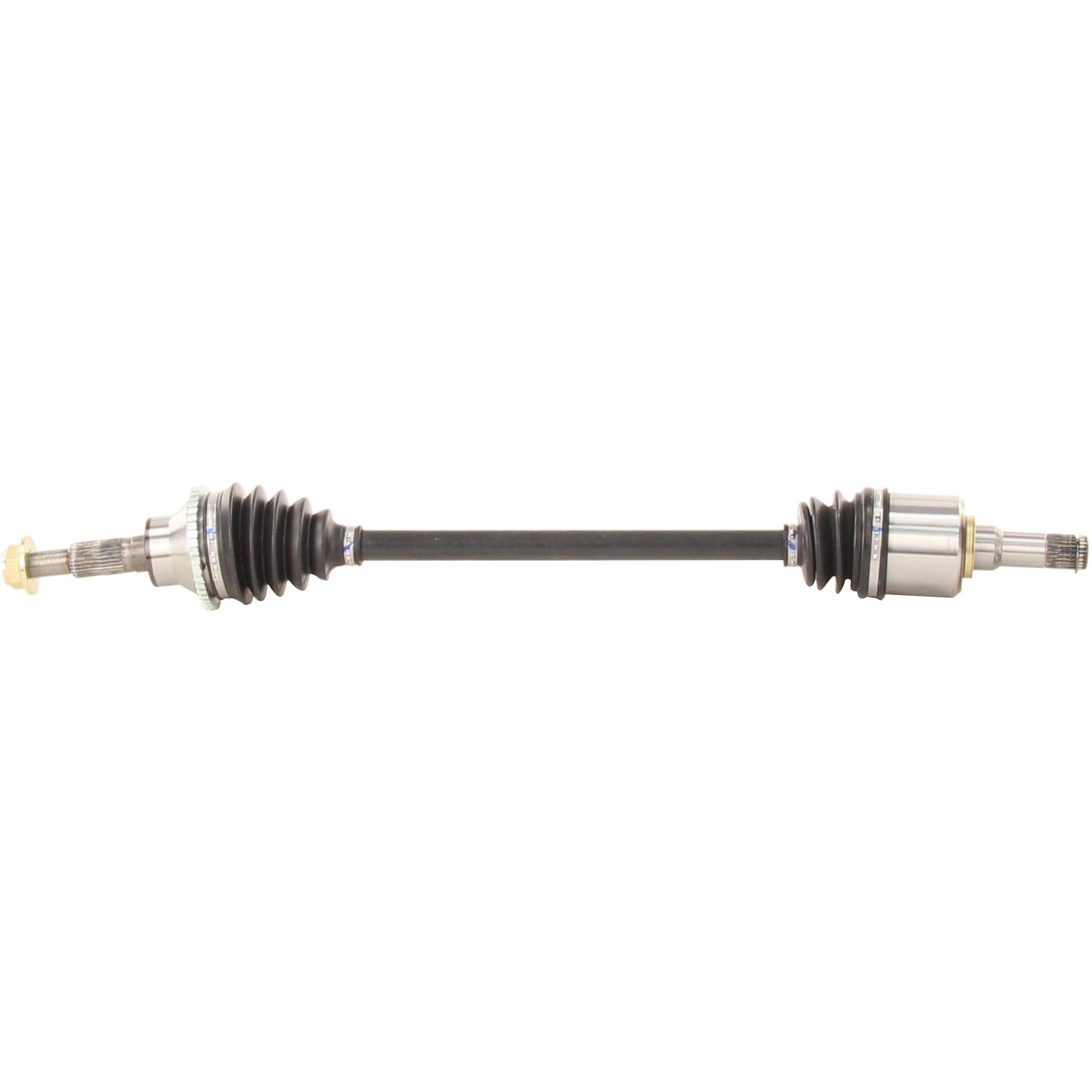

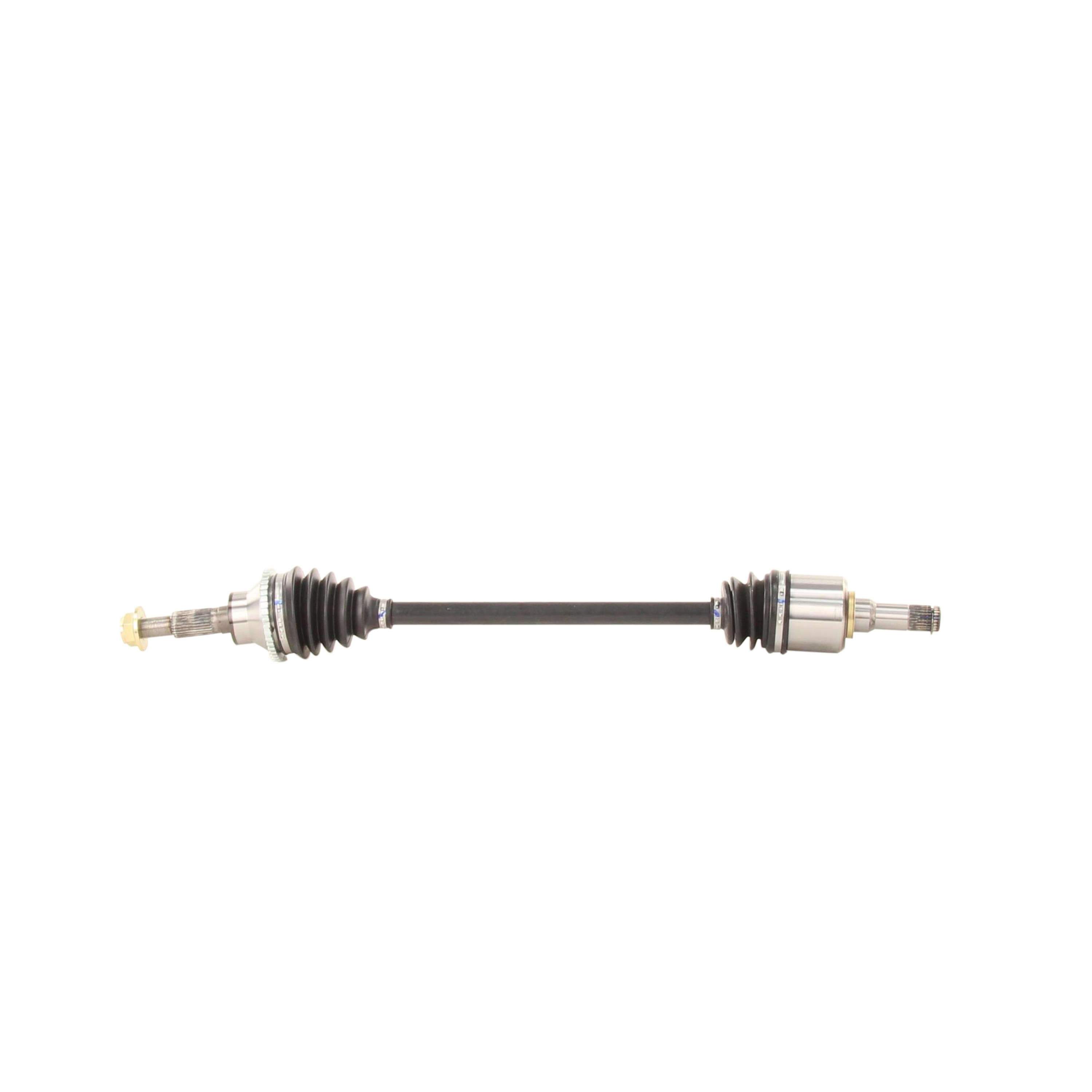

CV Axle Shaft
Part # FD-8158 | Line Code: TRK
brandNameImage
brandNameImage

info Select store for pricing
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male
ABS Tone Ring Included Yes

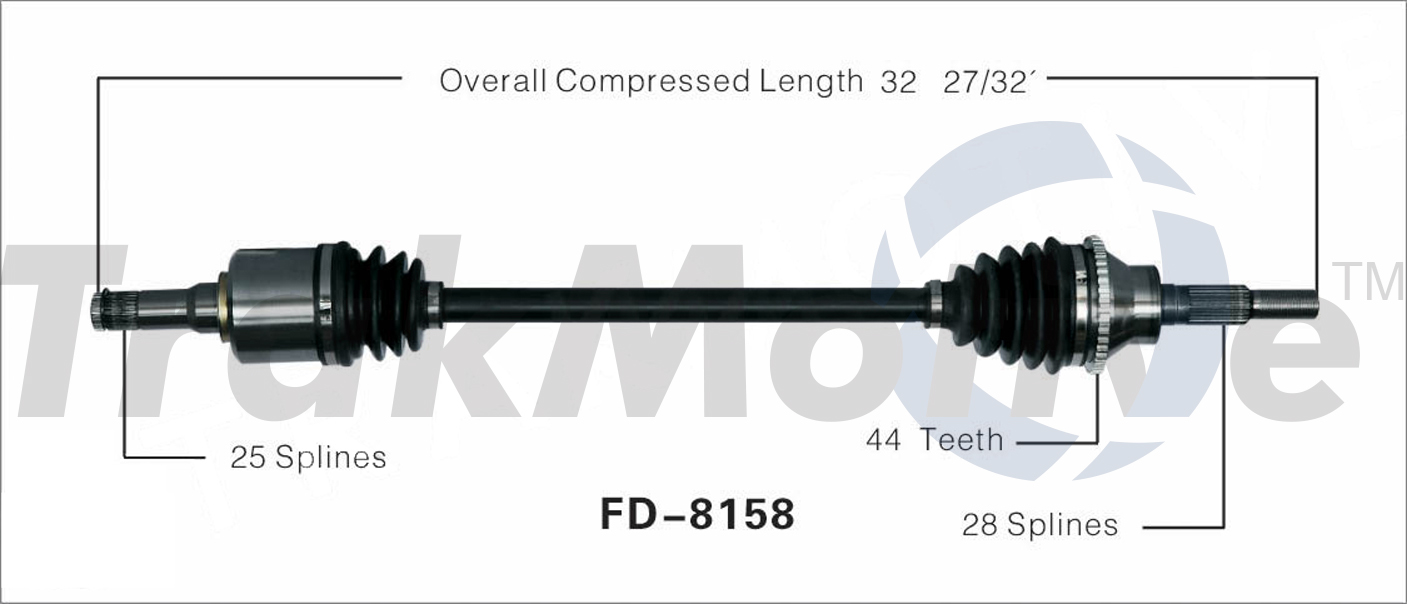

Overall Compressed Length (mm) 834
Overall Compressed Length (in) 32.83
Number of Bolt Holes 0
Number Of Outboard Joint Bolt Holes 0
Axle Nut Hex Size (mm) 32
ABS Ring Type Toothed
Axle Nut Thread Size M22X1.5
Number Of Inboard Splines 25
Number of Outboard Splines 28
Axle Nut Hex Size (in) 1.25
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
Axle Bolt Hex Size (mm) N/A
ABS Ring Tooth Count 44
Axle Nut Socket Size 32
Axle Nut Locking Type Self-Lock
Number Of Inboard Shaft Bolts 0
New Or Remanufactured New
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Shaft Connection Style Male
Inboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Conventional
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Axle Nut Height (mm) 22
Axle Nut Included Yes
Grade Type Premium
Boot Material CR
Number Of Outboard Shaft Bolts 0
Axle Nut Height (in) .83
Number Of Inboard Joint Bolt Holes 0
Axle Nut Length (in) 1.33
Axle Nut Length (mm) 35
Outboard Joint Boot Material Neoprene
Inboard Joint Boot Material Neoprene
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

Ford;Lincoln
