| Distance Between Front Mounting Holes (In) | 11.5 |
| Distance Between Front Mounting Holes (mm) | 294.5 |
| Input Shaft Length (in) | 1.1 |
| Steering Input Shaft Spline Quantity | 36 |
| Heavy Duty Supplier | Yes |
| Mounting Hole Quantity | 3 |
| Rack Length (mm) | 1143.5 |
| Distance Between Mounting Holes (mm) | 292.1 |
| "Hydraulic, Electric or Manual Steering" | Hydraulic |
| Input Shaft Spline Count | 36 |
| Total Turns Lock To Lock | 3.06 |
| Pressure Port Size | M14X1.50 |
| Inner Tie Rod Size | M14x1.50 |
| Input Shaft Diameter (in) | 0.68 |
| Return Port Size | M16X1.50 |
| Inner Tie Rod Length (In) | 10.1 |
| Hydraulic or Electric | Hydraulic |
| Distance Between Mounting Holes (in) | 11.5 |
| Prop 65 Warning | WARNING: Cancer and Reproductive Harm |
| Inner Tie Rod Length (mm) | 258.5 |
| Distance Between Back Mounting Holes (In) | N/A |
| Pressure Port Thread Size | M14X1.50 |
| Pressure Port Attachment Type | O-Ring |
| Distance Between Back Mounting Holes (mm) | N/A |
| Input Shaft Length (mm) | 29 |
| End To End Length | 1143.5 |
| Number of Mounting Holes | 3 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 3.06 |
| Return Port Attachment Type | O-Ring |
| Type | Hydraulic |
| Outer Tie Rods Included | No |
| Steering Input Shaft Diameter | 17.3 |
| Hydraulic, Electric, or Manual Steering | Hydraulic |
| Inner Tie Rods Included | Yes |
| Rack Length (in) | 45 |
| Installation Kit Included | Yes |
| Prop 65 Label | https://www.p65warnings.ca.gov/ |
| Prop 65 Y/N | Y |
| New Or Remanufactured | New |
| Input Shaft Diameter (mm) | 17.3 |
| Bushings Included | No |

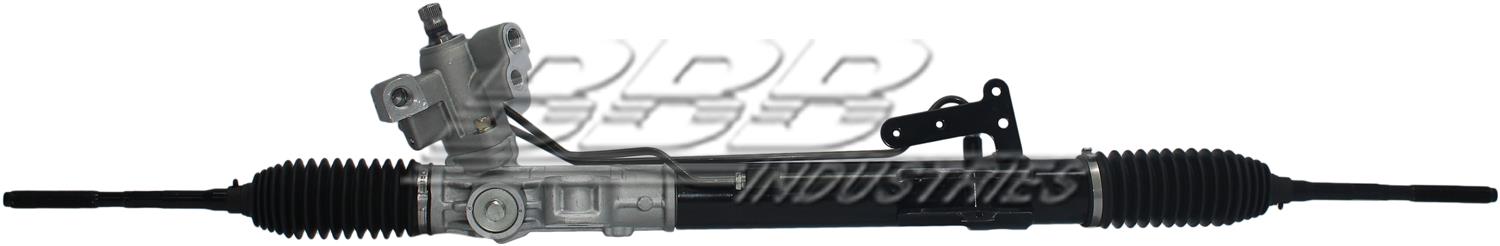

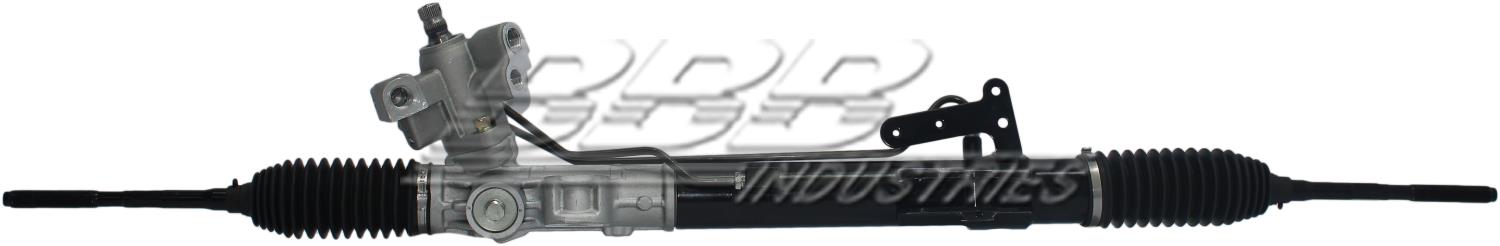

| Part Terminology | Rack and Pinion Assembly |
