| Minimum Clearance | 0.0015 |
| Package Alert | Single Piston |
| Weight w/o Pin Gram | 758 |

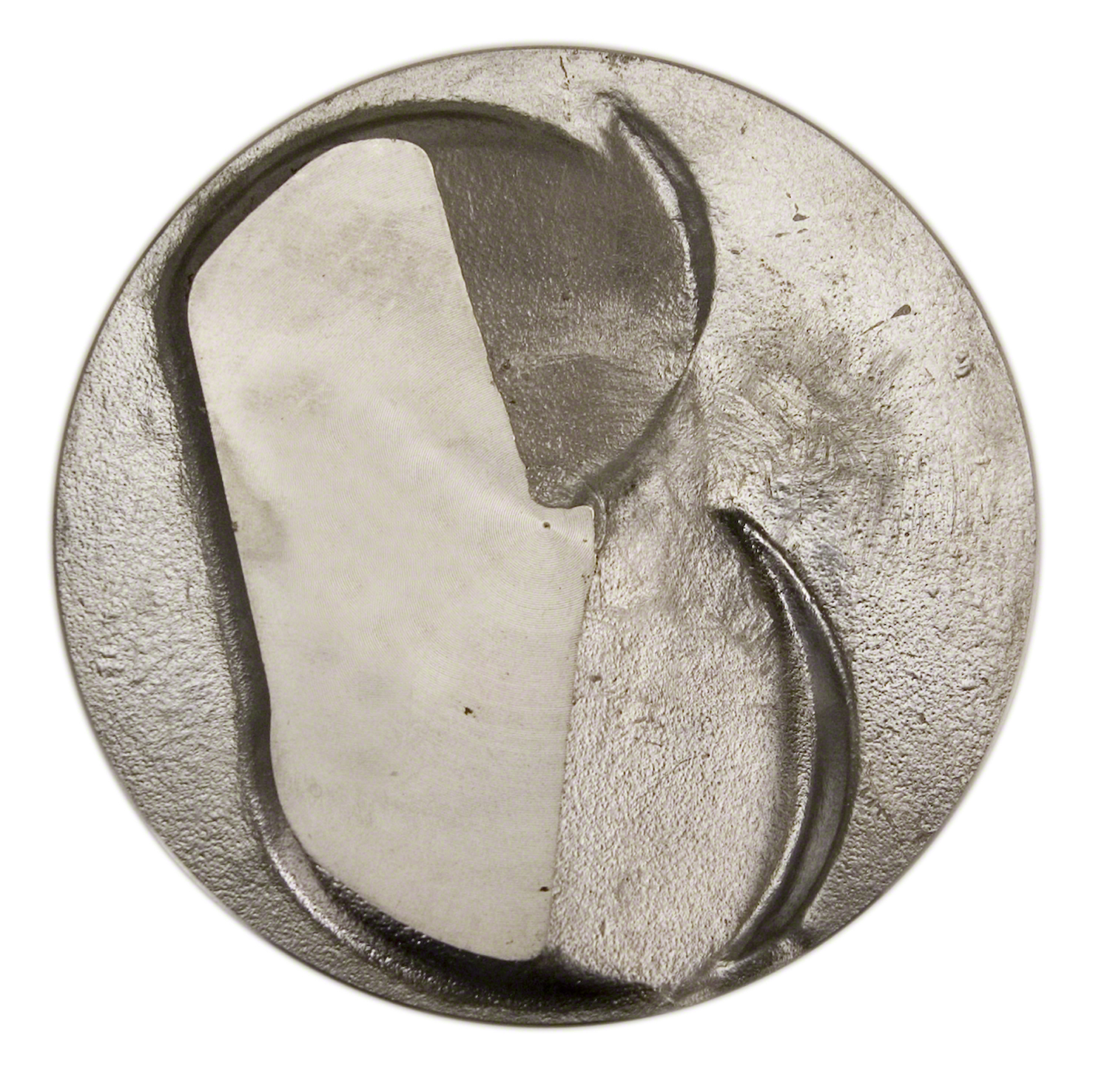

| Piston Head Type | 0.230 dome, 2 reliefs; DUROSHIELD skirt coated piston; 60 and 100 O/S have .210 dome |

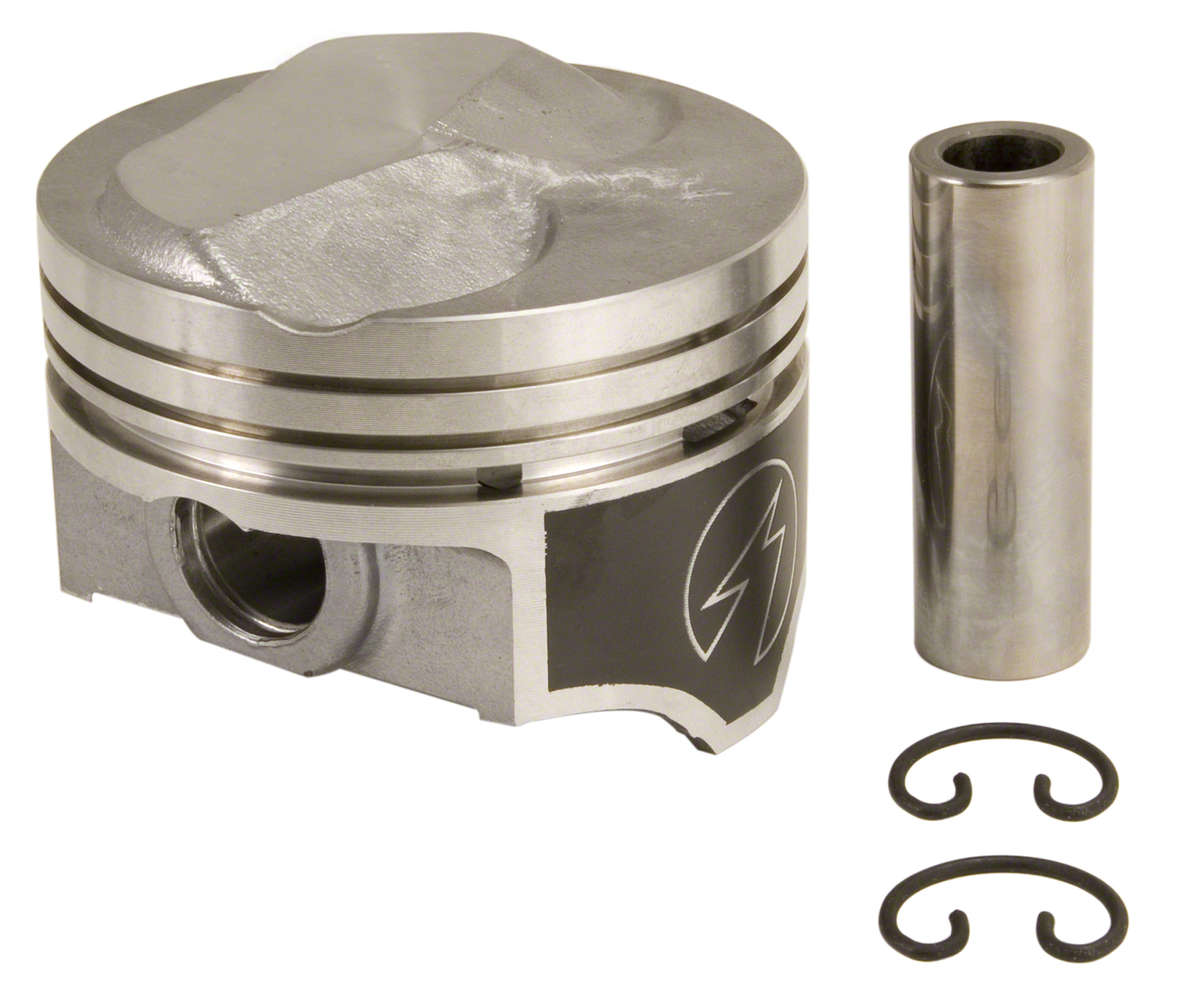

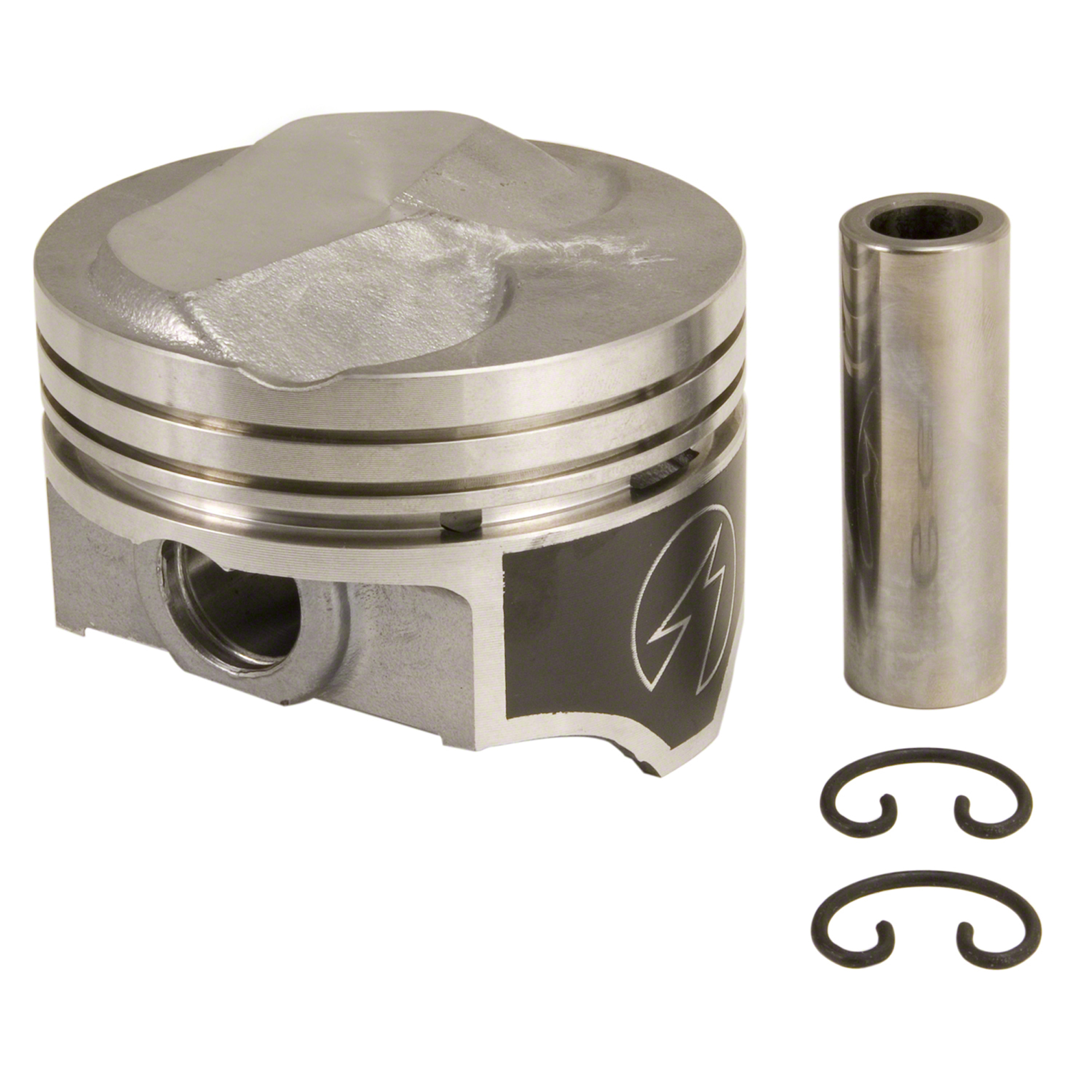

| What is in the box | In the box: 1 Speed-Pro piston, pin and lock rings (if required) |
| Oversize Inch | 0.1 |
| Consumer Warranty 1 | Due to the nature of performance applications, Speed-Pro parts are sold without any expressed warranty or any implied warranty of merchantability or fitness for a particular purpose. |
| Weight W Pin Gram | 933 |
| Pin Type | F |
| Consumer Warranty 2 | Federal-Mogul shall not, under any circumstances, be liable for any special, incidental or consequential damages which may arise and/or result from the sale, installation or use of these parts. |
| Ring 1 Qty | 2 |
| Pin Weight Gram | 175 |
| Dome Volume CC | 20 |
| Piston Pin Inside Diameter | 0.99 |
| Compression Distance | 1.64 |
| Ring Material | Hypereutectic |
| Ring 2 Width | 16-Mar |
| Cylinder Bore Diameter | 4.35 |
| Lock Ring | Included |
| Ring 2 Qty | 1 |
| Ring 1 Width | May-64 |
| Head Illustration | 203 |
| Part Terminology | Engine Piston |
