| Weight w/o Pin Gram | 609 |
| Groove 1 Width | 5/64 |
| Piston Head Type | Flat, 4 reliefs; DUROSHIELD skirt coated piston |
| Oversized | .020 |
| Weight W Pin Gram | 753 |
| Pin Type | P |
| Consumer Warranty 2 | Federal-Mogul shall not, under any circumstances, be liable for any special, incidental or consequential damages which may arise and/or result from the sale, installation or use of these parts. |
| Bore Diameter | 4.020 |
| Groove 2 Qty | 1 |
| Ring 1 Qty | 2 |
| Pin Weight Gram | 144 |
| Ring 2 Width | 16-Mar |
| Minimum Clearance | .0015 |
| What is in the box | In the box: engine set of 8 weight-matched Speed-Pro POWERFORGED pistons, pins and lock rings (if required) |
| Oversize Inch | .020 |
| Groove 2 Width | 3/16 |
| Dome Volume CC | -5.4 |
| Piston Pin Inside Diameter | 0.927 |
| Compression Distance | 1.671 |
| Ring Material | POWERFORGED® |
| Piston Material | POWERFORGED® |
| Lock Ring | N/R |
| Ring 2 Qty | 1 |
| Head Illustration | 26 |
| Ring 1 Width | May-64 |
| Groove 1 Qty | 2 |

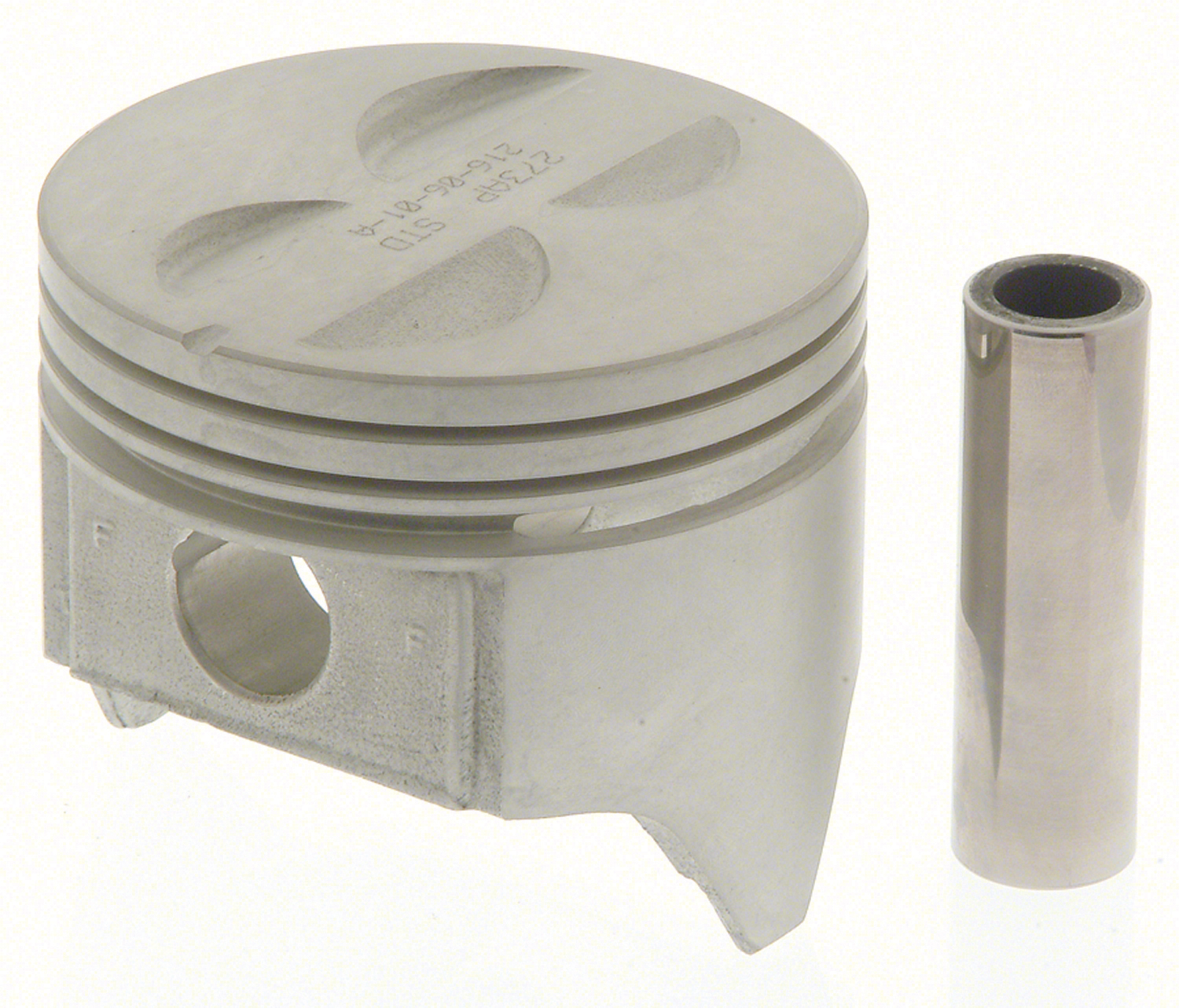

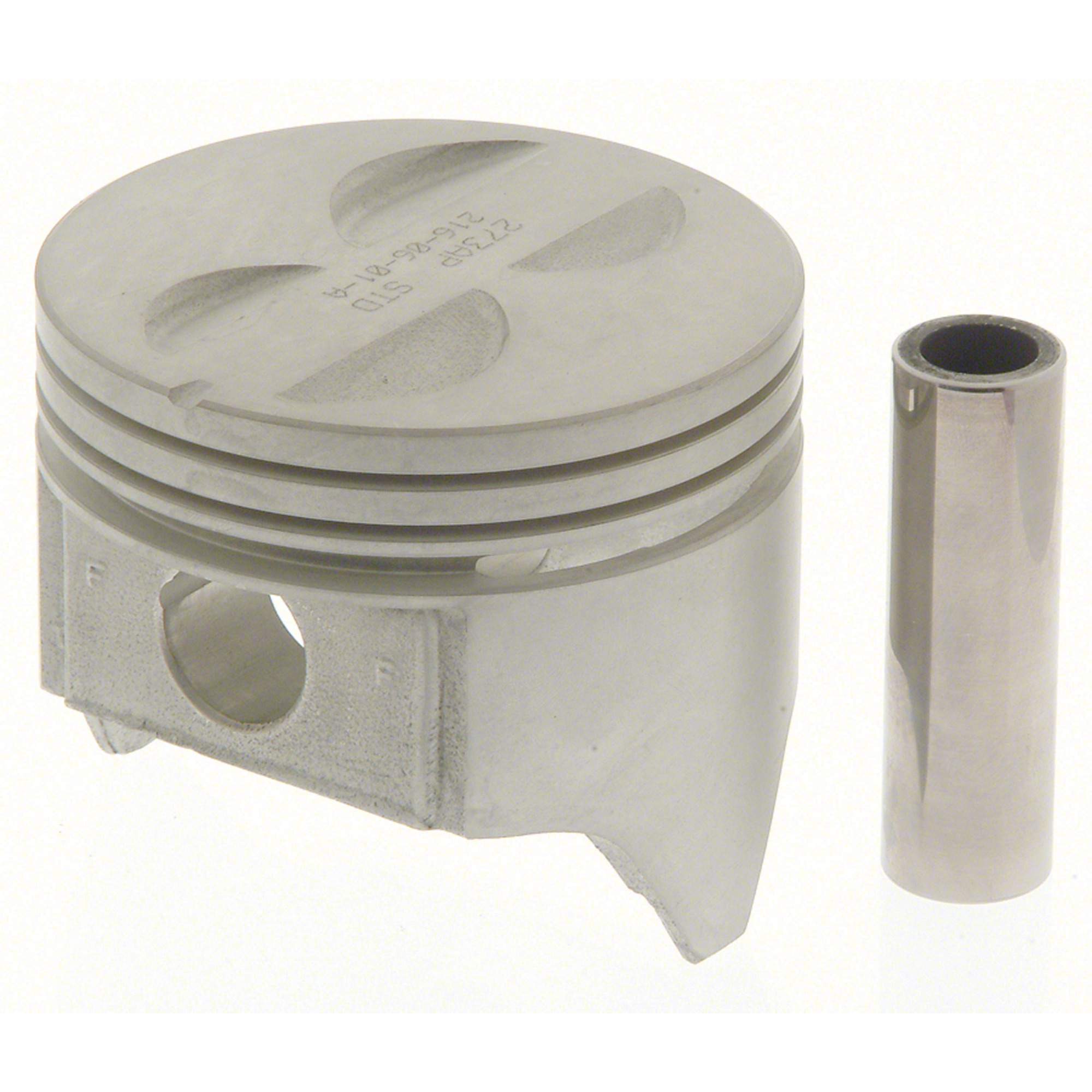

| Part Terminology | Engine Piston Set |
