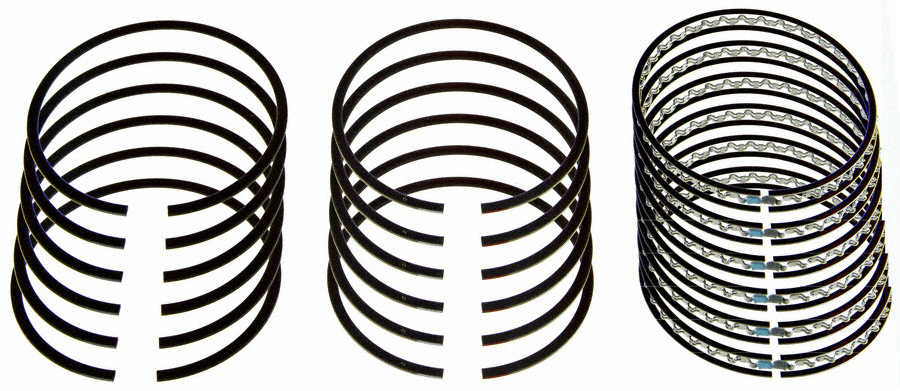

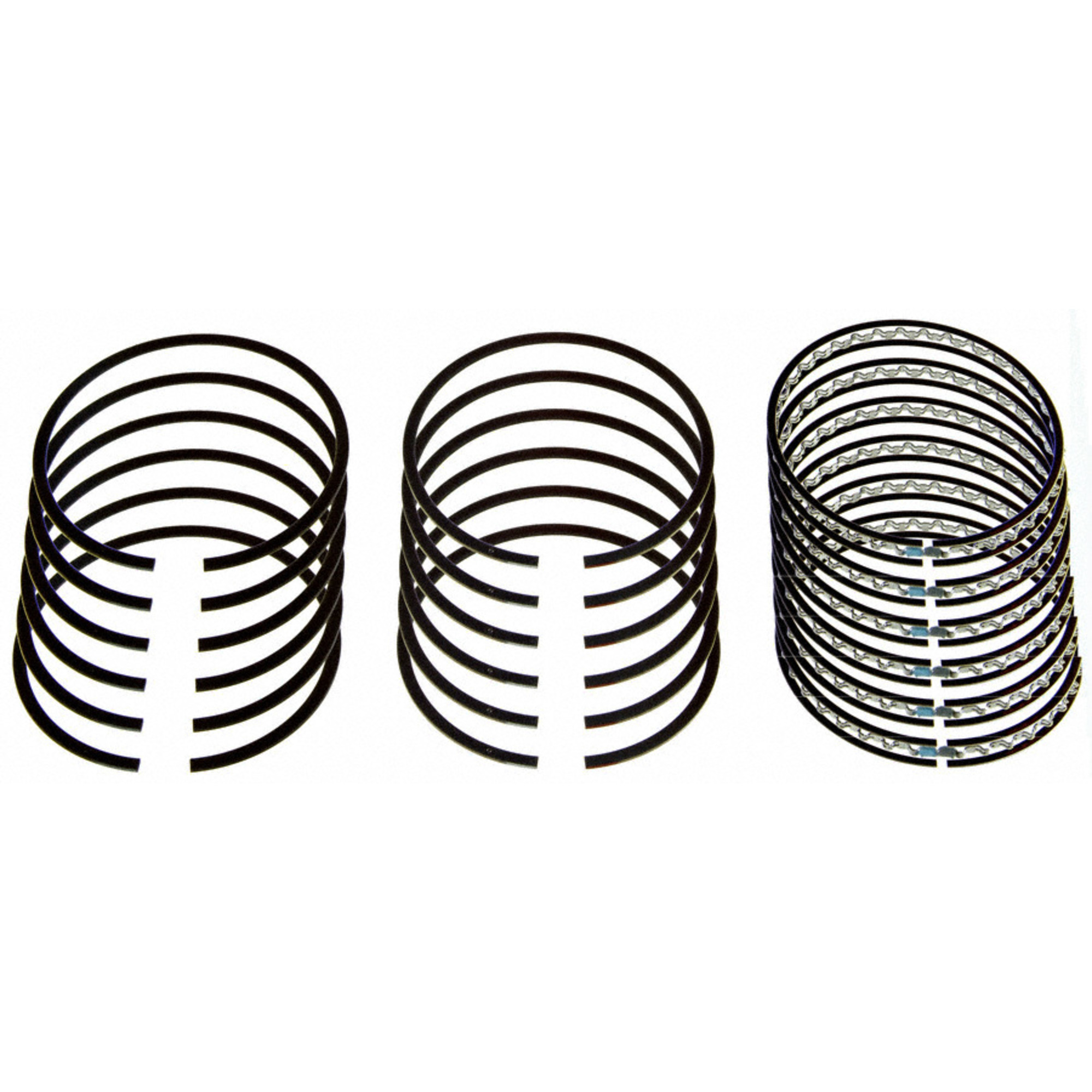

Engine piston ring set
Part # E-605K100MM | Line Code: SPR
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Bore Diameter 89.00
Outside Diameter 90.00
Oversized Amount 1.00
Package Alert Full set
Oversize MM 1.00
Ring Material Premium Moly
Cylinder Quantity 6
2nd Ring Face Design Reverse Torsional
File Fit (Y/N) N
Oil Ring Width (mm) 4.00
2nd Ring Width (mm) 1.50
Ring Set Groove Widths (mm) 1.5 x 1.5 x 4.0
Top Ring Width (mm) 1.50
Oil Ring Design 3 Piece Flex Vent
Top Ring Face Design Barrel Face
Top Ring Material Steel w/Moly
Oversize (mm) 1.00
Bore Size (mm) 89.00
Outside Diameter (MM) 90.00
2nd Ring Material Grey Iron
Part Terminology Engine Piston Ring Set

Features & Benefits
expand_more
Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.

Application Summary
expand_more

1995-1988 GM V6 189CI 3.1L Chevrolet; 1995-1990 GMT L/D V6 189CI 3.1L Chevrolet; 1990-1989 GM V6 189CI 3.1L Turbo
