| Pin Diameter (Inch) | 0.8661 |
| Minimum Clearance | 0.01mm @ bottom of skirt |

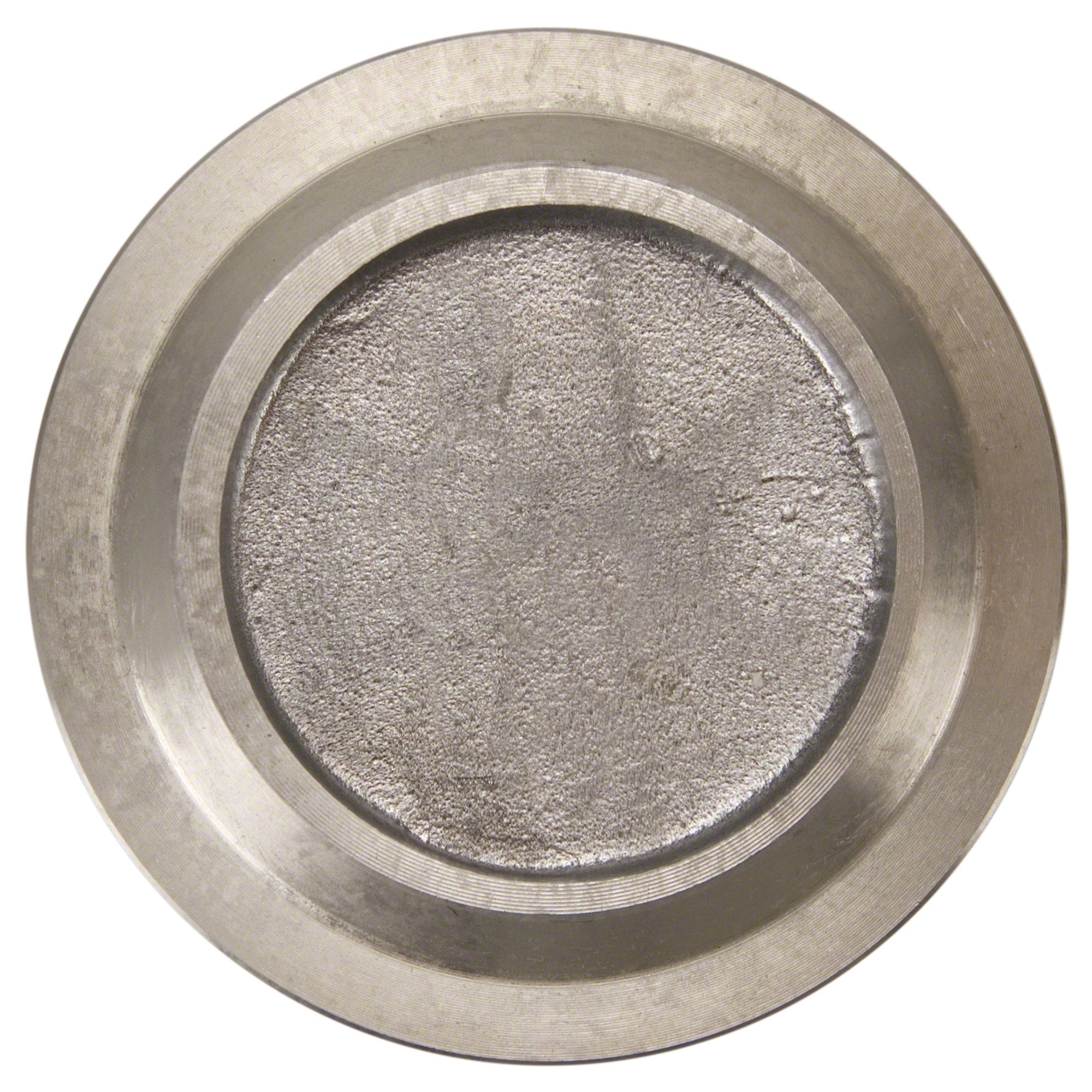

| Piston Head Type | Recessed Head 5.00mm deep w/dome |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 3.6220 |
| Pin Offset (MM) | 1 |
| Bore Diameter | 3.6220 |
| Ring 3 Width | 4.00mm |
| Ring 3 Qty | 1 |
| Note 1 | Standard Size |
| Ring 1 Qty | 1 |
| Piston Pin Inside Diameter | 22 |
| Pin Diameter (MM) | 22 |
| Compression Distance | 39.0mm plus 6.50mm dome |
| Ring Material | Cast |
| Standard Size | Standard |
| Ring 2 Width | 2.50mm |
| Head Type | Recessed Head 5.00mm deep w/dome |
| Bore (MM) | 92.0000 |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.0394 |
| Ring 1 Width | 2.00mm |
| Head Illustration | 69 |

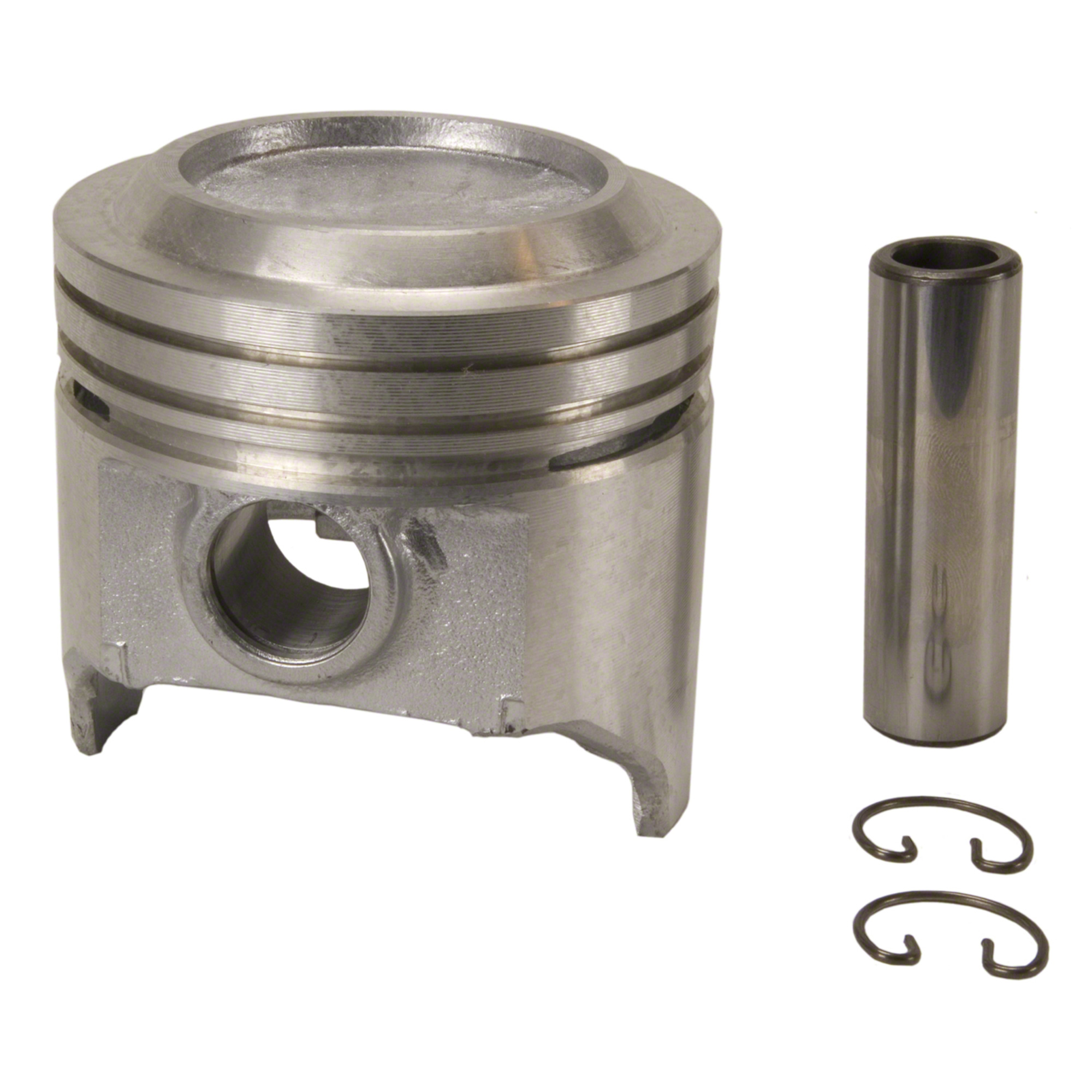

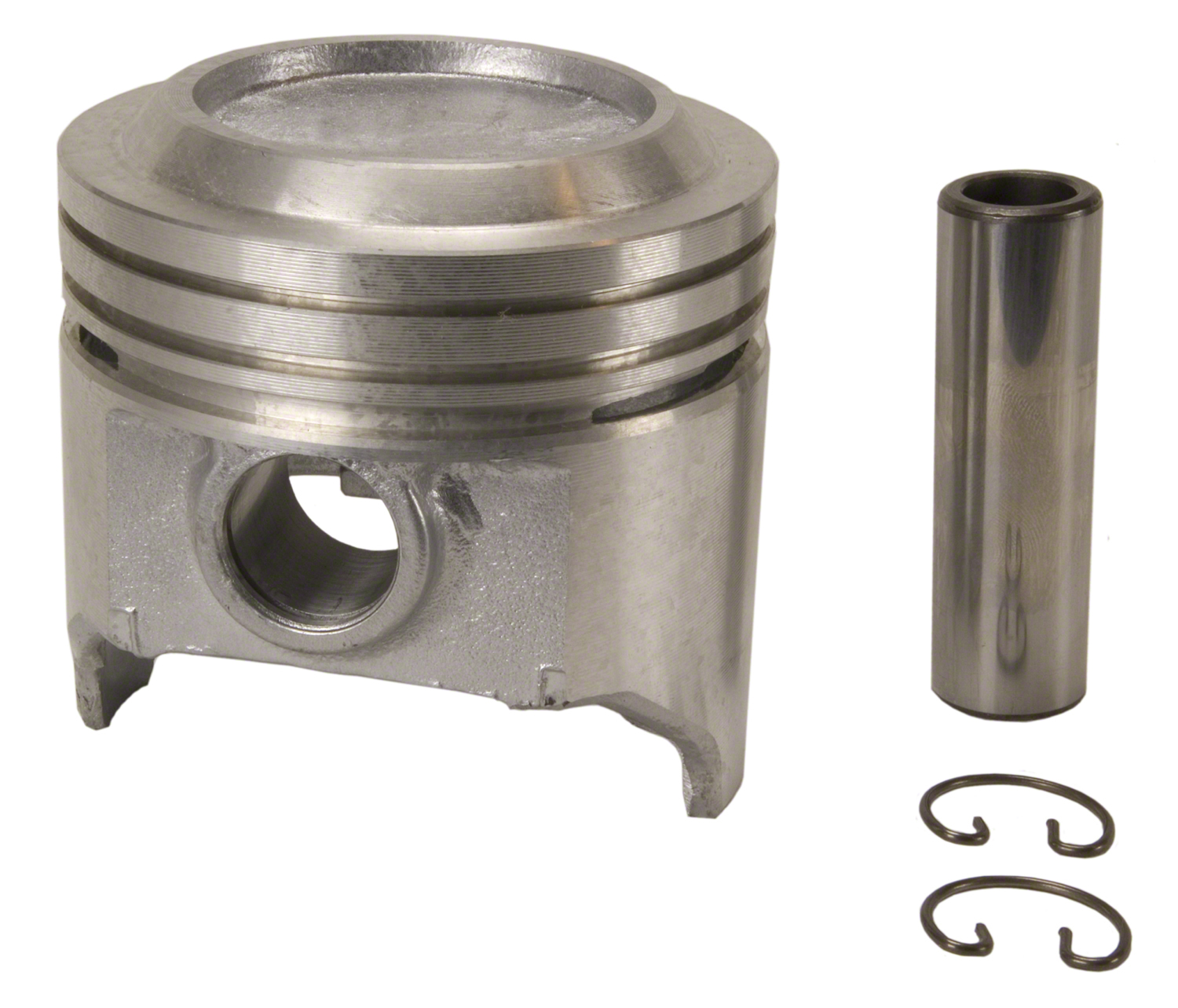

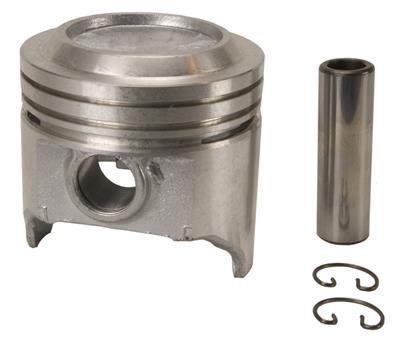

| Part Terminology | Engine Piston Set |
