| Overall Height | 48.0 |
| Overall Height (in) | 1.89 In |
| Outer Diameter (in) | 12.402 In |
| Discard Thickness | 20.0 |
| Heavy Duty Supplier | Yes |
| Center Hole Diameter (mm) | 67.5 mm |
| Center Hole Diameter Inches | 2.657 |
| Bolt Circle Diameter MM | 120 |
| Minimum Thickness MM | 20 |
| Bolt Circle Diameter Inches | 4.724 |
| Center Hole Diameter (In) | 2.657 In |
| Minimum Thickness (IN) | 0.787 In |
| Depth Of Braking Surface (In) | 1.457 In |
| Outer Diameter Inches | 12.402 |
| Overall Height MM | 48 |
| Depth Of Braking Surface (mm) | 37.01 mm |
| Bolt Holes | 6 |
| Mounting Bolt Hole Quantity | 6 |
| Drum Diameter (In) | 7.89 In |
| Bolt Circle Diameter (mm) | 120 mm |
| Rotor Type | Vented |
| Overall Height (MM) | 48 mm |
| Solid Or Vented Type Rotor | Vented |
| Outer diameter (mm) | 315 mm |
| Outer Diameter MM | 315 |
| Minimum Thickness Inches | 0.787 |
| Center Hole Diameter MM | 67.5 |
| New Thickness Inches | 0.906 |
| Minimum Thickness (mm) | 20 mm |
| California Proposition 65 | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| New Thickness (In) | 0.906 In |
| Bolt Circle Diameter (in) | 4.724 In |
| Outside Diameter | 315.0 |
| VIO | 569029 |
| Nominal Thickness | 23.0 |
| New Thickness (mm) | 23 mm |
| Overall Height Inches | 1.89 |
| New Thickness MM | 23 |

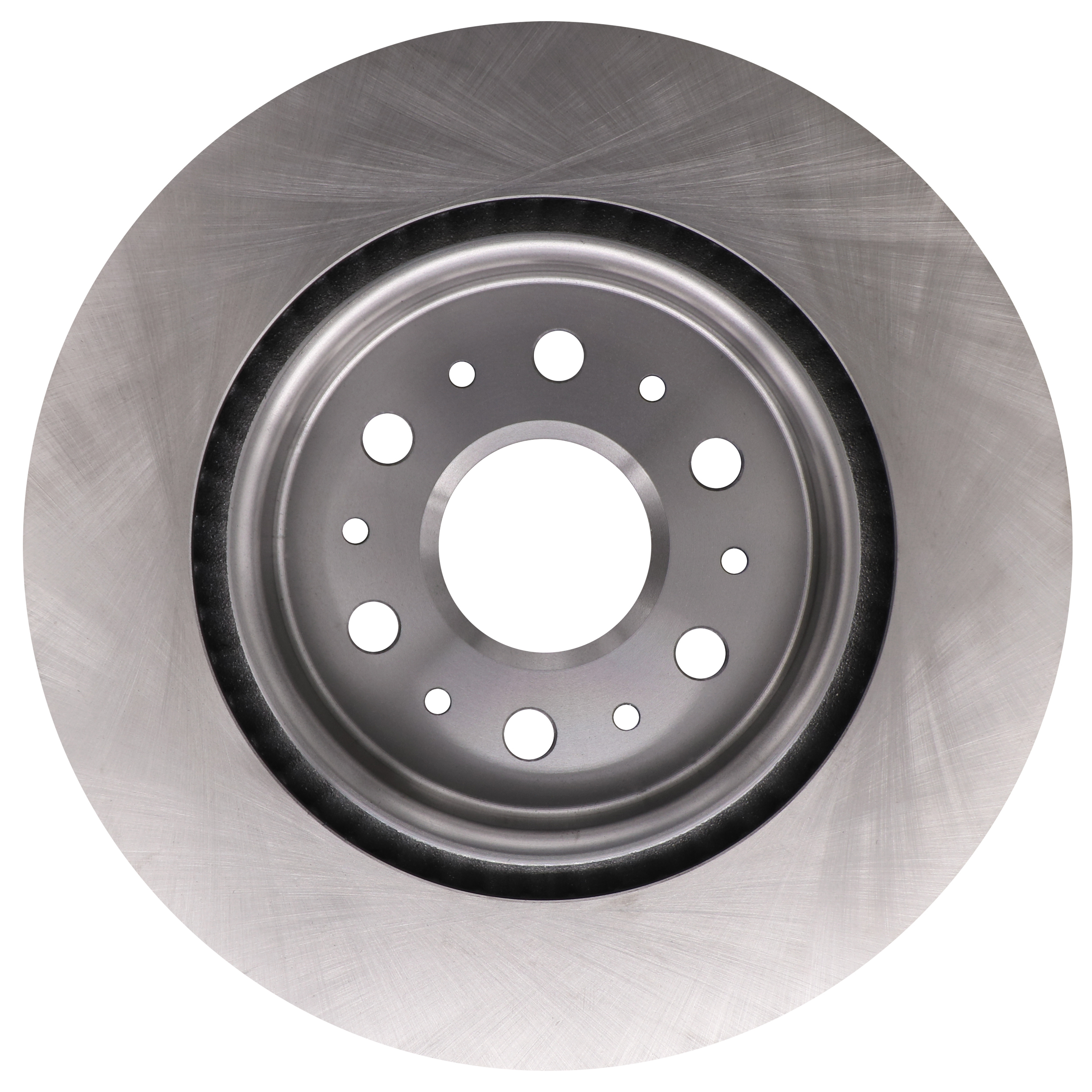

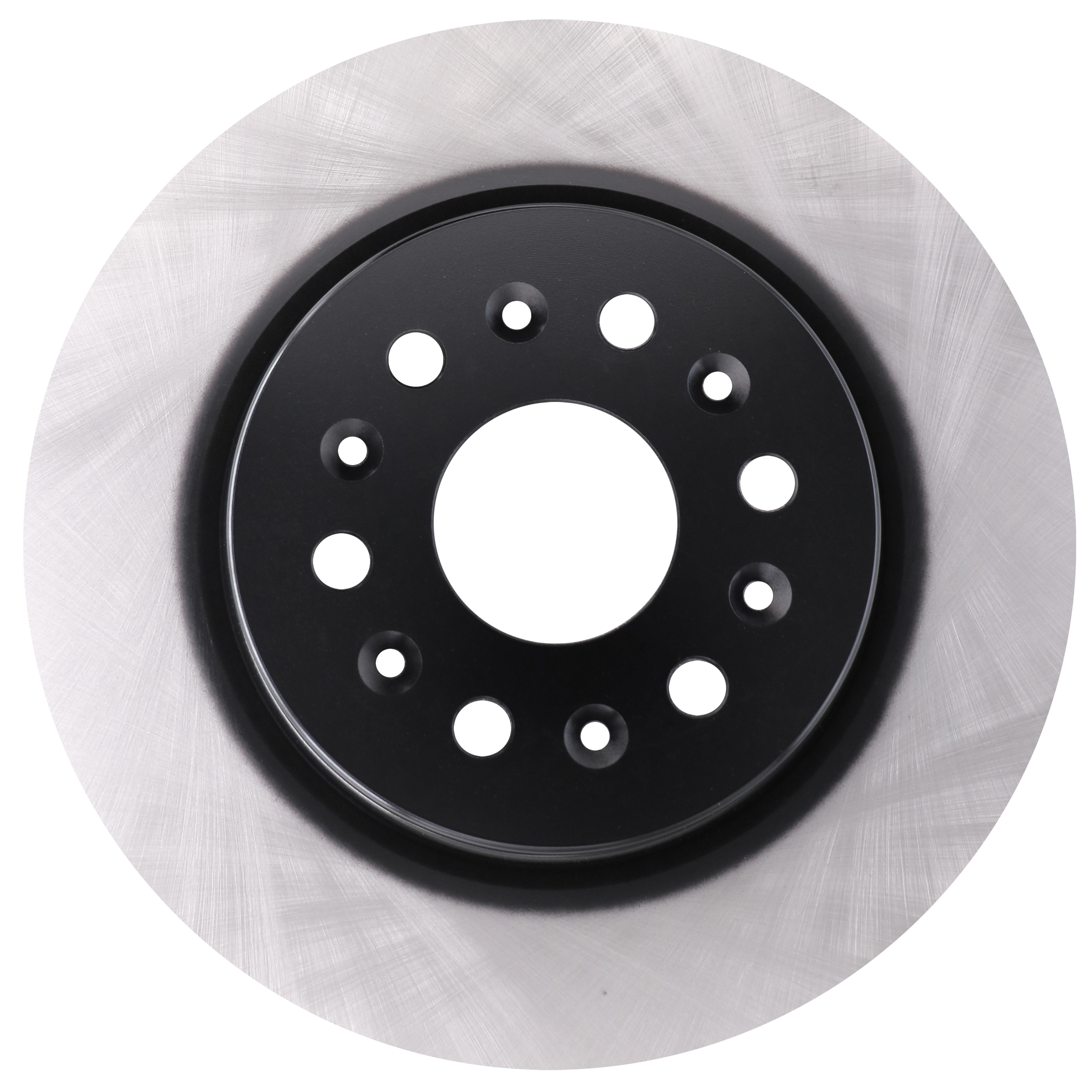

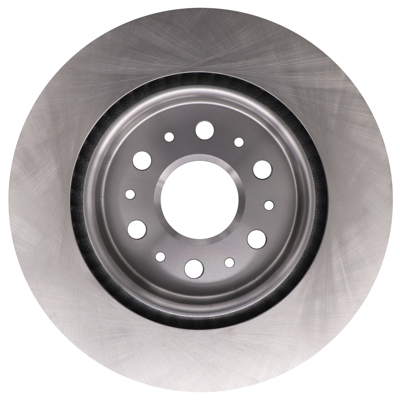

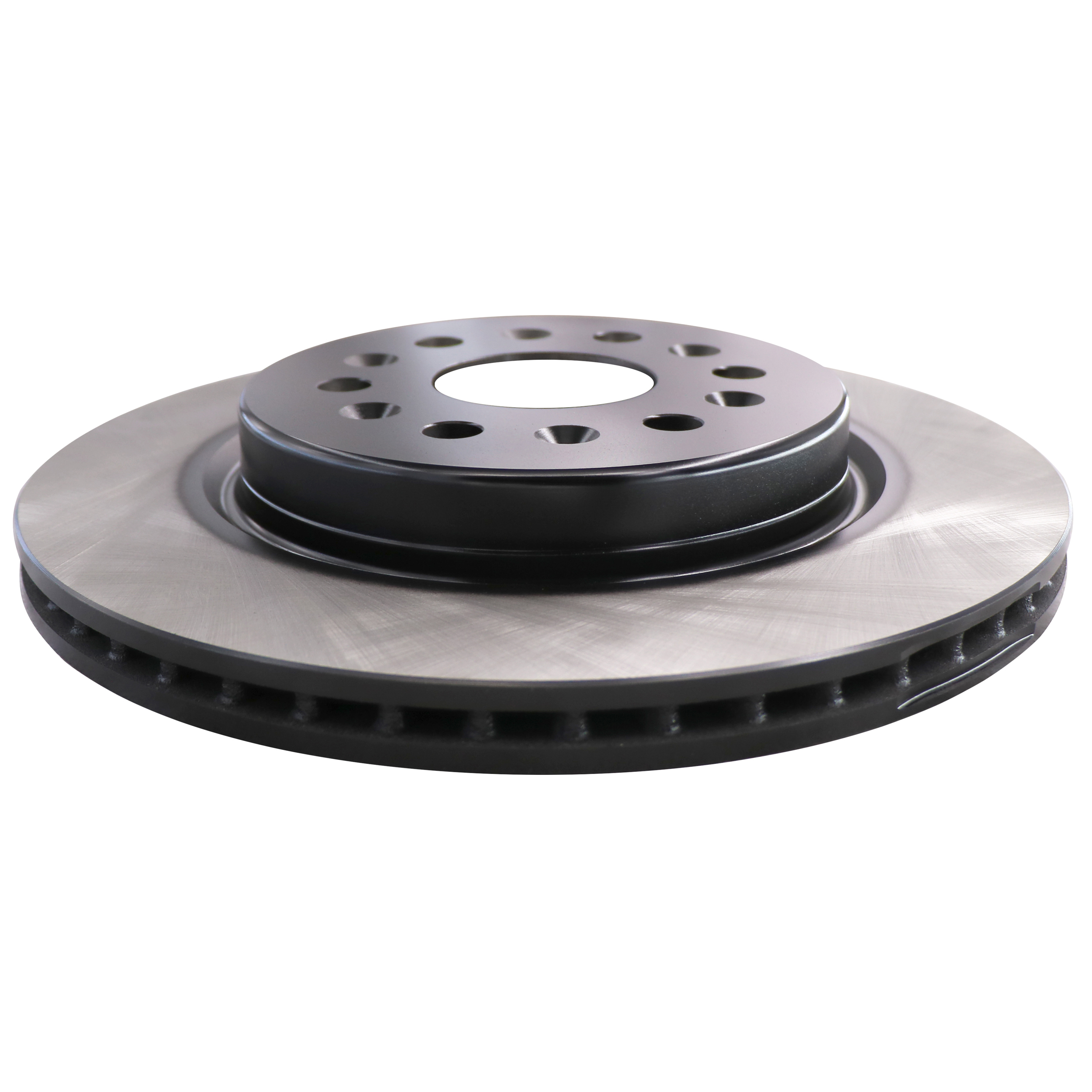

| Part Terminology | Disc Brake Rotor |
