| Overall Height | 102.6 |
| Overall Height (in) | 4.039 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 12.961 In |
| Discard Thickness | 16.0 |
| Heavy Duty Supplier | Yes |
| Center Hole Diameter (mm) | 110 mm |
| Center Hole Diameter (In) | 4.331 In |
| Minimum Thickness (IN) | 0.63 In |
| Depth Of Braking Surface (In) | 2.008 In |
| Depth Of Braking Surface (mm) | 51 mm |
| Bolt Holes | 5 |
| Mounting Bolt Hole Quantity | 5 |
| Drum Diameter (In) | 9 In |
| Bolt Circle Diameter (mm) | 150 mm |
| Overall Height (MM) | 102.6 mm |
| Solid Or Vented Type Rotor | Vented |
| Outer diameter (mm) | 329.2 mm |
| Minimum Thickness (mm) | 16 mm |
| New Thickness (In) | 0.709 In |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 5.906 In |
| Outside Diameter | 329.2 |
| Nominal Thickness | 0.709 |
| New Thickness (mm) | 18 mm |

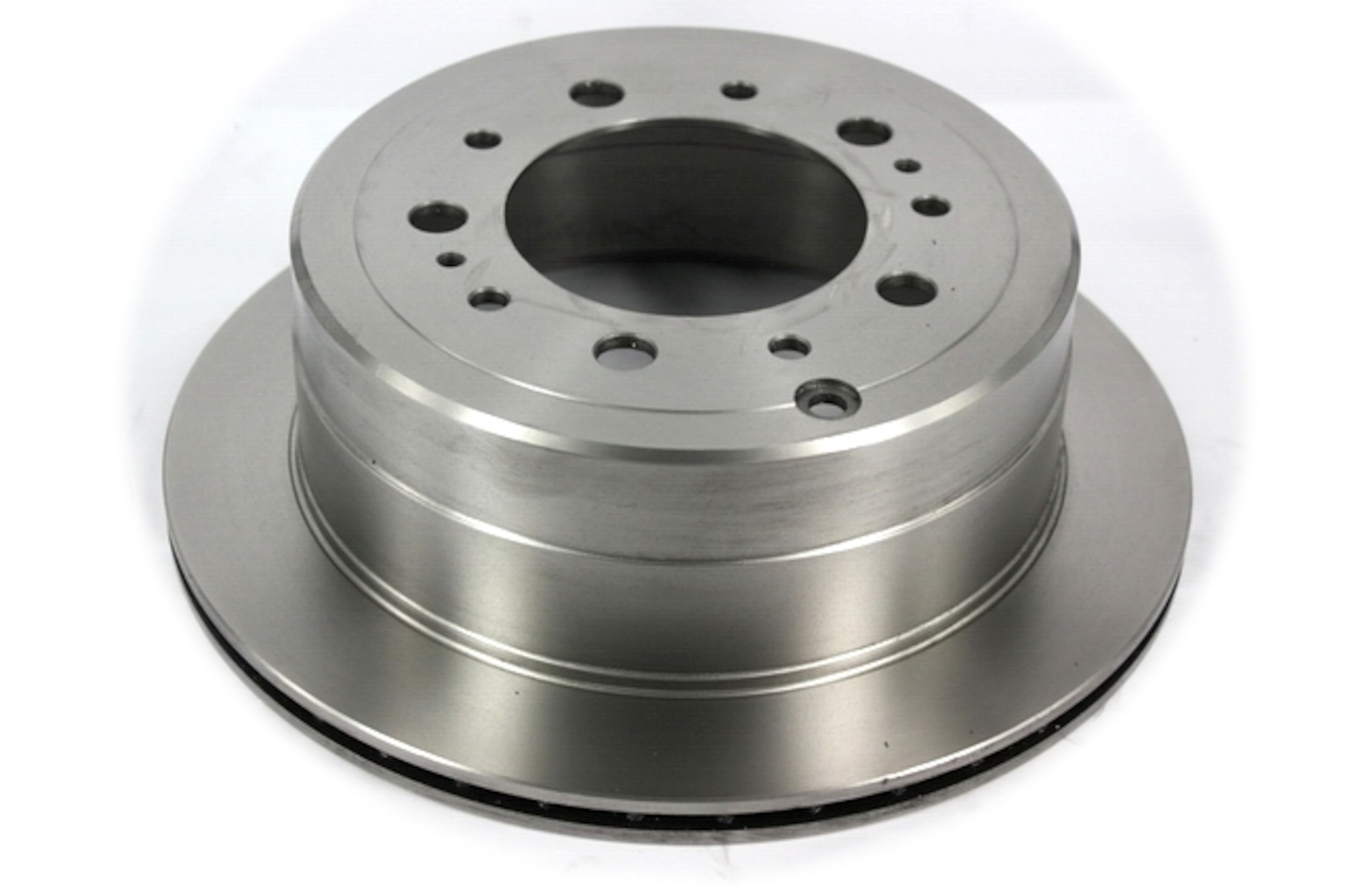

| Part Terminology | Disc Brake Rotor |
