| Overall Height | 78.0 |
| Overall Height (in) | 3.071 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 11.654 In |
| Overall Height (MM) | 78 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 10.059 In |
| Outer diameter (mm) | 296 mm |
| Center Hole Diameter (mm) | 72.1 mm |
| Nominal Drum Diameter | 10.0 |
| Center Hole Diameter (In) | 2.839 In |
| Depth | 61.3 |
| Maximum Drum Diameter (mm) | 255.5 mm |
| Drum Diameter (mm) | 254 mm |
| Depth Of Braking Surface (In) | 2.413 In |
| Bolt Hole Quantity | 5 |
| Depth Of Braking Surface (mm) | 61.3 mm |
| Bolt Holes | 5 |
| Maximum Brake Diameter (Discard) | 10.059 |
| Bolt Circle Diameter (in) | 4.5 In |
| Outside Diameter | 296.0 |
| Drum Diameter (In) | 10 In |
| Bolt Circle Diameter (mm) | 114.3 mm |

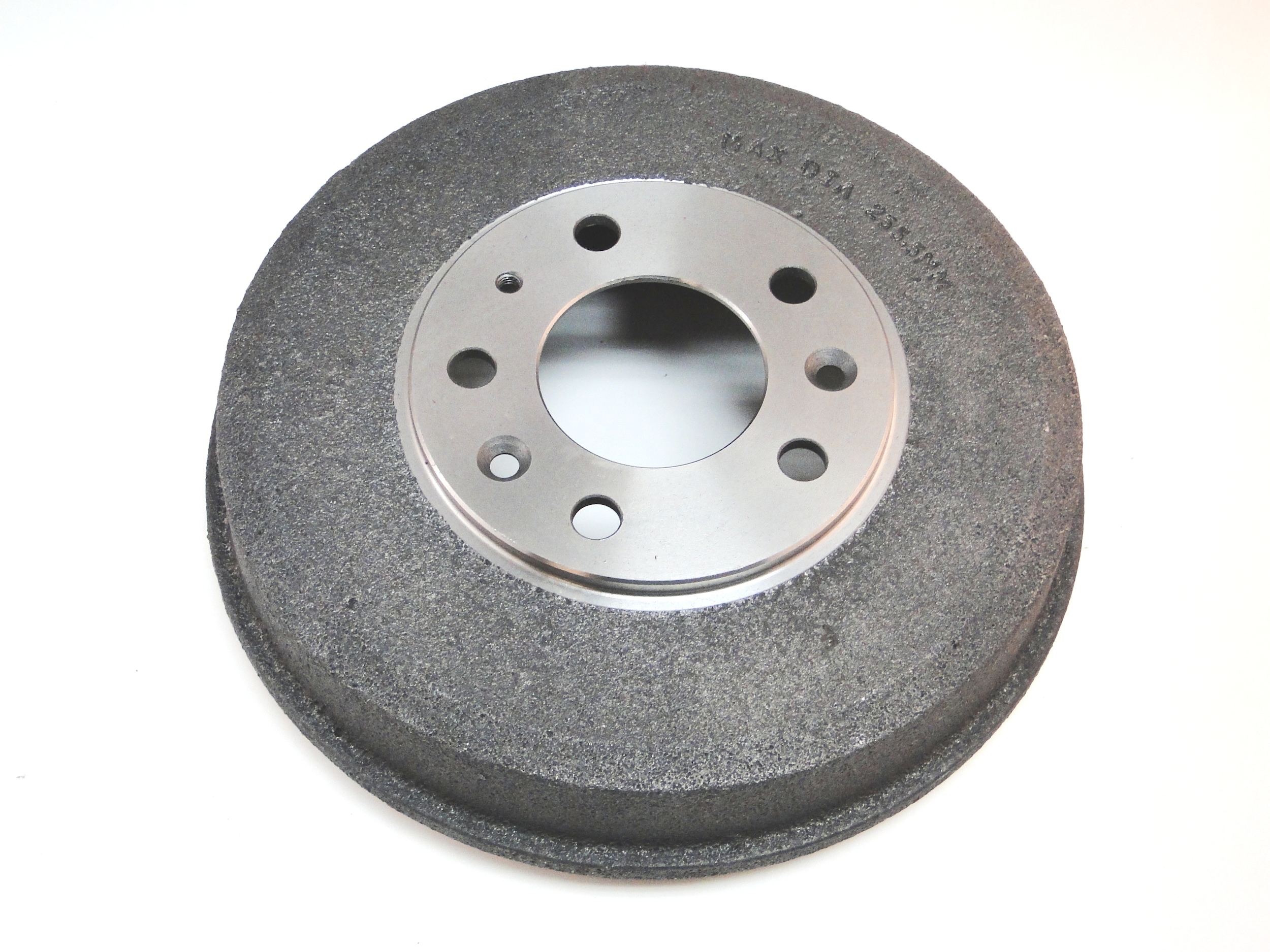

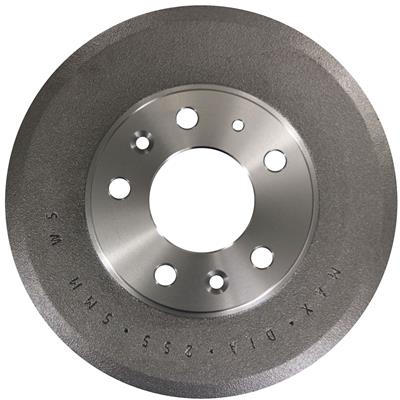

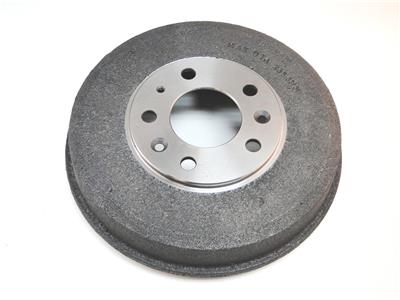

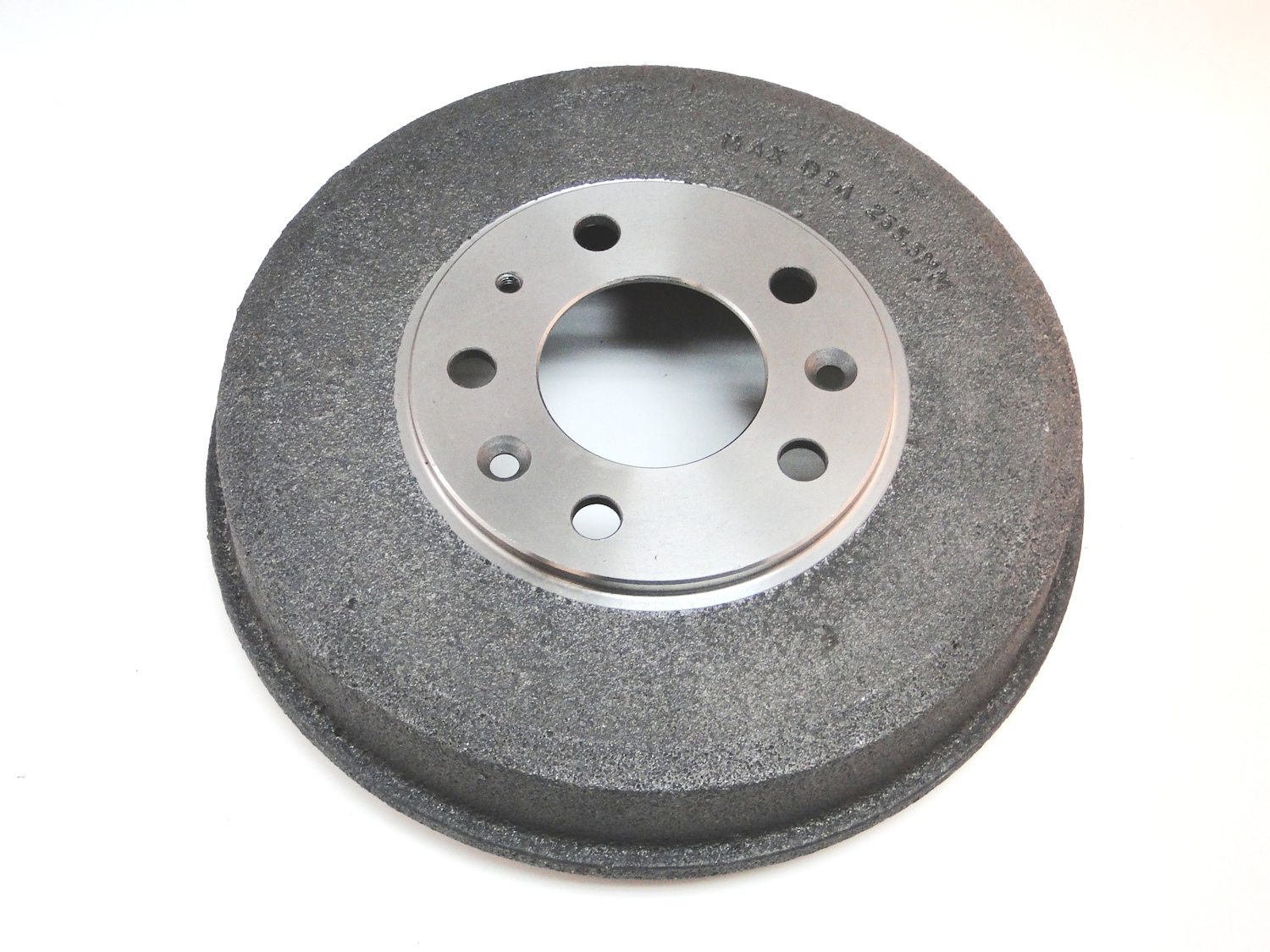

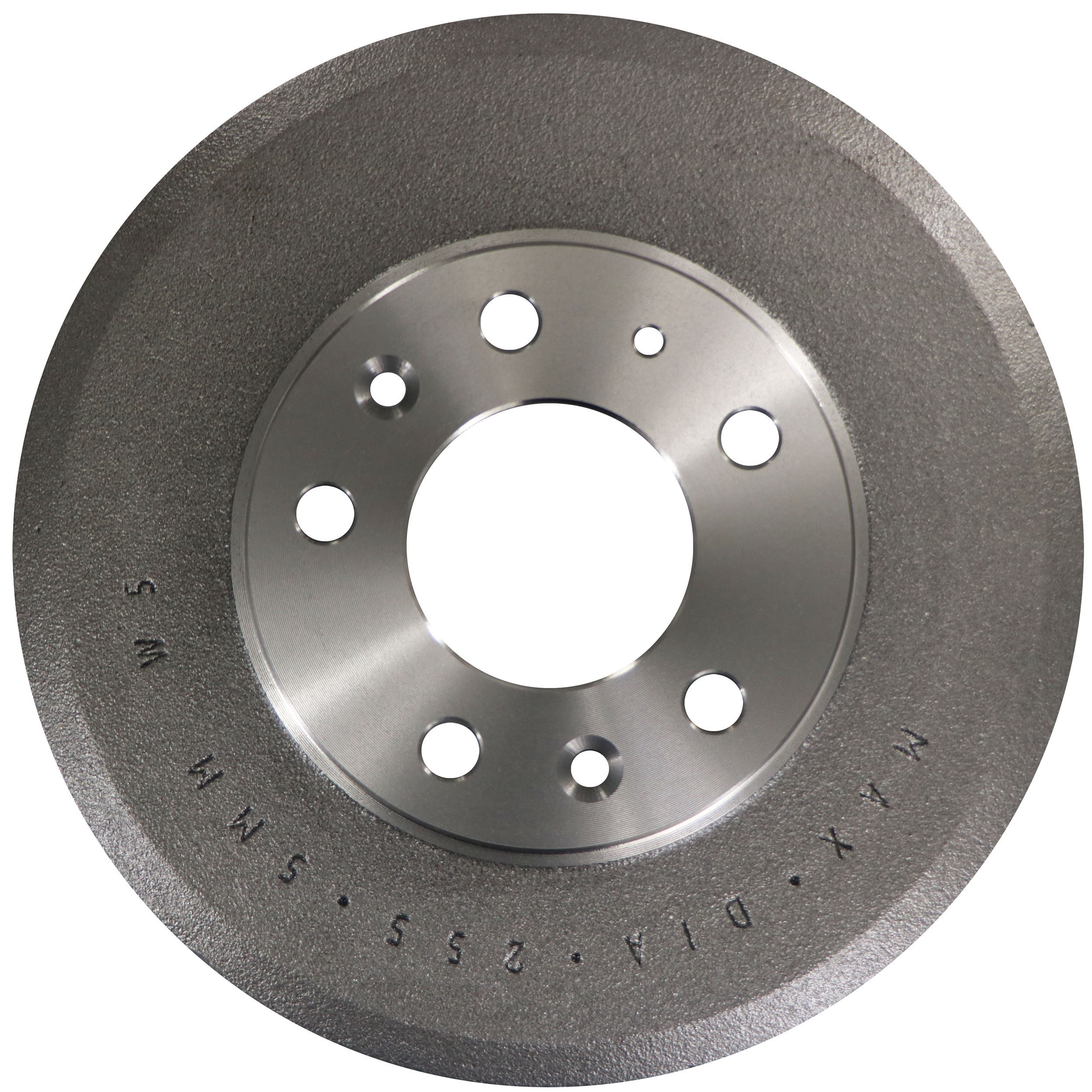

| Part Terminology | Brake Drum |
