| Overall Height | 4.693 |
| Overall Height (in) | 4.693 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 14.055 In |
| Overall Height (MM) | 119.2 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 12.091 In |
| Outer diameter (mm) | 357 mm |
| Center Hole Diameter (mm) | 87.6 mm |
| Nominal Drum Diameter | 12.0 |
| Center Hole Diameter (In) | 3.449 In |
| Depth | 3.0 |
| Maximum Drum Diameter (mm) | 307.1 mm |
| Drum Diameter (mm) | 304.8 mm |
| Depth Of Braking Surface (In) | 3 In |
| Bolt Hole Quantity | 7 |
| Depth Of Braking Surface (mm) | 76.2 mm |
| Bolt Holes | 7 |
| Maximum Brake Diameter (Discard) | 307.1 |
| Bolt Circle Diameter (in) | 5.906 In |
| Outside Diameter | 357.0 |
| Drum Diameter (In) | 12 In |
| Bolt Circle Diameter (mm) | 150 mm |

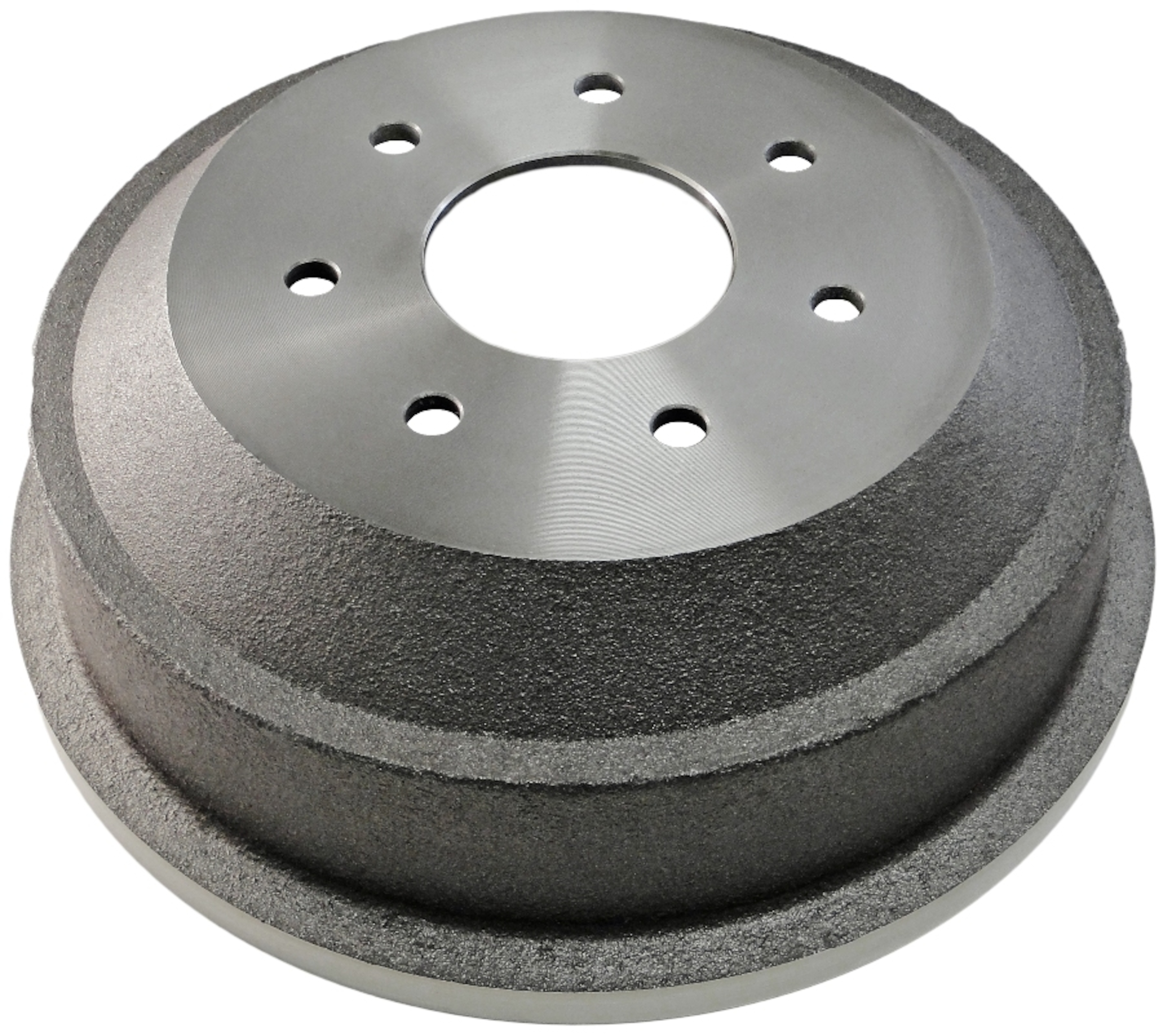

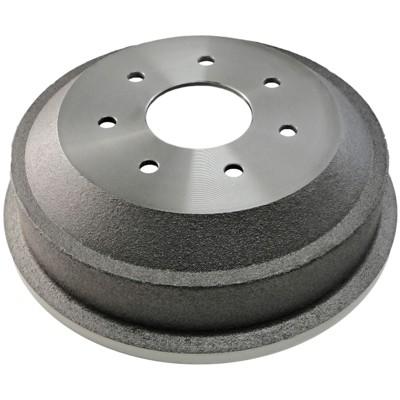

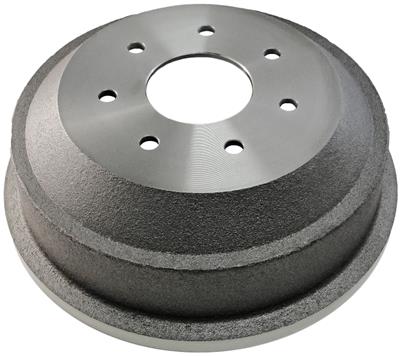

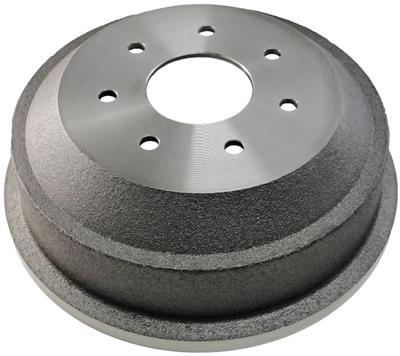

| Part Terminology | Brake Drum |
