In Store Pickup Available
| Overall Height | 6.72 |
| Overall Height (in) | 6.72 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 12.5 In |
| Discard Thickness | 30.86 |
| Overall Height (MM) | 170.7 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 317.5 mm |
| Center Hole Diameter (mm) | 73.355 mm |
| Rotor Outside Diameter | 12.5 |
| Center Hole Diameter (In) | 2.888 In |
| Minimum Thickness (IN) | 1.22 In |
| Minimum Thickness (mm) | 30.988 mm |
| New Thickness (In) | 1.28 In |
| Bolt Holes | 8 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 6.5 In |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 32.7 |
| Bolt Circle Diameter (mm) | 165.1 mm |
| New Thickness (mm) | 32.7 mm |

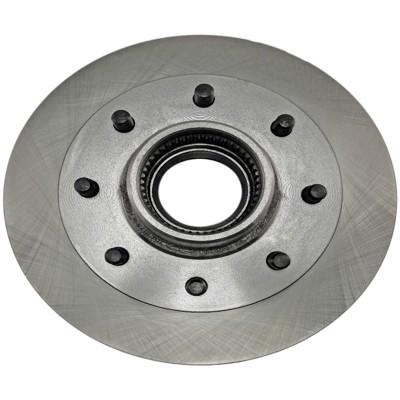

| Part Terminology | Disc Brake Rotor and Hub Assembly |
