| Overall Height | 143.6 |
| Overall Height (in) | 5.654 In |
| ABS Sensor Ring Included | Yes |
| Outer Diameter (in) | 13.031 In |
| Discard Thickness | 1.417 |
| Overall Height (MM) | 143.6 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 331 mm |
| Center Hole Diameter (mm) | 73.355 mm |
| Rotor Outside Diameter | 331.0 |
| Center Hole Diameter (In) | 2.888 In |
| Minimum Thickness (IN) | 1.417 In |
| Minimum Thickness (mm) | 36 mm |
| New Thickness (In) | 1.496 In |
| Bolt Holes | 8 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 6.693 In |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 38.0 |
| Bolt Circle Diameter (mm) | 170 mm |
| New Thickness (mm) | 38 mm |

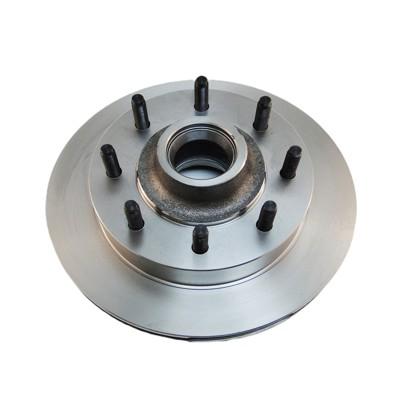

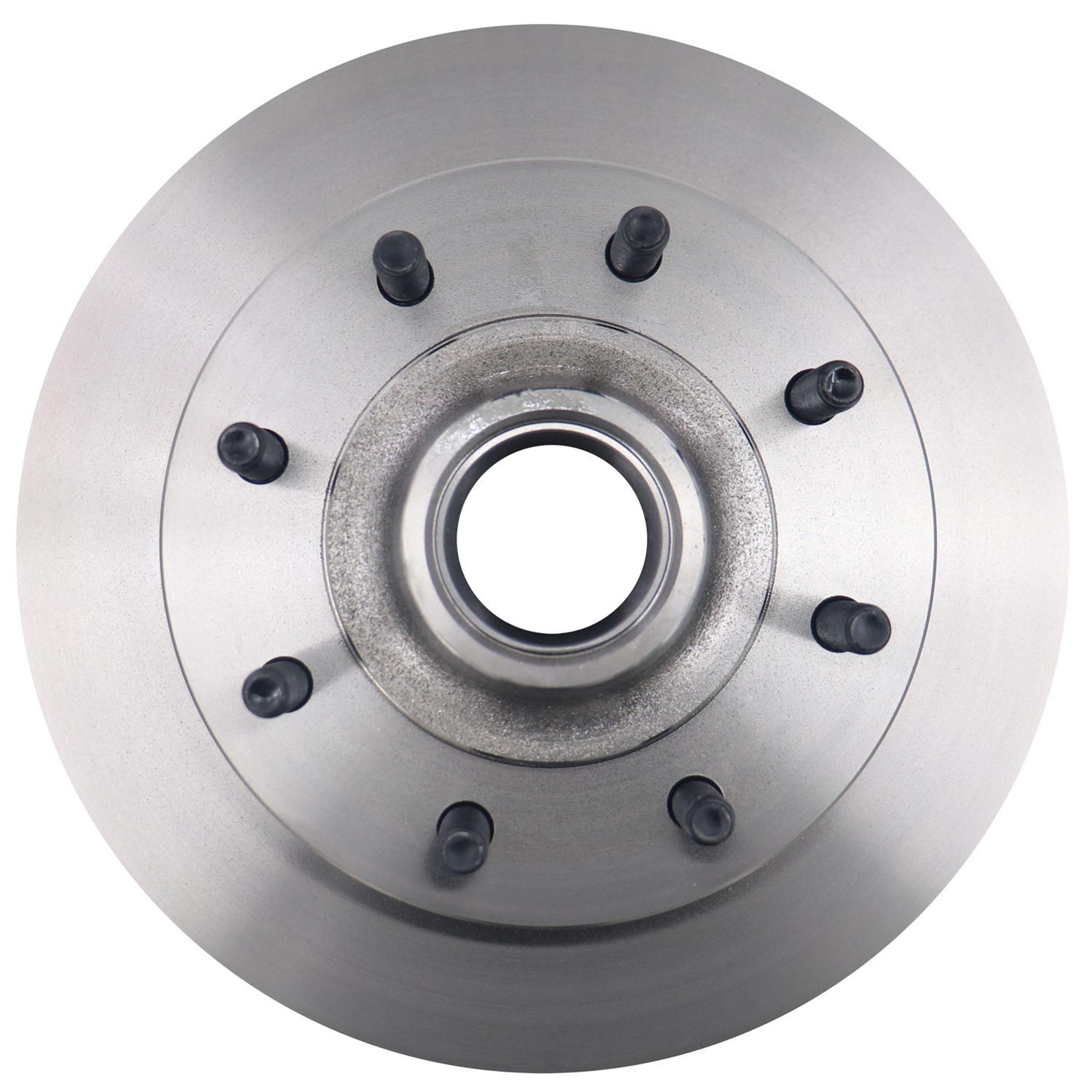

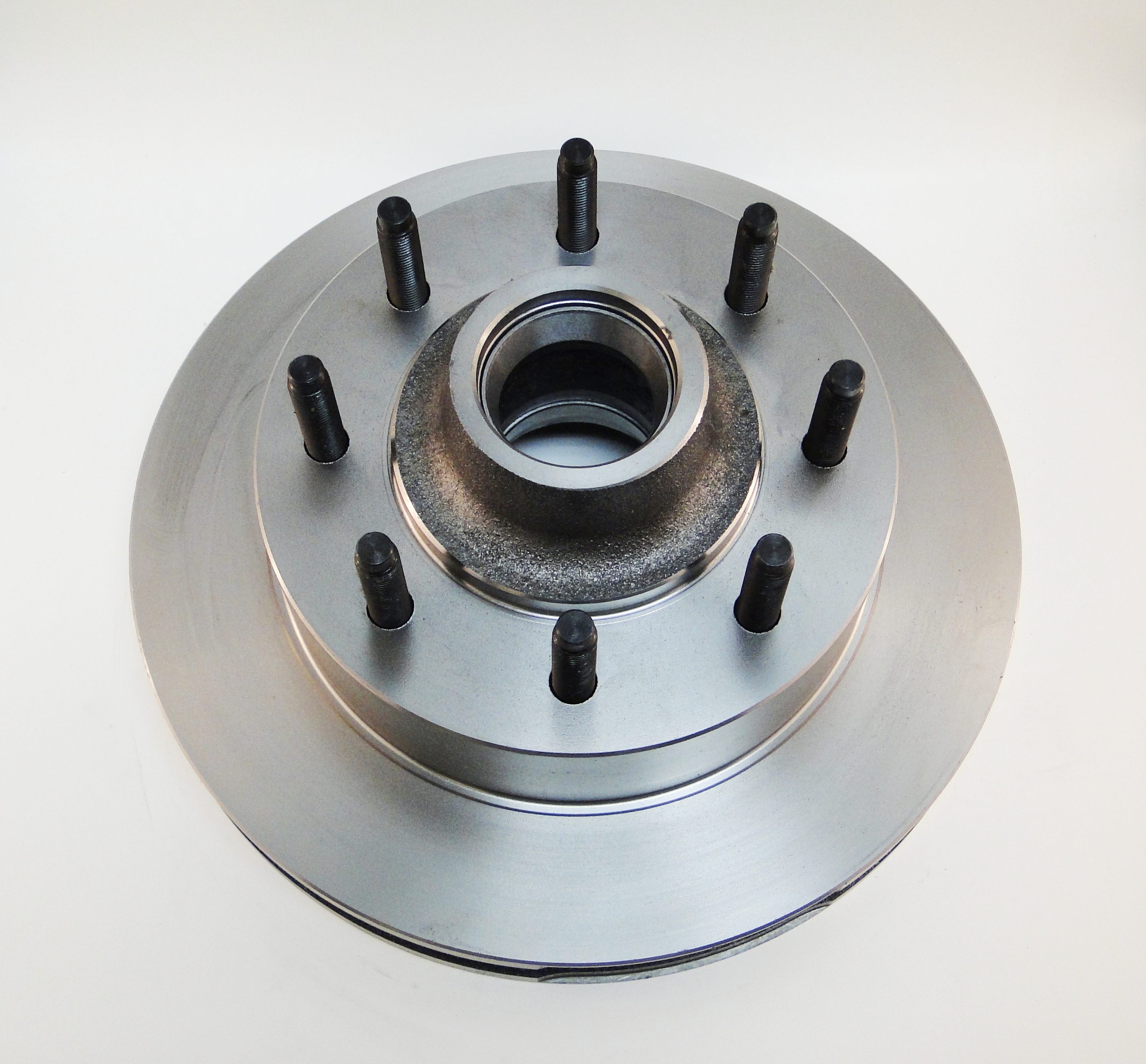

| Part Terminology | Disc Brake Rotor and Hub Assembly |
