| Overall Height | 103.7 |
| Overall Height (in) | 4.083 In |
| ABS Sensor Ring Included | Yes |
| Outer Diameter (in) | 12.126 In |
| Discard Thickness | 24.7 |
| Overall Height (MM) | 103.7 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 308 mm |
| Center Hole Diameter (mm) | 62.898 mm |
| Rotor Outside Diameter | 308.0 |
| Center Hole Diameter (In) | 2.476 In |
| Minimum Thickness (IN) | 0.972 In |
| Minimum Thickness (mm) | 24.7 mm |
| New Thickness (In) | 1.033 In |
| Bolt Holes | 5 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 5.315 In |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.033 |
| Bolt Circle Diameter (mm) | 135 mm |
| New Thickness (mm) | 26.25 mm |

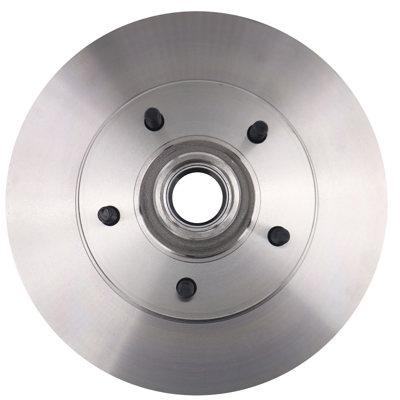

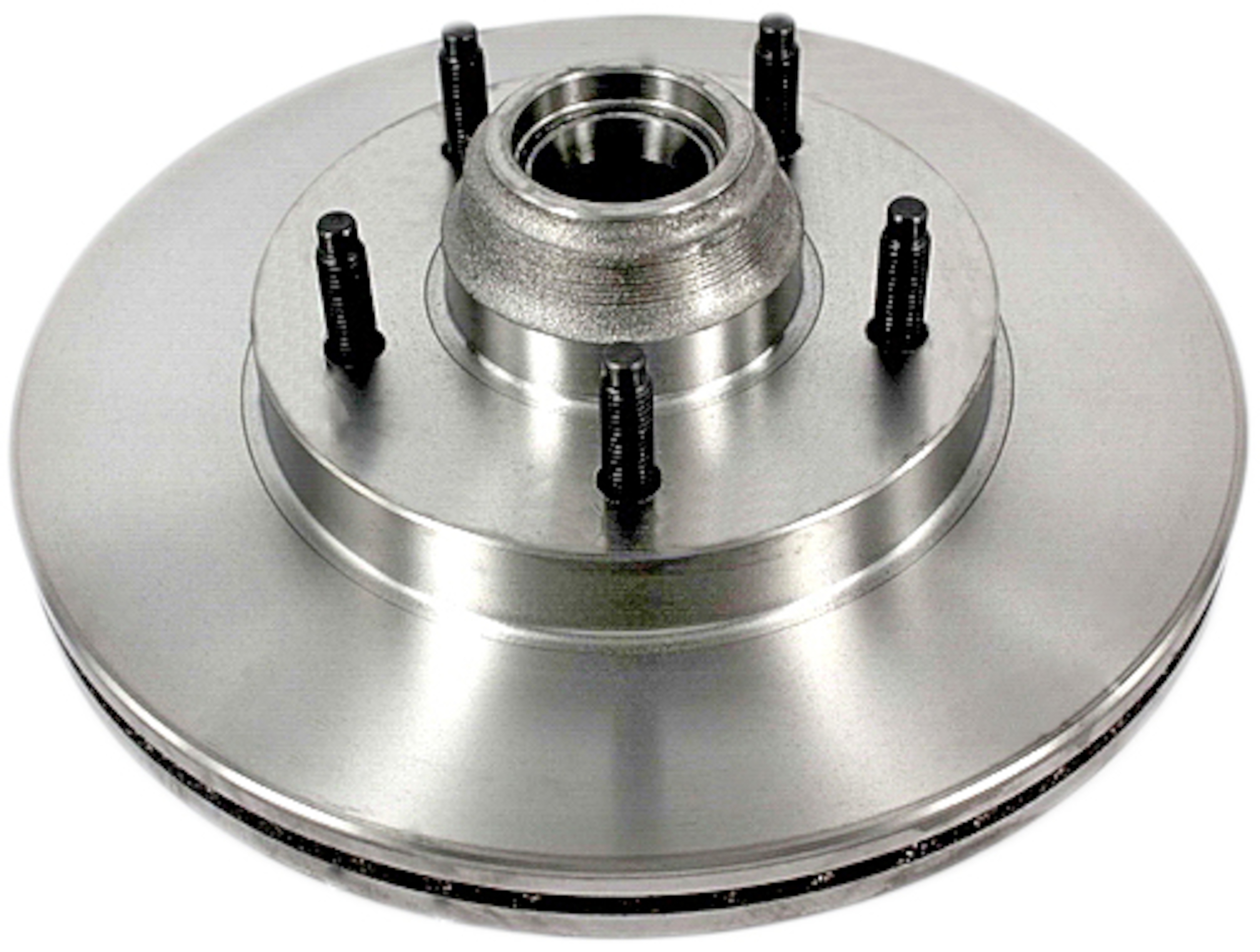

| Part Terminology | Disc Brake Rotor and Hub Assembly |
