| Overall Height | 4.937 |
| Overall Height (in) | 4.937 In |
| ABS Sensor Ring Included | Yes |
| Outer Diameter (in) | 11.87 In |
| Discard Thickness | 30.9 |
| Overall Height (MM) | 125.4 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 301.5 mm |
| Center Hole Diameter (mm) | 65.011 mm |
| Rotor Outside Diameter | 11.87 |
| Center Hole Diameter (In) | 2.559 In |
| Minimum Thickness (IN) | 1.217 In |
| Minimum Thickness (mm) | 30.9 mm |
| New Thickness (In) | 1.285 In |
| Bolt Holes | 5 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 5 In |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 32.64 |
| Bolt Circle Diameter (mm) | 127 mm |
| New Thickness (mm) | 32.64 mm |

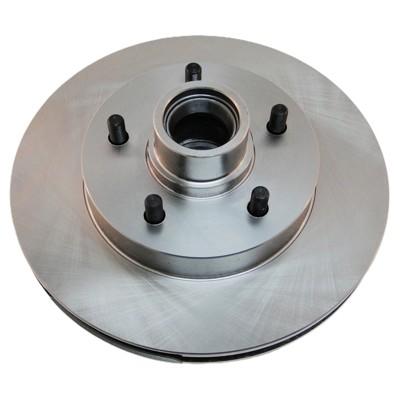

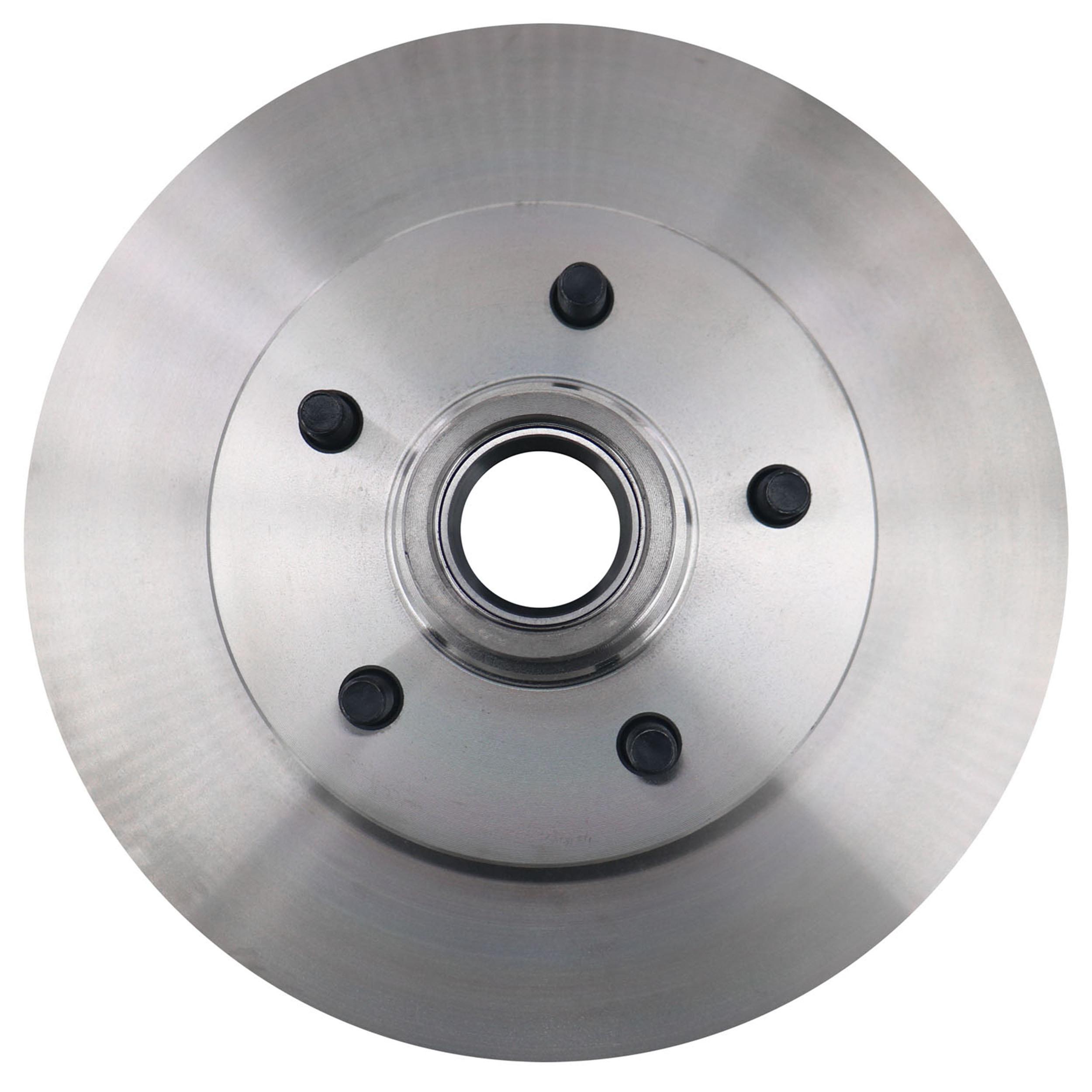

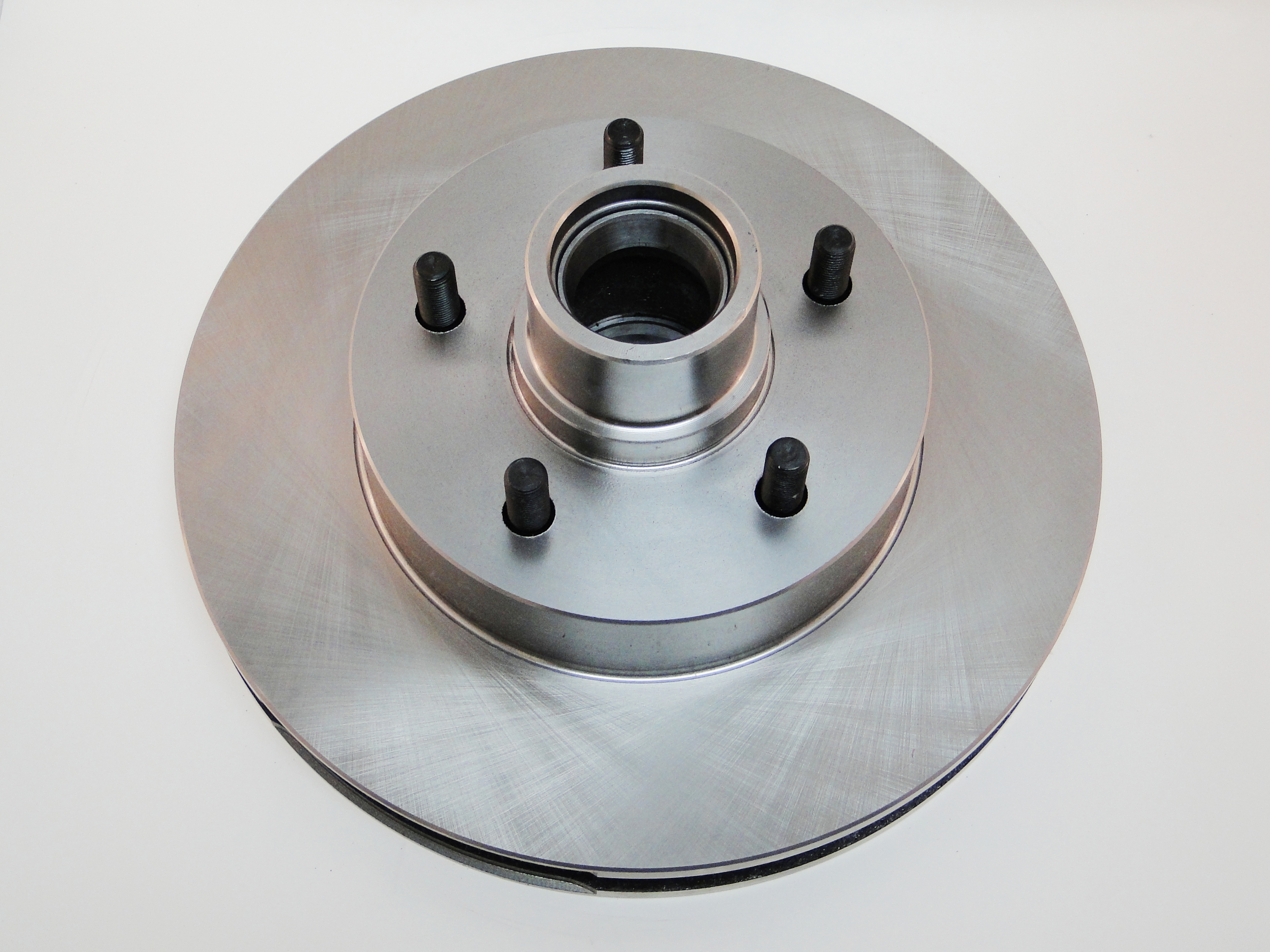

| Part Terminology | Disc Brake Rotor and Hub Assembly |
