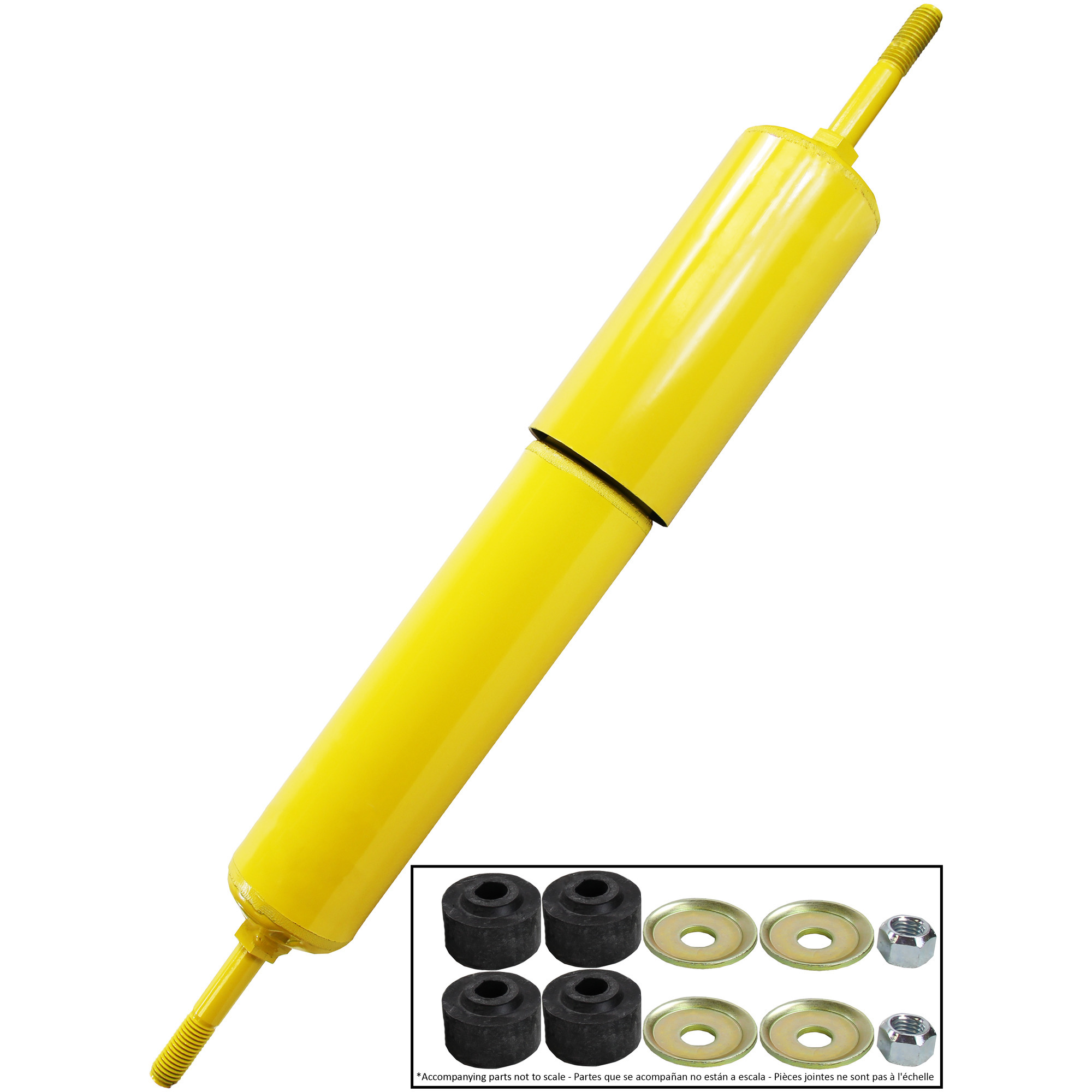

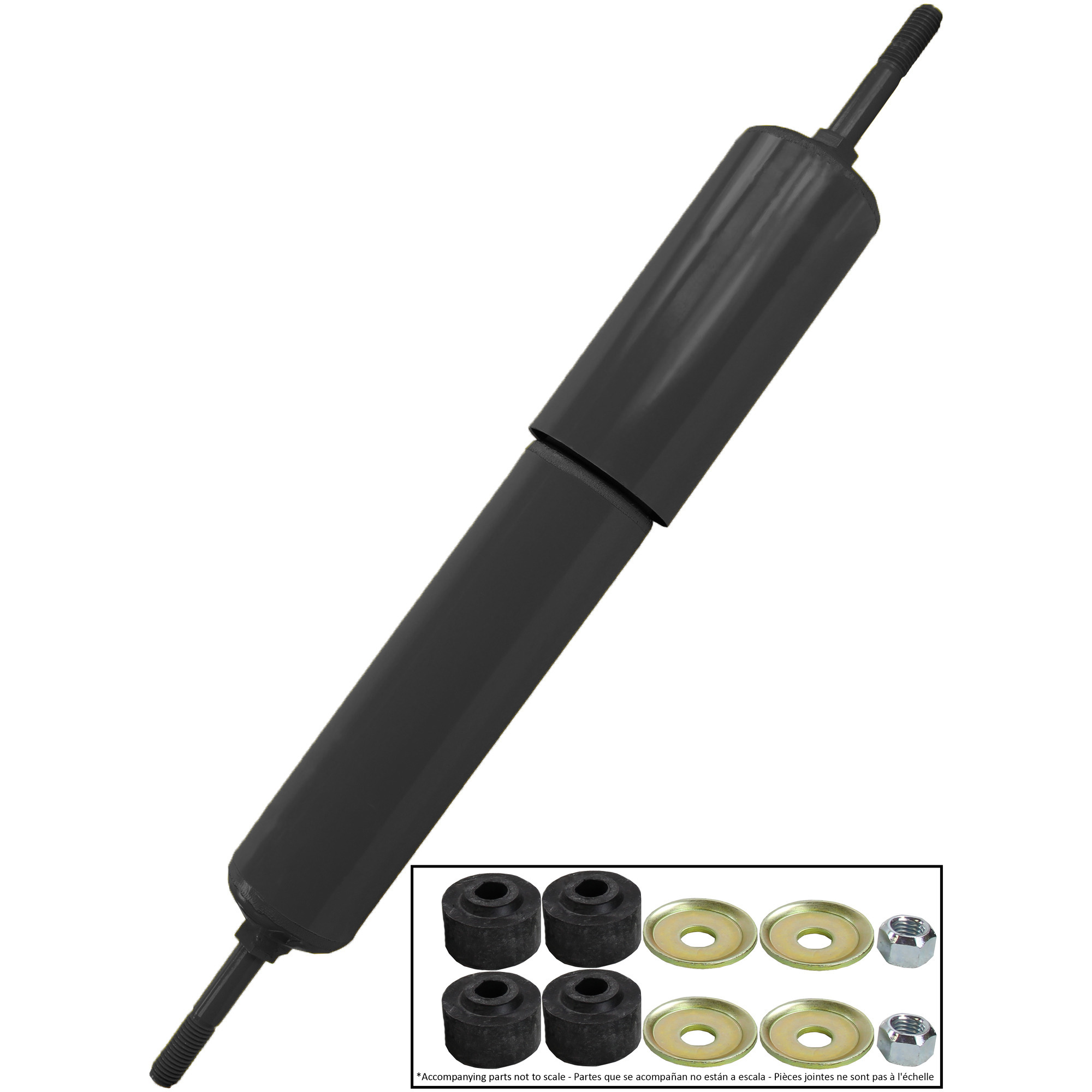

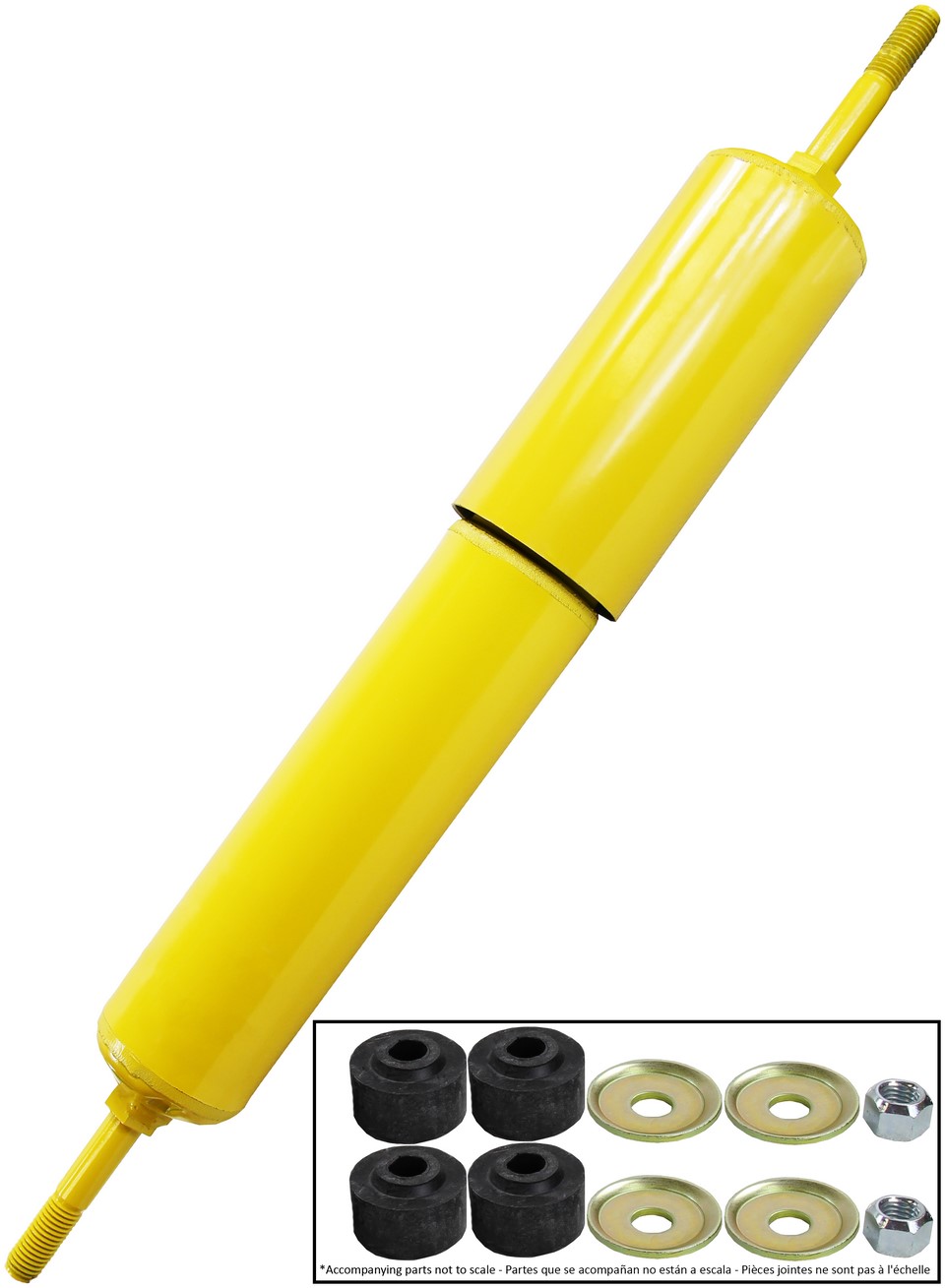

Magnum Rear Suspension Shock Absorber
Write a review
Part # 65169 | Line Code: MON
brandNameImage
brandNameImage
info Select store for pricing
Not Available
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Extended Bumper Stop No
Bloqueo hidráulico extendido No
Tipo de Montura Inferior Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Most Popular Make / Model Chevrolet C7500 Kodiak
Heavy Duty Supplier Yes
Body Color Black
Compressed Bumper Stop No
Tope de rebote extendido No
Lower Mounting Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Extended Length 593.7
Cubre polvo Yes
Upper Mounting Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Shock Absorber Body End Measuring Point Base of Stem
Lower Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Foam Cell Design No
Color Black
Internal Construction Type Twin Tube
Max Year Covered 2009
Upper Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Lower Mount Code S6
Total Part VIO 11814
Tope de rebote comprimido No
Min Year Covered 2004
Adjustable Rebound No
Parts Pack P01482
Adjustable Damping No
Upper Mounting Description Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Gas Charged Yes
Cylinder Color Black
Most Popular Year 2006
Shock Absorber Rod End Measuring Point Base of Stem
Extended Hydraulic Lockout No
Adjustable Dampening No
Accesorio(s) P01482
Shock Absorber Bore Size 1-3/4
Dust Shield Included Yes
Finish Painted
Internal Rebound Bumper No
Part Description Shock Absorber
Compressed Length 355.3
Parts Pack(s) (2) P01482
Product Grade Premium
Mounting Hardware Included Yes
Shaft Diameter 18
Tipo de Montura Superior Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Lower Mounting Description Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Travel Length 9.385
Upper Mount Code S6
Dust Shield Yes
Grade Type Premium
Part Terminology Suspension Shock Absorber
Features & Benefits
expand_more
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Application Summary
expand_more
2004-2008 Chevrolet C8500 (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore, Replaces OE Part Number(s) 15174903, with 19,000 (lb) Leaf Springs); 2006-2009 Chevrolet T8500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore); 2004-2008 Chevrolet C6500 Kodiak (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, with 19,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs); 2004-2008 Chevrolet C7500 Kodiak (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, with 19,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs); 2006-2009 Chevrolet T6500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore); 2006-2009 Chevrolet T7500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shocks are 1.75 (in) Bore)
