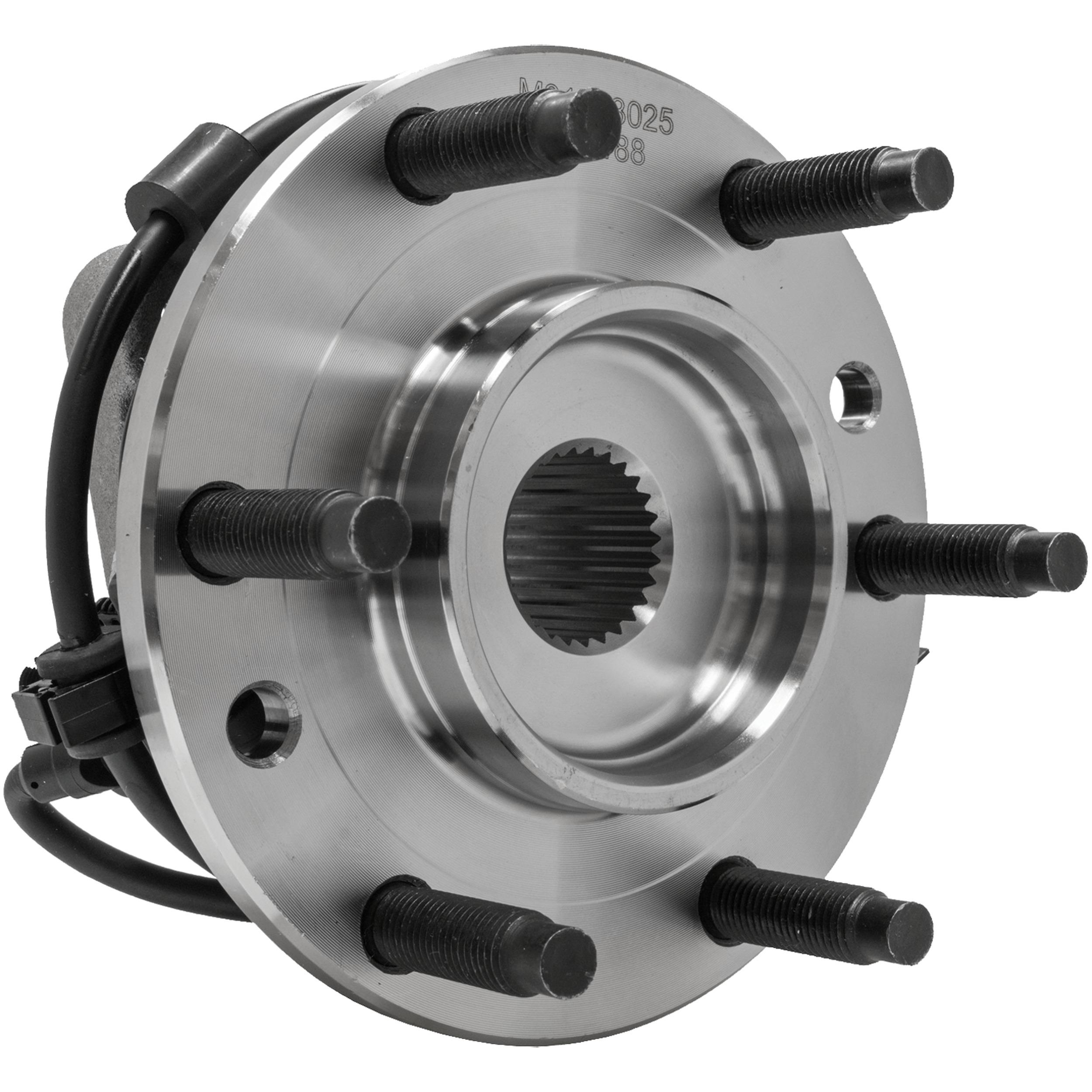

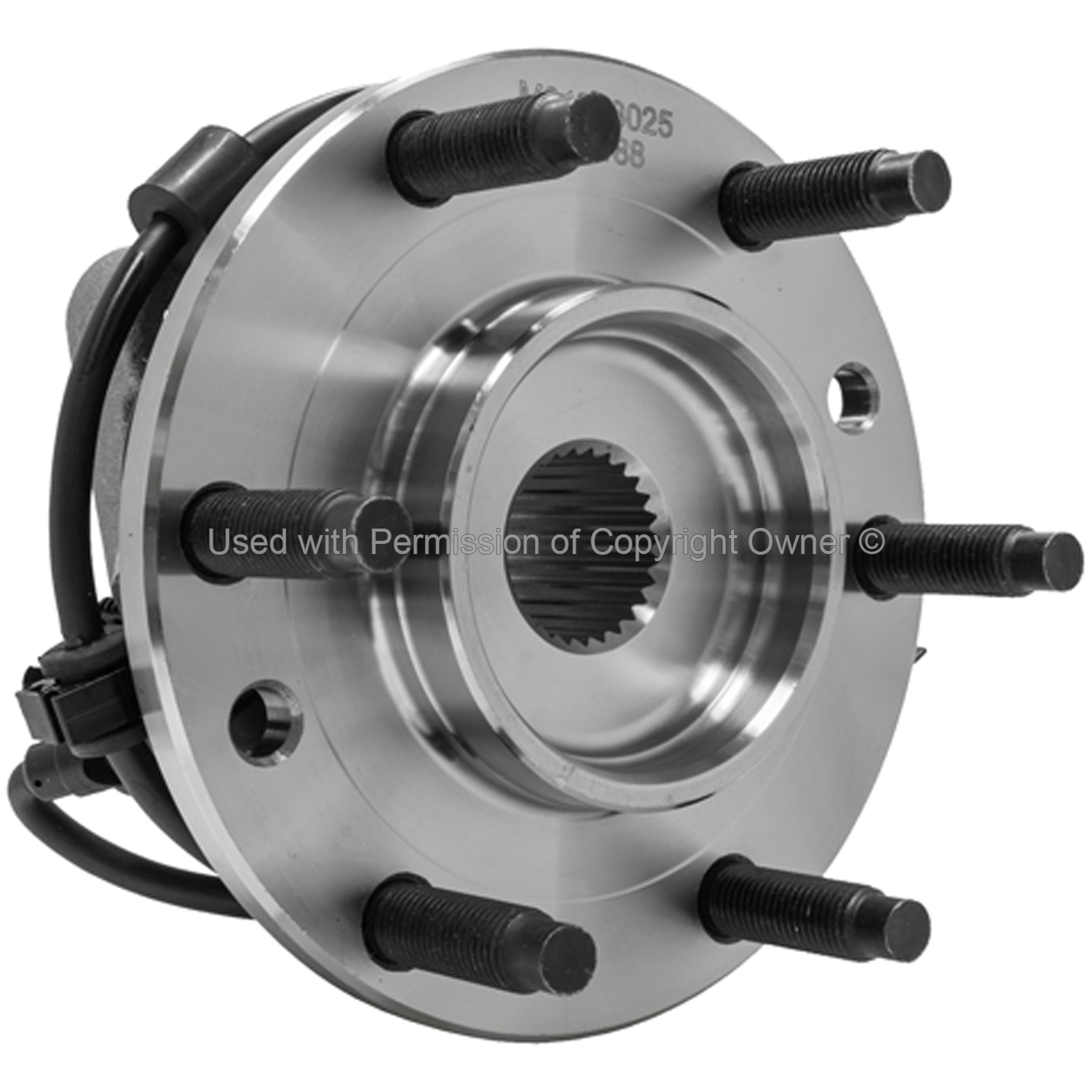

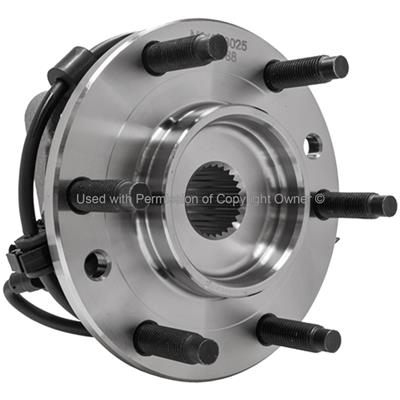

Wheel Bearing and Hub Assembly
Part # M513188 | Line Code: MCB
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Wiring Harness Included No
Flange Shape Triangle
Spline Quantity 27
Product Condition New
Anti Lock Brake Sensor Included Yes
Gasket Or Seal Included Yes
Flange Bolt Hole Diameter 4.75
Flange Bolt Hole Quantity 3
Wheel Studs Included Yes
Material Steel
Flange Diameter Inch 5.92
Anti Lock Braking System Type Sensor
Hub Pilot Diameter Inch 3.618
Flange Diameter 5.92
Greaseable No
California Proposition 65 WARNING: This product can expose you to chemicals including Chromium, hexavalent compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Flange Included Yes
Stud Quantity 6
Flange Offset 1.845
Wheel Stud Size MM M12 x 1.5
VIO 3,239,542
Part Terminology Wheel Bearing and Hub Assembly

Features & Benefits
expand_more
MacPherson Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

Application Summary
expand_more

Buick Rainier 2007-2004, Chevrolet SSR 2006-2003, Trailblazer 2009-2002, Trailblazer EXT 2006-2002, GMC Envoy 2009-2002, Envoy XL 2006-2002, Envoy XUV 2005-2004, Isuzu Ascender 2008-2003, Oldsmobile Bravada 2004-2002, Saab 9-7x 2009-2005
