| Flywheel Diameter | 9.409 |
| Flywheel Inner Diameter | 5.827 |
| Flywheel Cup Depth/Step Height | -0.293 |
| Heavy Duty Supplier | Yes |
| Number Of Mounting Bores | 2 |
| Number of Teeth | 112 |
| Dowel Hole Pattern | 5 |
| Bolt Hole Pattern | 2 |
| Centering diameter / dowel hole | 260 |
| Has Dowel Pins | with Dowel Pins |
| Flywheel Friction Surface Inner diameter | 148 |
| Flywheel friction surface outer diameter | 239 |
| Number of teeth, starter ring gear | 112 |
| Bolt hole PCD crankshaft | 70 |
| Ring Gear Thickness | 8 |
| I.D. for Pilot | 32 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Chamfer Side | Engine |
| Crank Hole Dia. | 12.56 |
| Crank To Friction Surface | 20 |
| Ring Gear Major Dia. | 288.72 |
| Ring Gear Mounting O.D. | 261.26 |
| Overall Casting O.D. | 280 |
| Flywheel Cup Depth or Step Height | -7.45 |
| Dowel hole diameter | 8.2 |
| Bolt hole PCD clutch pres.plte | 10.2362 |
| Flange Thickness | 0.3071 |
| Flywheel Thickness [mm] | 1.2921 |

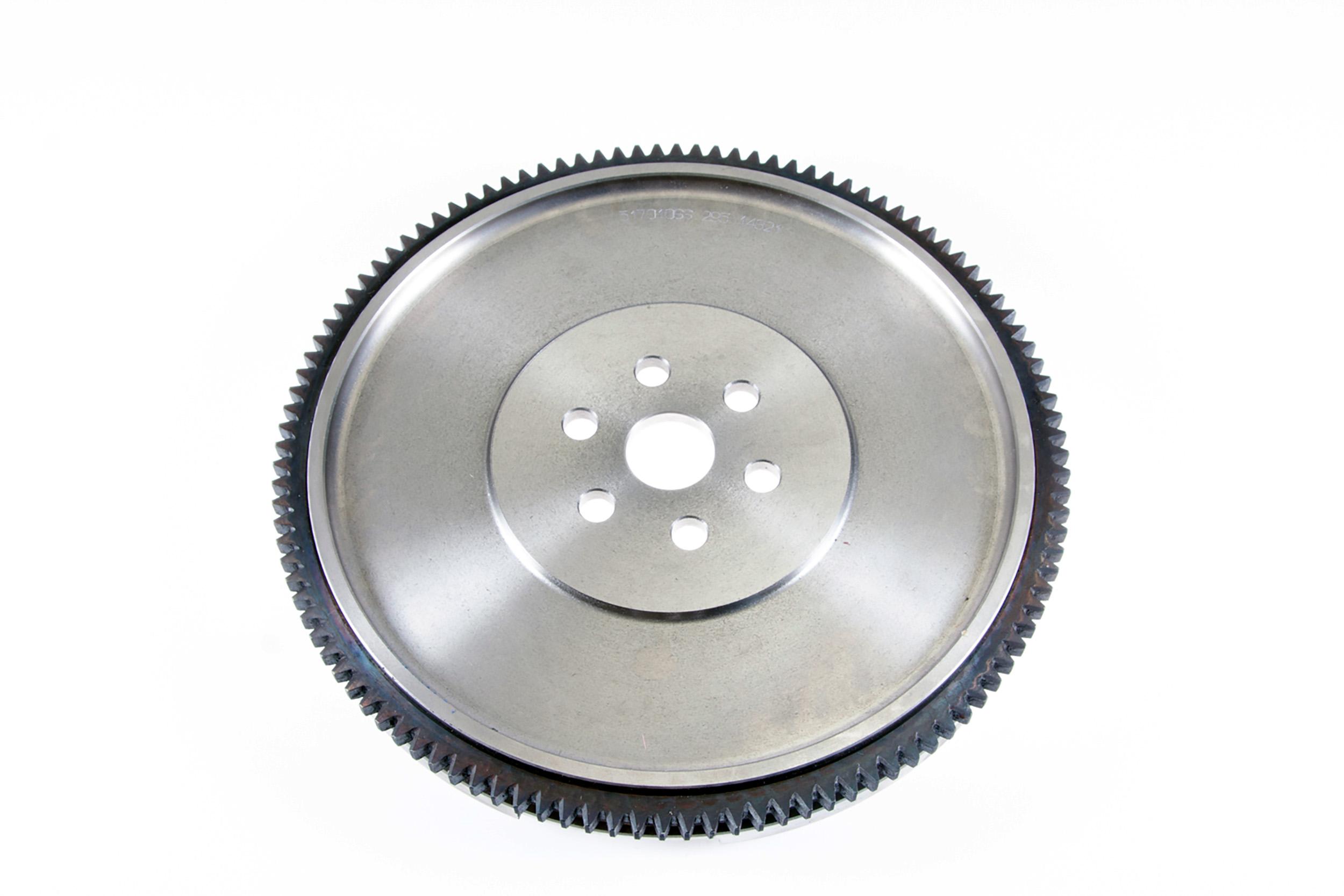

| Part Terminology | Clutch Flywheel |
