| Flywheel Diameter | 9.461 |
| Flywheel Inner Diameter | 5.807 |
| Flywheel Cup Depth/Step Height | 0.012 |
| Number Of Mounting Bores | 24 |
| Number of Teeth | 120 |
| Dowel Hole Pattern | 5 |
| Has Dowel Pins | with Dowel Pins |
| Flywheel Friction Surface Inner diameter | 147.5 |
| Ring Gear Chamfer Side | Transmission |
| Number of teeth, starter ring gear | 120 |
| Bolt Hole Pattern | 15 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Right |
| I.D. for Pilot | 41.74 |
| Flywheel Cup Depth or Step Height | 0.3 |
| Flywheel Thickness [mm] | 30.05 |
| Crank Hole Dia. | 12.93 |
| Ring Gear Major Dia. | 12.0079 |
| Flange Thickness | 0.4516 |
| Bolt hole PCD crankshaft | 2.7094 |
| Ring Gear Mounting O.D. | 10.9764 |
| Crank To Friction Surface | 1.0071 |
| Overall Casting O.D. | 11.2567 |
| Ring Gear Thickness | 0.4303 |
| Bolt hole PCD clutch pres.plte | 10.6268 |
| Flywheel friction surface outer diameter | 9.4606 |
| Centering diameter / dowel hole | 10.6268 |
| Dowel hole diameter | 0.3114 |

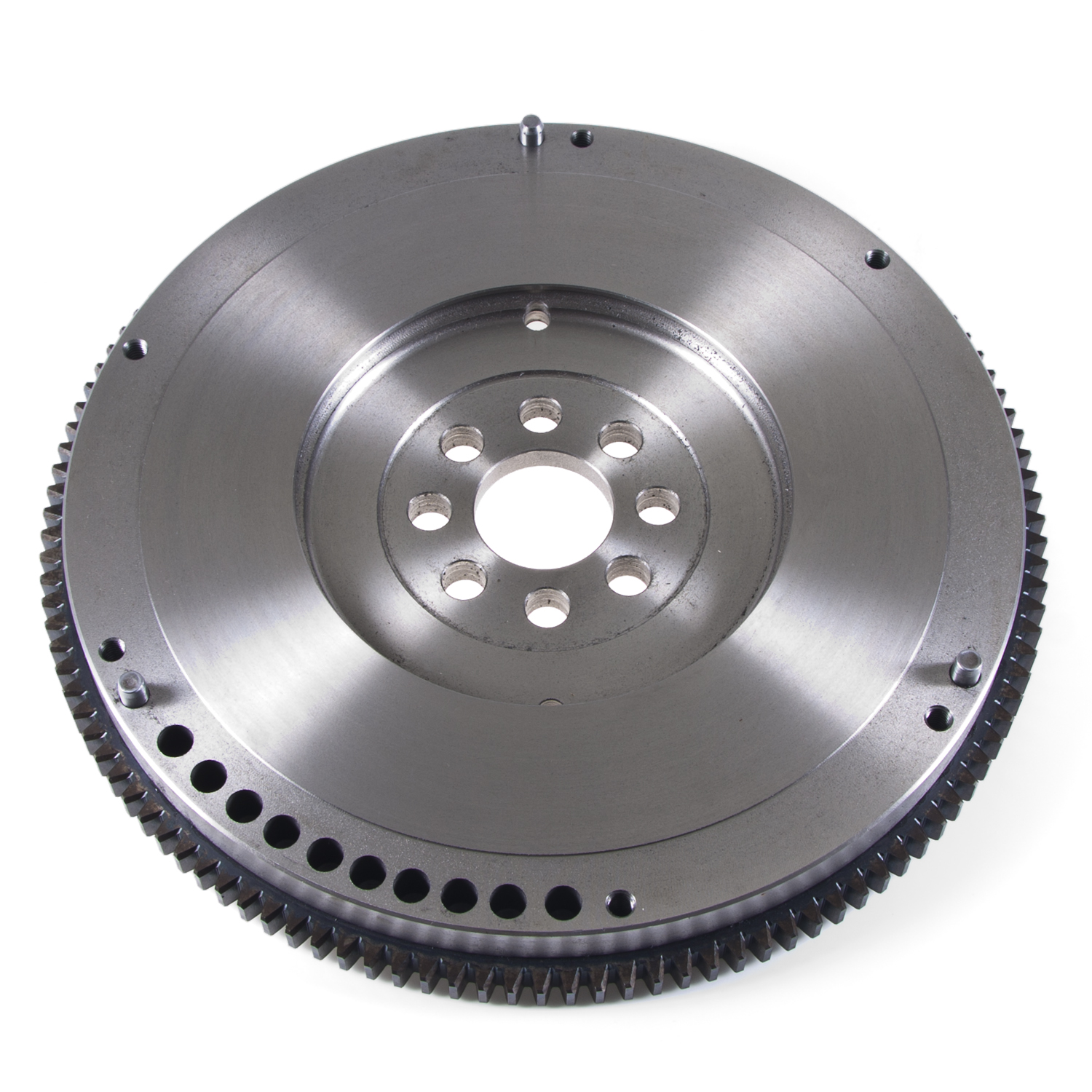

| Part Terminology | Clutch Flywheel |
