In Store Pickup Available
| Fan Bolt Circle IN | 3.25 |
| Performance Rated? | Yes |
| Description | Fan Clutches |
| Mounting Hole Quantity | 4 |
| Use Type | Severe |
| Fan Bolt Circle MM | 82.6 |
| Thermal Or Centrifugal | D - Severe Duty & Truck Fan Drive |
| New or Reman | New |
| Mounting Hardware? | Not Included |
| Overall Height MM | 92.9 |
| Mount Type | Flange |
| Pilot Depth MM | 16 |
| Bolt Quantity | 4 |
| Bolt Hole Quantity | 4 |
| Overall Height IN | 3.66 |
| Style | Severe Duty |
| Pilot Depth IN | 0.63 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| SDS Required | No (135233618) |
| Overall Dia. MM | 163.8 |
| Drawing Type | D |
| O.E. Replacement? | Yes |
| Mount Dia. IN | 2.46 |
| Pilot Dia. IN | 0.63 |
| Warranty | 1 year/12,000 miles |
| Duty Rating | Severe |
| Overall Dia. IN | 6.45 |
| Color | Raw Aluminum in Color |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Mount Dia. MM | 62 |
| Mounting Type | Flange |
| Clutch Maximum Diameter | 6.45 |
| Rotation | REV |
| Meets / Exceeds OEM? | Yes |
| Type | Thermal |
| Dia. IN | 6.45 |
| Distance From Clutch To Mounting Flange | 1.63 |
| Bolt Thread | M10 x 1.5 Hole |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer. |
| Fan Mount Height MM | 41.3 |
| Fan Mount Dia. IN | 2.52 |
| Electronic Clutch? | Non Electronic |
| Grade Type | Severe |
| Mount Hole Qty | 4 |
| Fan Mount Dia. MM | 63.9 |

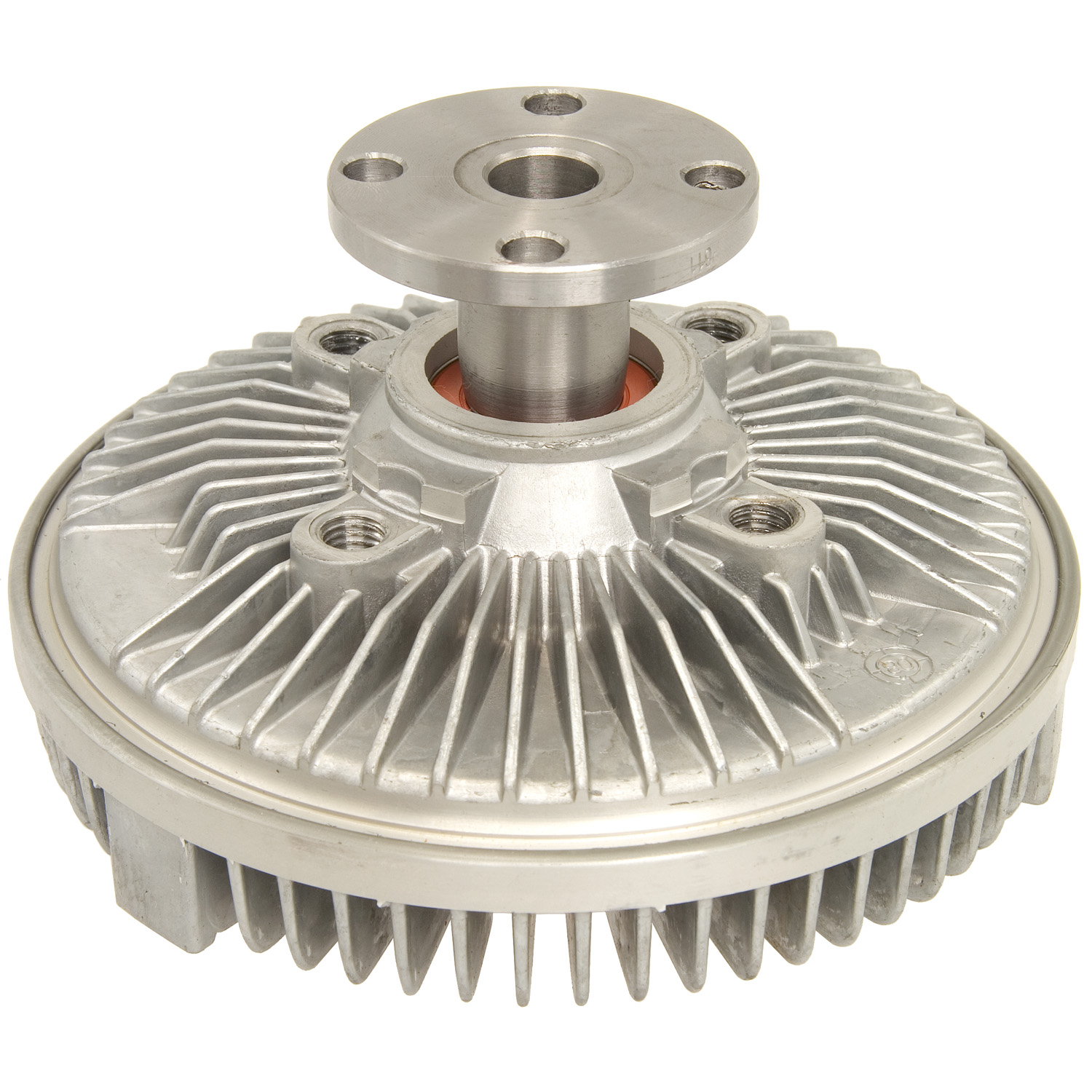

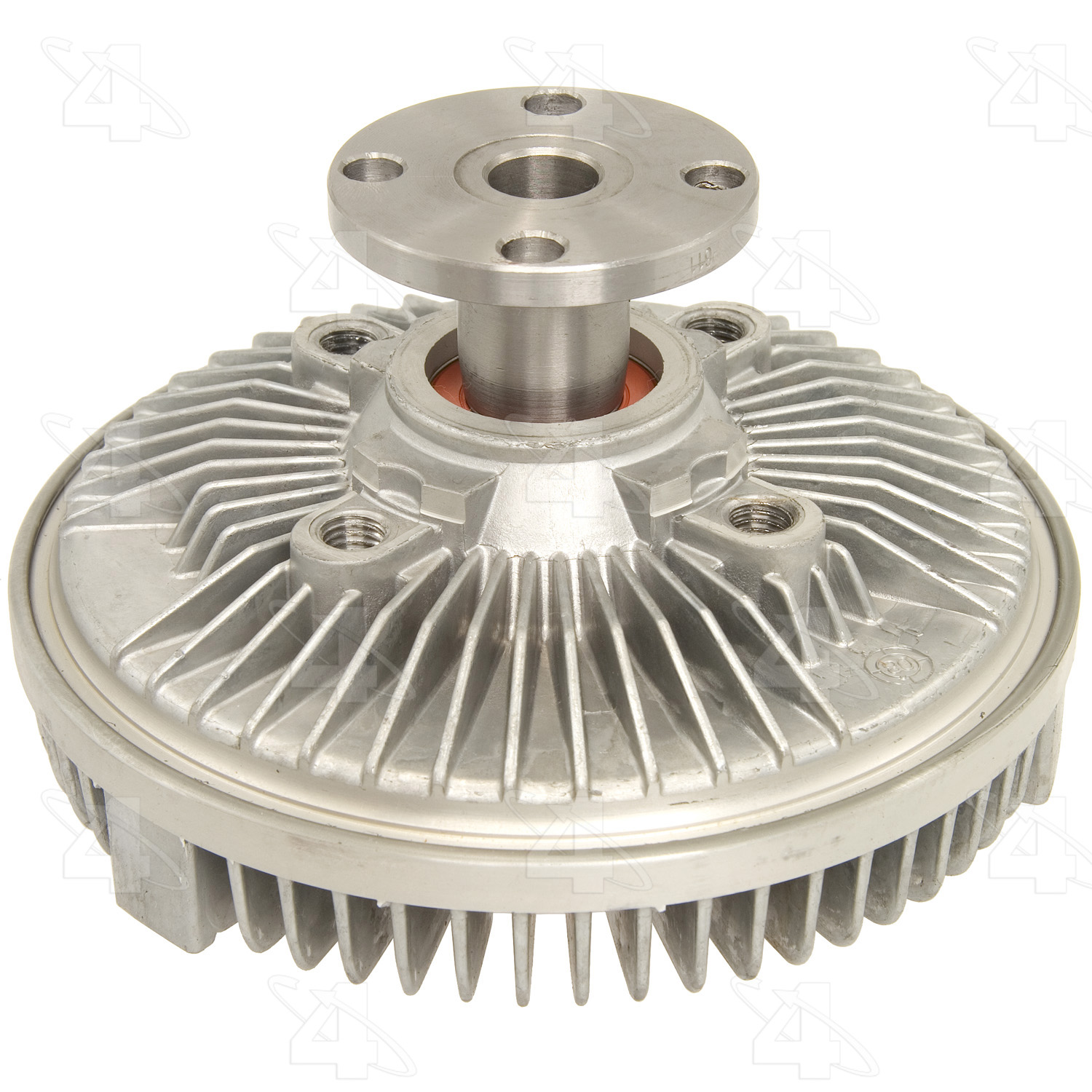

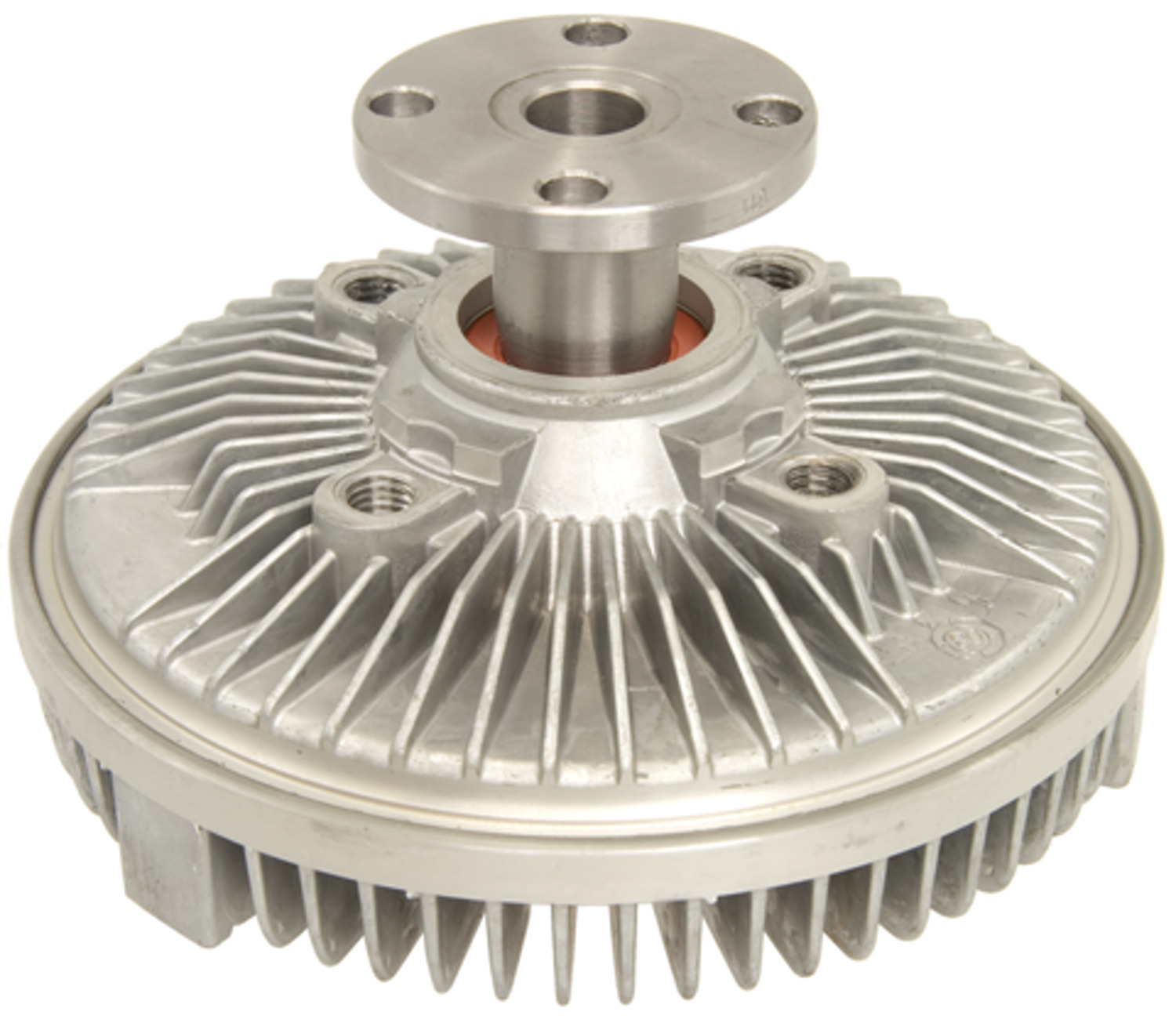

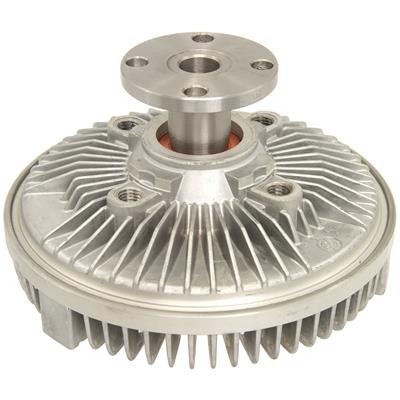

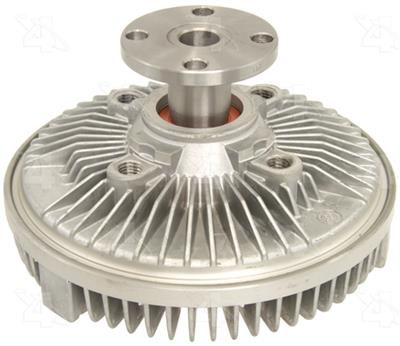

| Part Terminology | Engine Cooling Fan Clutch |
