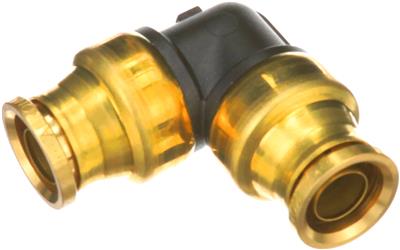

Hydraulic Coupling / Adapter Gates G31404-0404C

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Composite Air Brake Union - 90 (Composite Air Brake SureLok - D.O.T.)

Part # G31404-0404C | Line Code: GAT

Select store for pricing

Not Available

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Coupling Description	Composite SureLok Composite Air Brake Union - 90
Maximum Working Pressure	150
Heavy Duty Supplier	Yes
Drop Length	1.12
Material	High Impact Nylon & Brass
Drop (in) - T	1.12
Tube Outside Diameter (in) - A2	.25
Length	1.12
Tube Outside Diameter (in) - A1	.25
Length (in)	1.12
Temperature Range	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Seal Material	Buna N
Drop (mm) - T	28.45
Maximum Working Pressure (psi)	150
Length (MM)	28.45
Outside Diameter	.25
Alliance Keywords	hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Industrial Description	4CAB-4CAB90
Part Terminology	Hydraulic Coupling / Adapter

Features & Benefits

Recommended for air brake systems – compressed air connectors or suspension, steering, engine, transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Composite fittings are up to 70 percent lighter than comparable brass fittings. Meets DOT FMVSS 571.106, SAE J113 and SAE J2494 impact resistance. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
