| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |

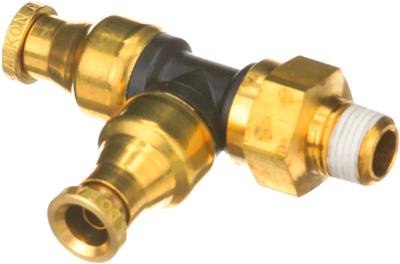

| Coupling Description | Composite SureLok Male Pipe Swivel to Composite Air Brake to Composite Air Brake |
| Maximum Working Pressure | 150 |
| Thread Size - T1 | 1/4-18 |
| Heavy Duty Supplier | Yes |
| Drop Length | 28.4 |
| Material | High Impact Nylon & Brass |
| Thread Size | 1/4-18 |
| Drop (in) - T | 1.12 |
| Nut Hex (mm) - H2 | 15.9 |
| Tube Outside Diameter (in) - A2 | .25 |
| Length | 2.33 |
| Tube Outside Diameter (in) - A1 | .25 |
| Length (in) | 2.33 |
| Temperature Range | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
| Seal Material | O-Ring - Buna N, Thread Sealant - ST-3 |
| Drop (mm) - T | 28.4 |
| Maximum Working Pressure (psi) | 150 |
| Length (MM) | 59.18 |
| Outside Diameter | .25 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 4MPX-4CAB-4CAB |
| Part Terminology | Hydraulic Coupling / Adapter |
