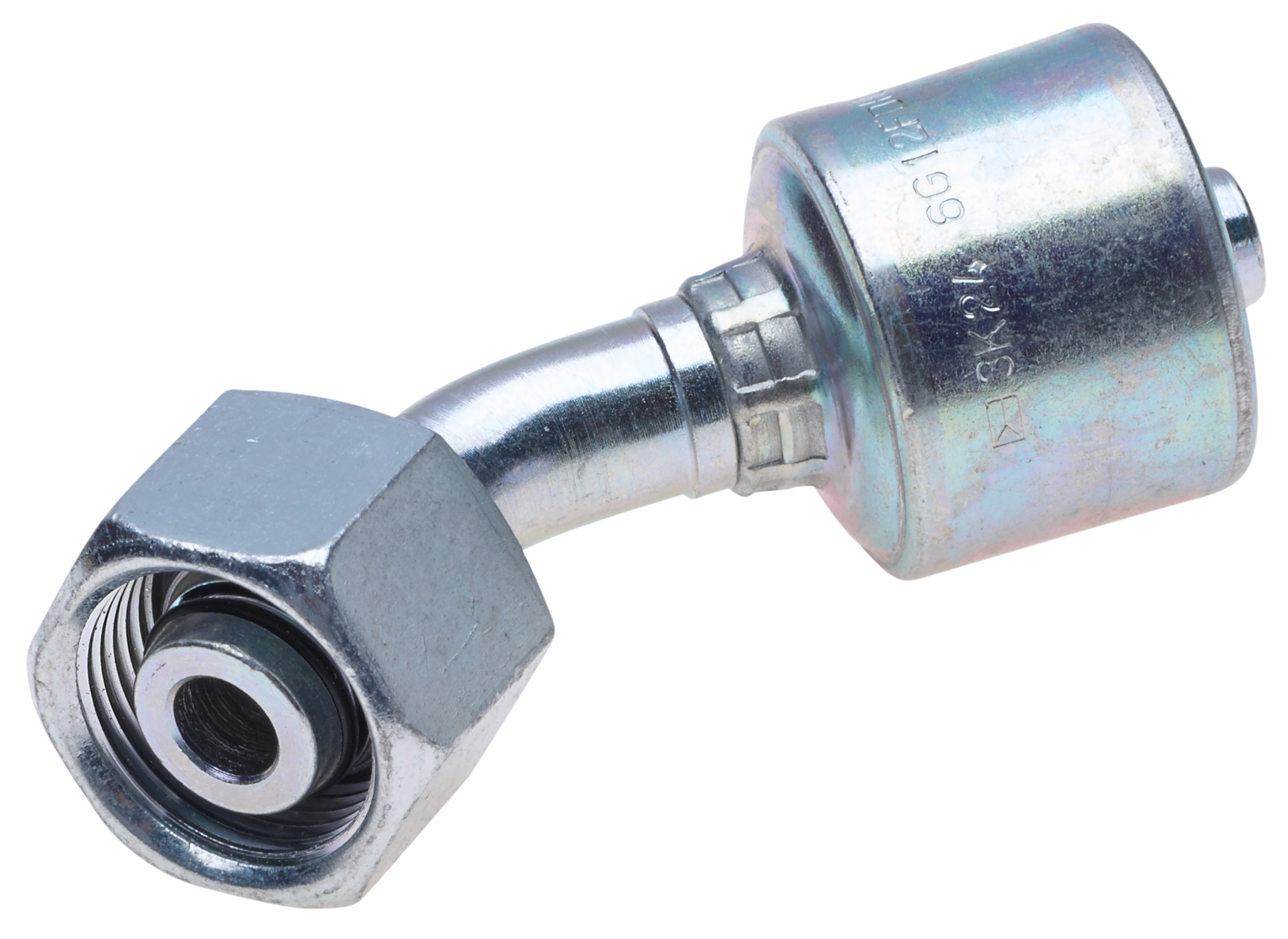

| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 45 Bent Tube |
| Seal Type | Mated Angle w/O-Ring |
| Heavy Duty Supplier | Yes |
| Seated Angle | 24 |
| Hose Inside Diameter (in) | .625 |
| Gender | Female |
| Drop (in) - T | .98 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex (mm) - H2 | 36 |
| Inside Diameter | 15.9 |
| Length (in) | 3.36 |
| Drop (mm) - T | 24.9 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 20 |
| Cut Off (mm) - C | 55.8 |
| Industrial Description | 10G-20FDHORX45 |
| Cut Off (in) - C | 2.2 |
| DIN Series | Heavy |
| Hose Inside Diameter (mm) | 15.9 |
| Drop Length | .98 |
| Termination | DIN |
| Thread Size | M30X2.0 |
| Seat Angle | 24 |
| Bent Tube Angle | 45 |
| Length | 3.36 |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Swivel | Yes |
| Length (MM) | 85.4 |
| Outside Diameter | 20 |
| Part Terminology | Hydraulic Coupling / Adapter |
