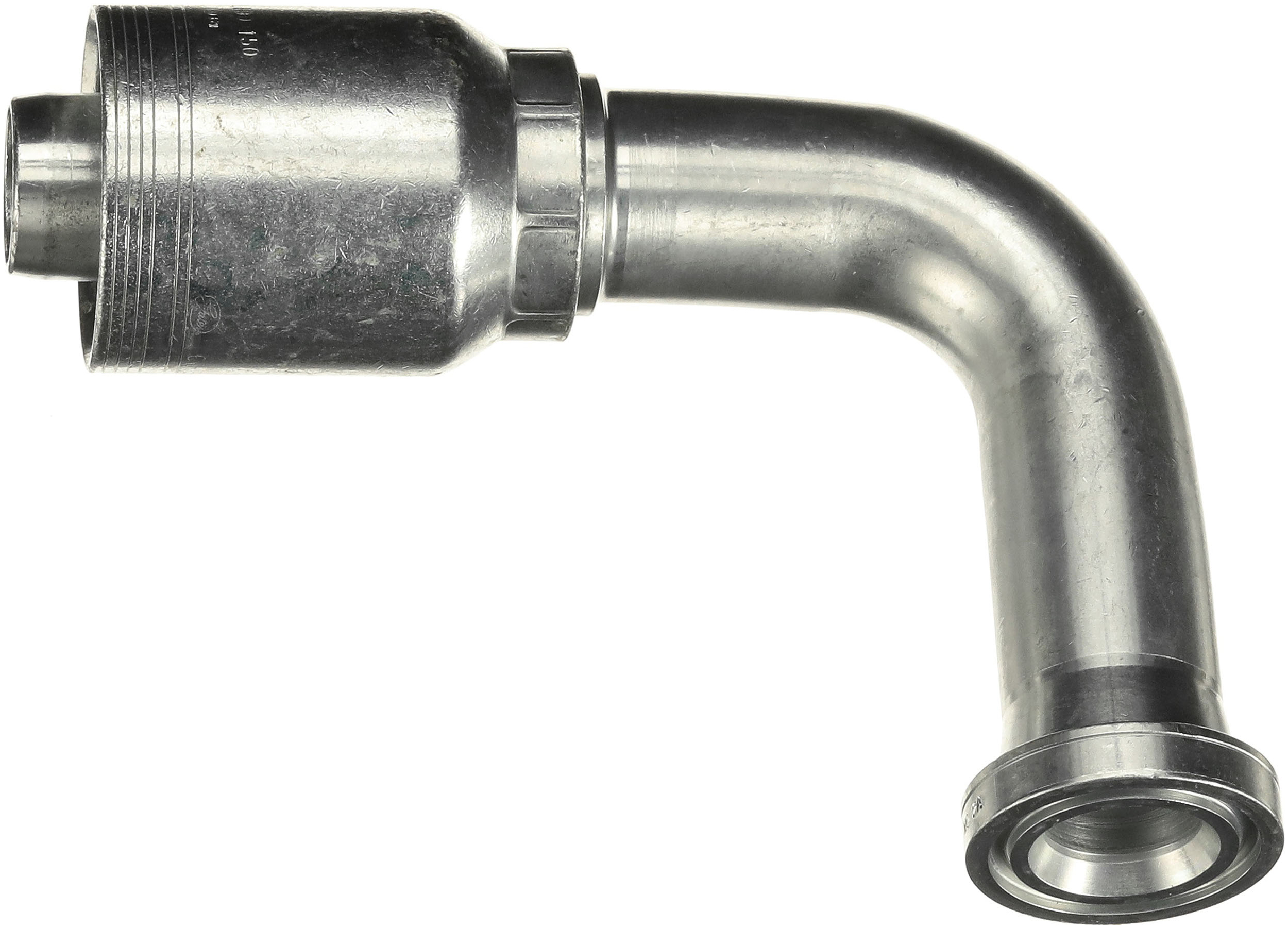

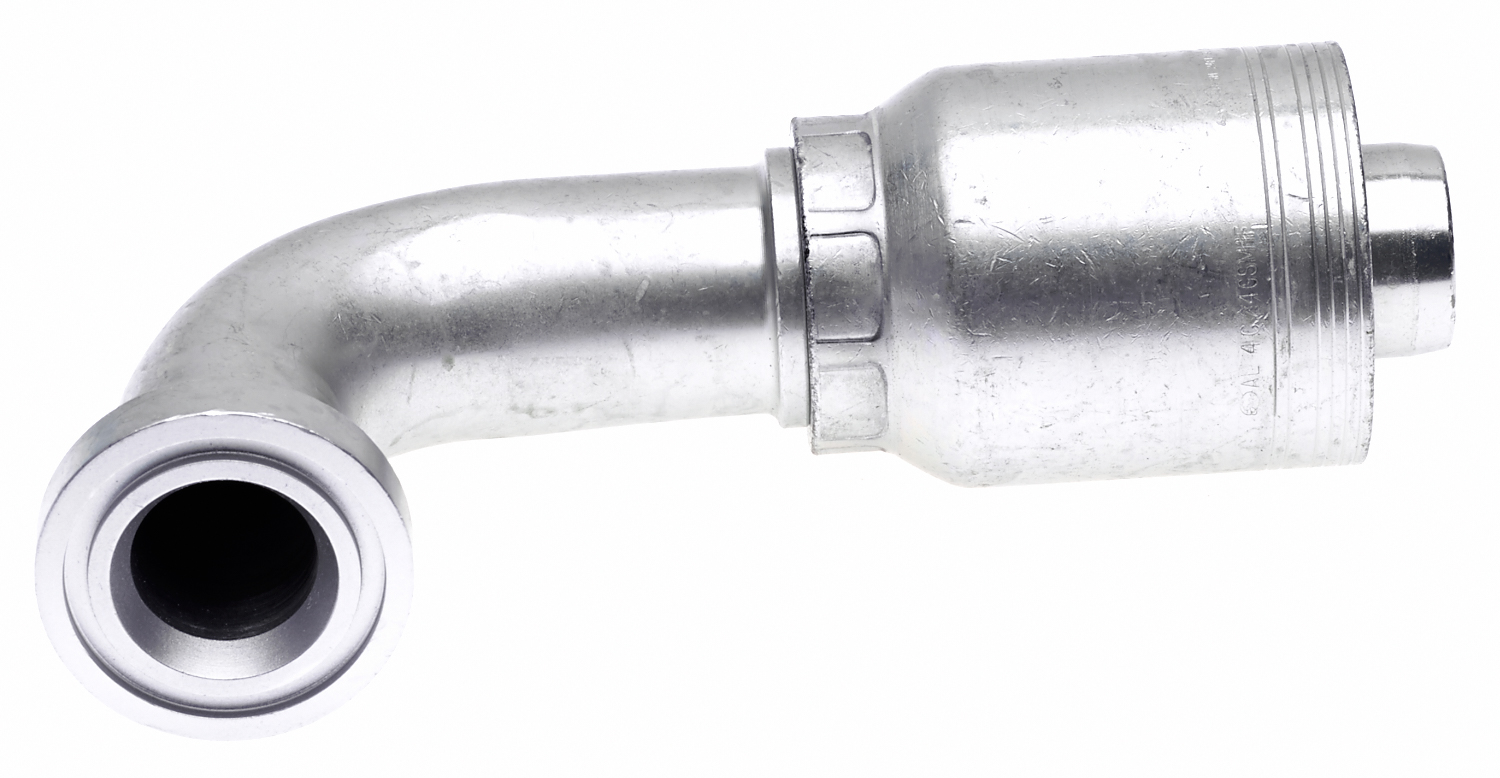

| Coupling Description | GlobalSpiral MAX Pressure Code 62 O-Ring Flange Heavy - 90 Bent Tube |

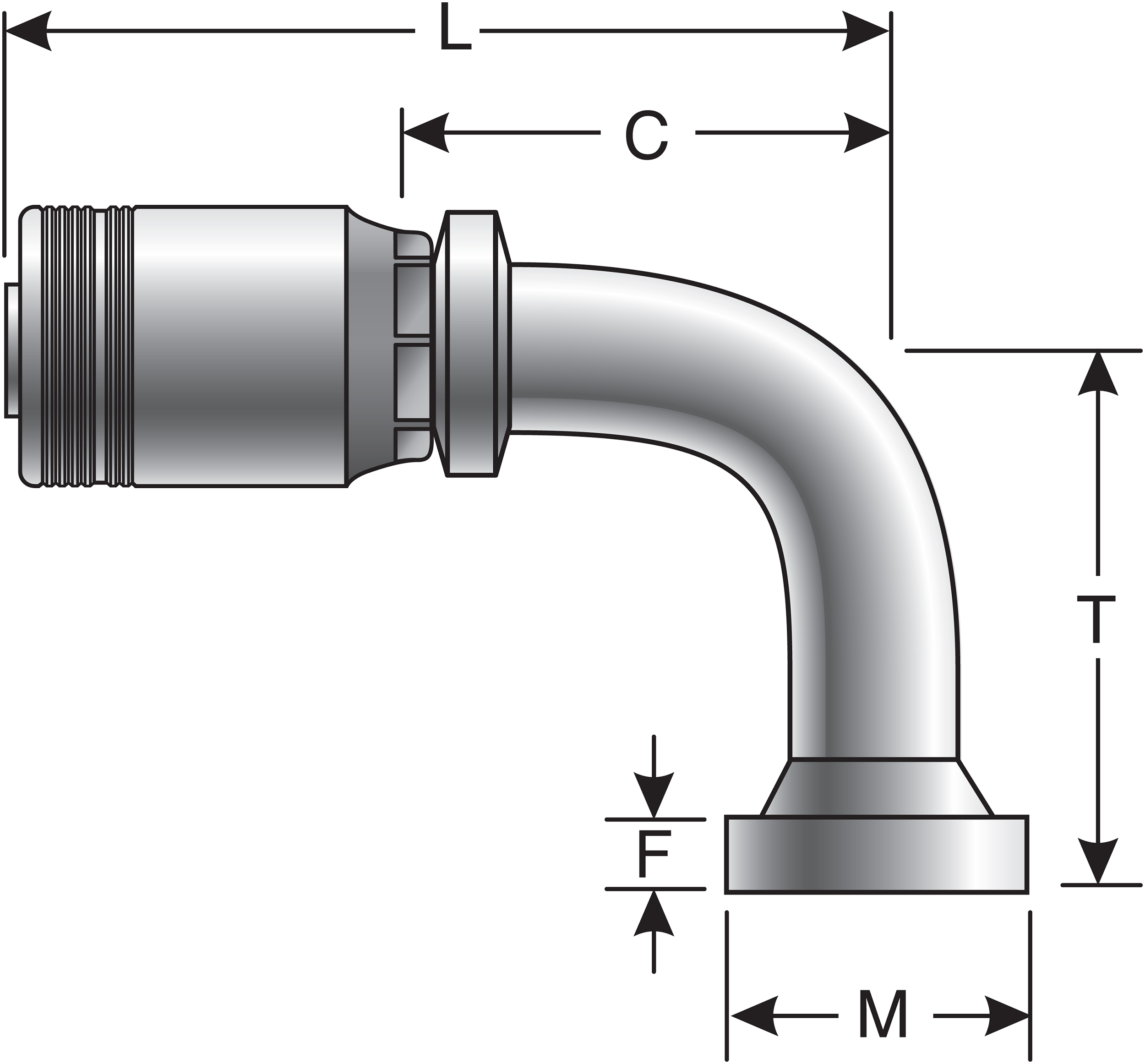

| Cut Off (in) - C | 4.68 |
| Hose Inside Diameter (mm) | 38.1 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1.5 |
| Drop Length | 5.9 |
| Flange Thickness | .5 |
| Drop (in) - T | 5.9 |
| Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Head Thickness (in) - F | .5 |
| Length | 8.42 |
| Flange Diameter (mm) - M | 63.5 |
| Inside Diameter | 1.5 |
| Flange Diameter | 2.5 |
| Flange Head Thickness (mm) - F | 12.7 |
| Length (in) | 8.42 |
| Drop (mm) - T | 149.9 |
| Length (MM) | 213.9 |
| Flange Diameter (in) - M | 2.5 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 118.9 |
| Industrial Description | 24GSM-24FLH90-150 |
| Part Terminology | Hydraulic Coupling / Adapter |
