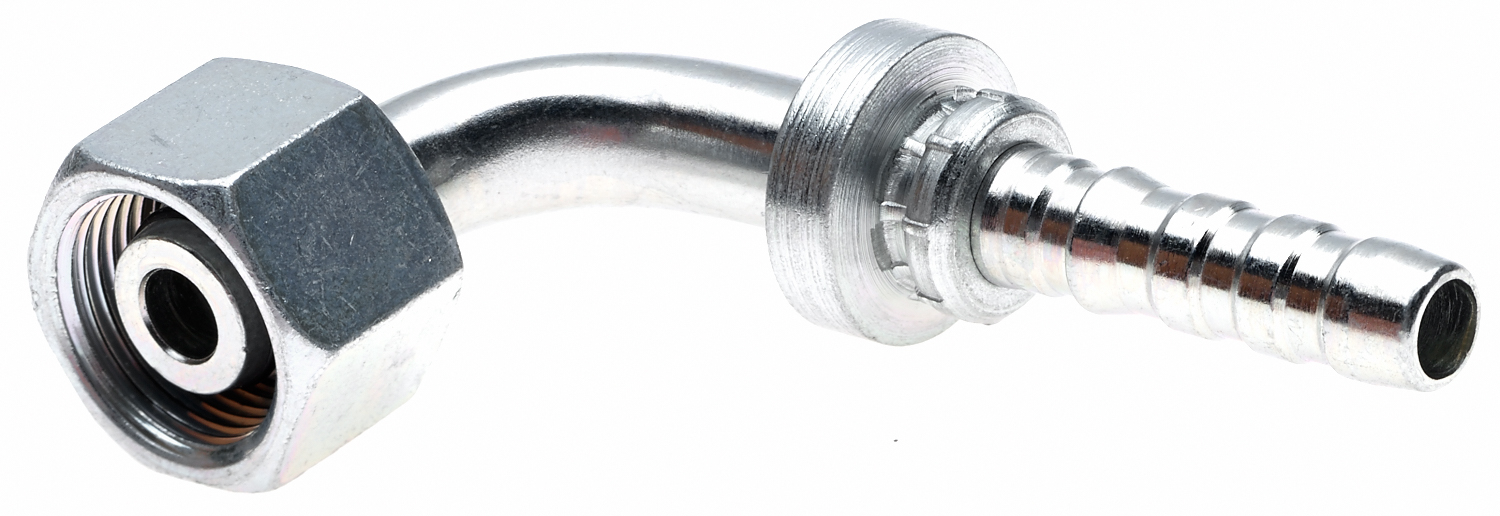

| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube |
| Cut Off (in) - C | 2.95 |
| Hose Inside Diameter (mm) | 19.1 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .75 |
| Drop Length | 64 |
| Thread Size | M36X2.0 |
| Drop (in) - T | 2.52 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 46 |
| Length | 4.86 |
| Inside Diameter | .75 |
| Length (in) | 4.86 |
| Drop (mm) - T | 64 |
| Length (MM) | 123.4 |
| Outside Diameter | 25 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 25 |
| Cut Off (mm) - C | 75 |
| Industrial Description | 12GS-25FDHORX90 |
| Part Terminology | Hydraulic Coupling / Adapter |
