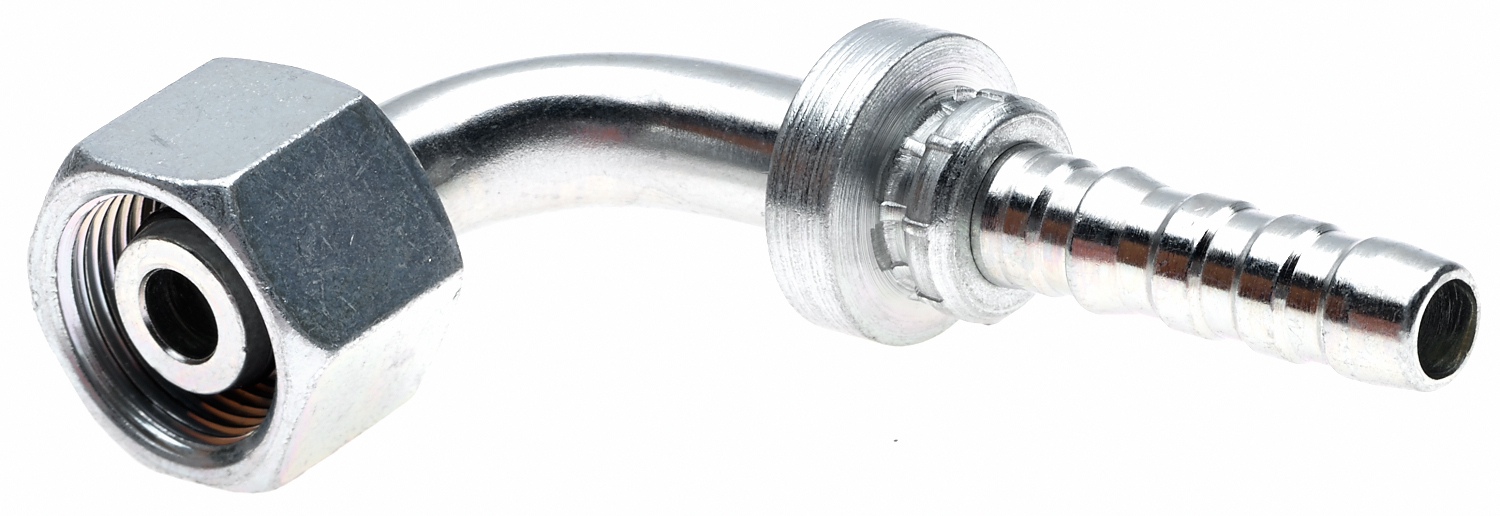

| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube |
| Cut Off (in) - C | 2.45 |
| Hose Inside Diameter (mm) | 15.9 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .625 |
| Drop Length | 2.01 |
| Thread Size | M30X2.0 |
| Drop (in) - T | 2.01 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 36 |
| Length | 4.43 |
| Inside Diameter | 15.9 |
| Length (in) | 4.43 |
| Drop (mm) - T | 51.1 |
| Length (MM) | 112.5 |
| Outside Diameter | 20 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 20 |
| Cut Off (mm) - C | 62.2 |
| Industrial Description | 10GS-20FDHORX90 |
| Part Terminology | Hydraulic Coupling / Adapter |
