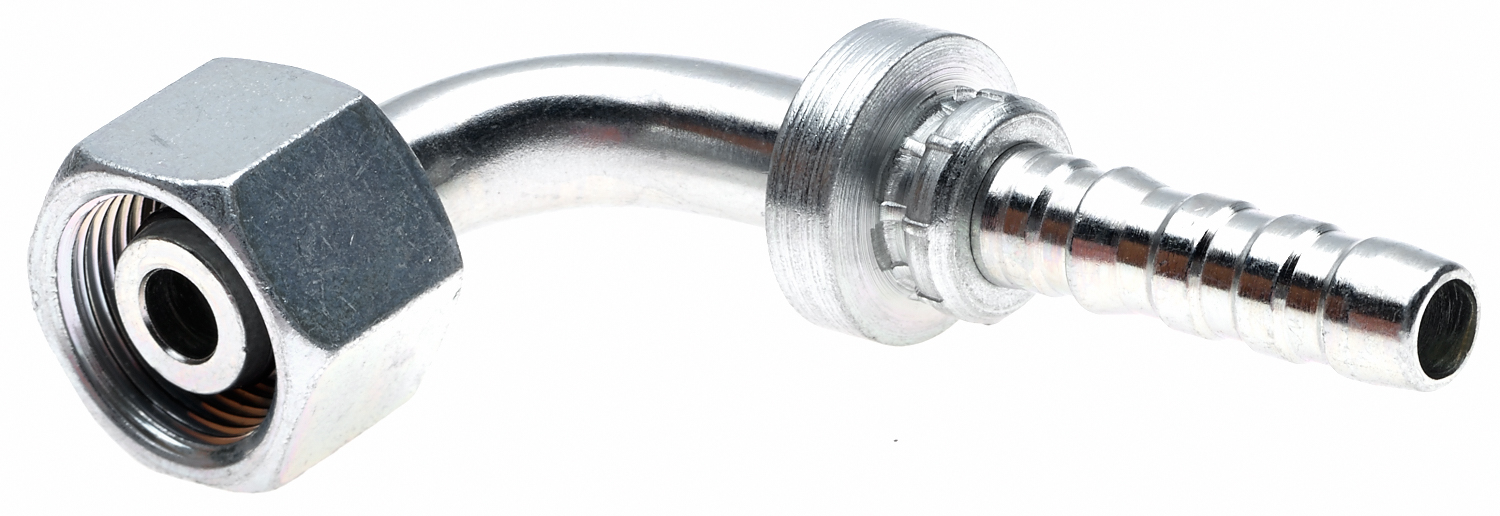

| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube |
| Cut Off (in) - C | 1.99 |
| Hose Inside Diameter (mm) | 12.7 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .5 |
| Drop Length | 1.73 |
| Thread Size | M24X1.5 |
| Drop (in) - T | 1.73 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 30 |
| Length | 3.39 |
| Inside Diameter | .5 |
| Length (in) | 3.39 |
| Drop (mm) - T | 43.9 |
| Length (MM) | 86.1 |
| Outside Diameter | 16 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 16 |
| Cut Off (mm) - C | 50.5 |
| Industrial Description | 8GS-16FDHORX90 |
| Part Terminology | Hydraulic Coupling / Adapter |
