Name: Hydraulic Coupling / Adapter
Brand: Gates

keyboard_arrow_left

Go back

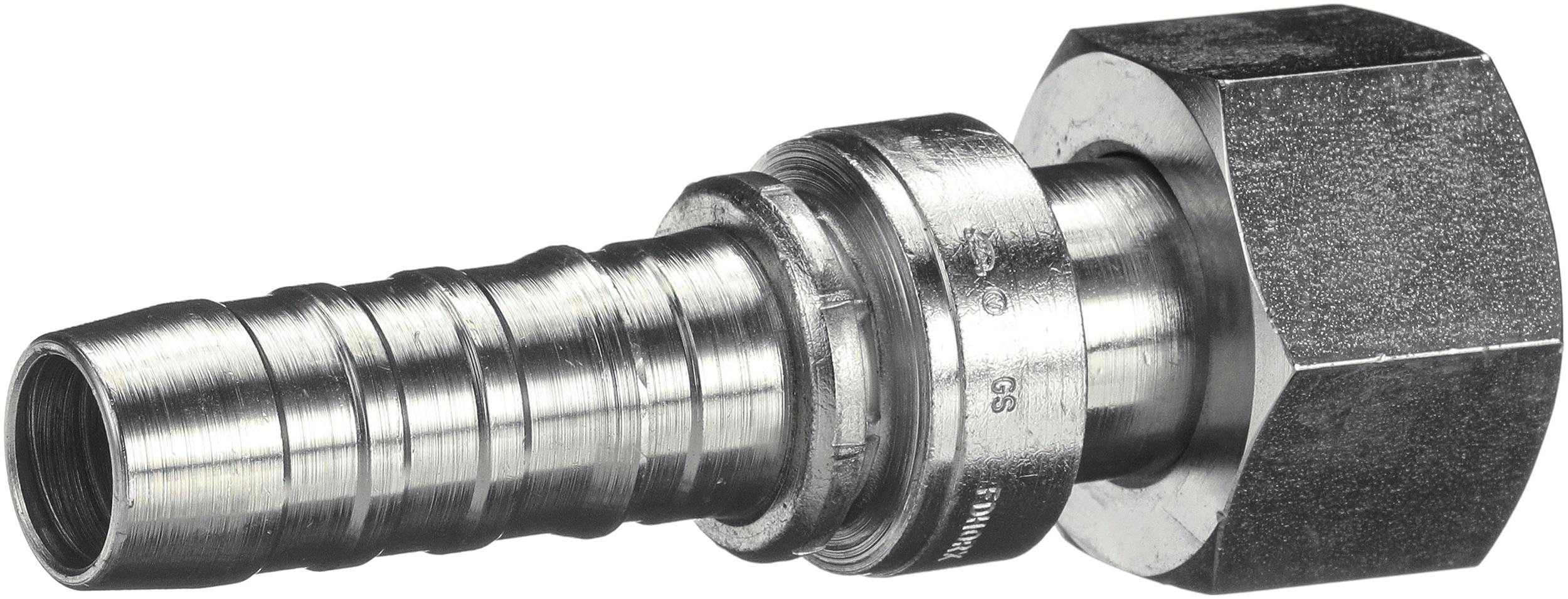

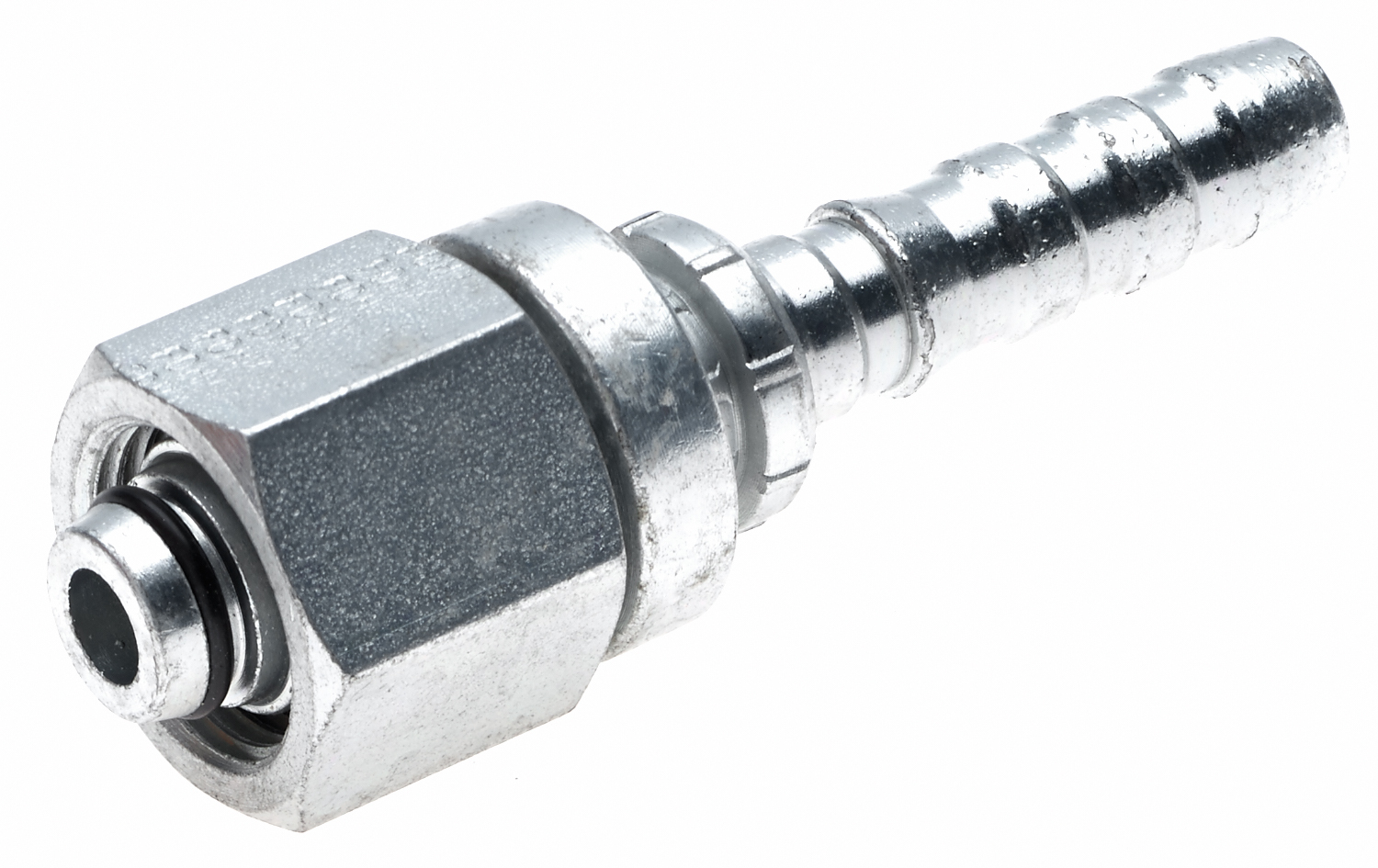

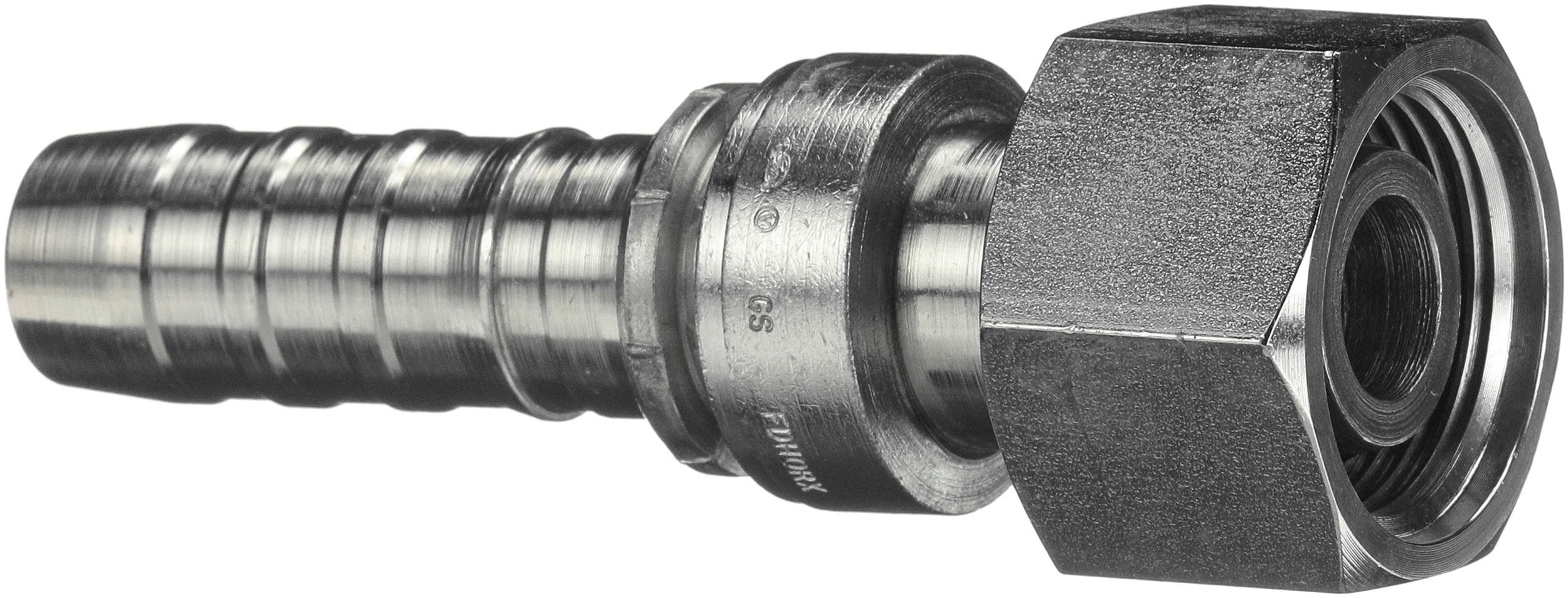

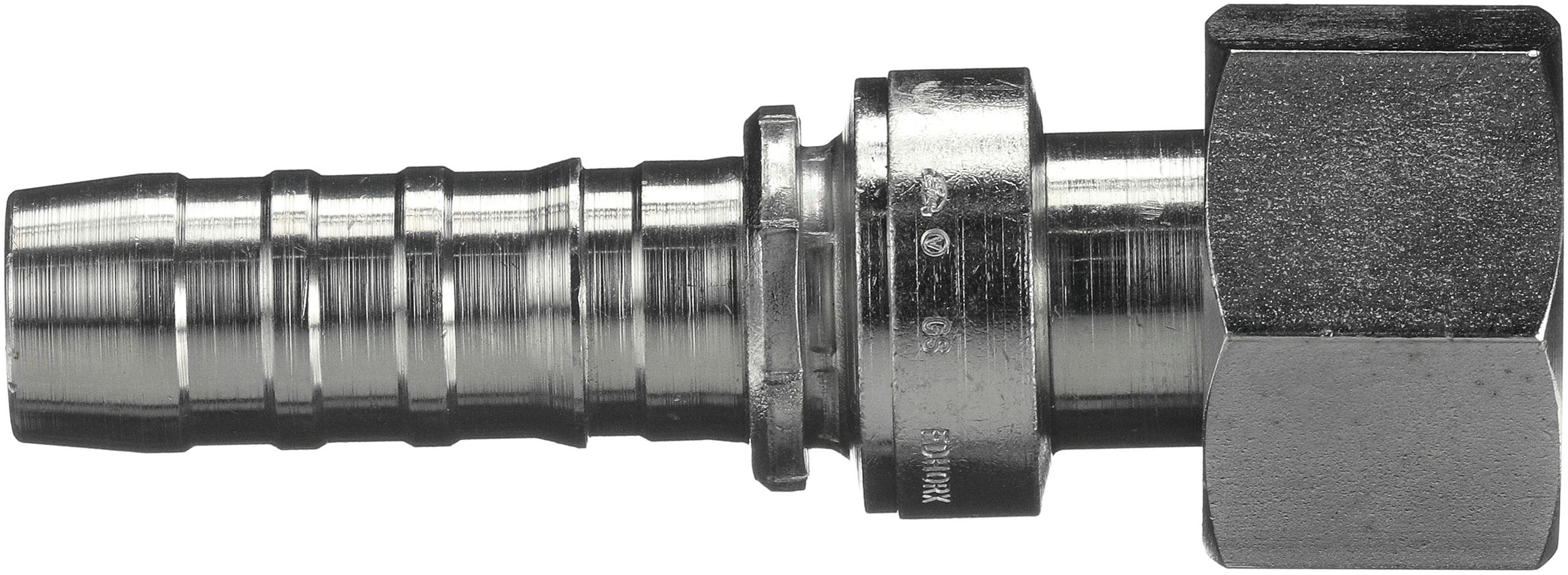

Hydraulic Coupling / Adapter Gates G20720-1625

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral)

Part # G20720-1625 | Line Code: GAT

Select store for pricing

Not Available

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Coupling Description	GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring

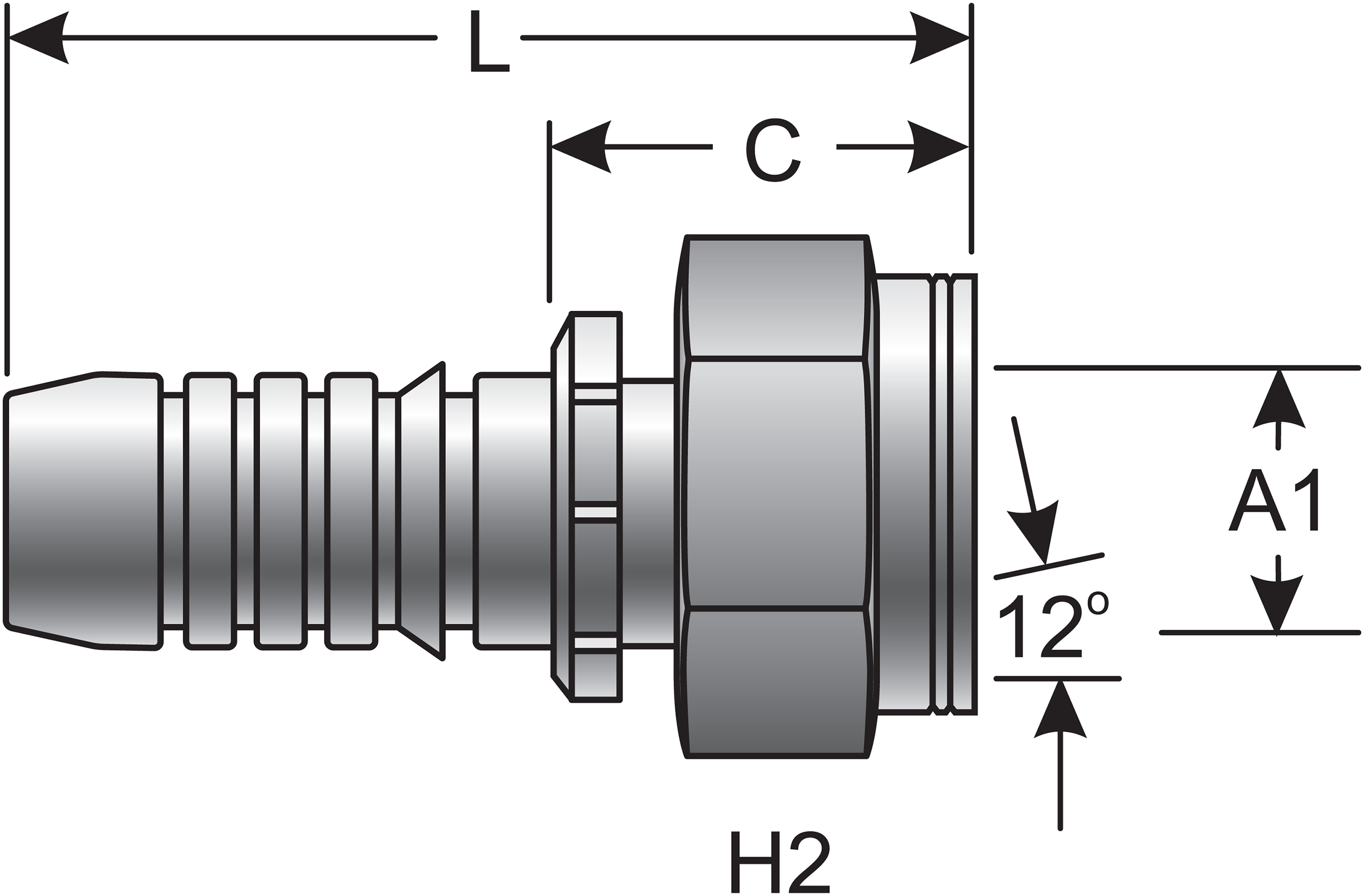

Cut Off (in) - C	2.35
Hose Inside Diameter (mm)	25.4
Heavy Duty Supplier	Yes
Hose Inside Diameter (in)	1
Thread Size	M36X2.0
Hose Recommendation	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Nut Hex (mm) - H2	46
Length	4.57
Inside Diameter	1
Length (in)	4.57
Length (MM)	116.1
Outside Diameter	25
Alliance Keywords	hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Tube Outside Diameter (mm) - A1	25
Cut Off (mm) - C	59.6
Industrial Description	16GS-25FDHORX
Part Terminology	Hydraulic Coupling / Adapter

Features & Benefits

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ﬂuid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
