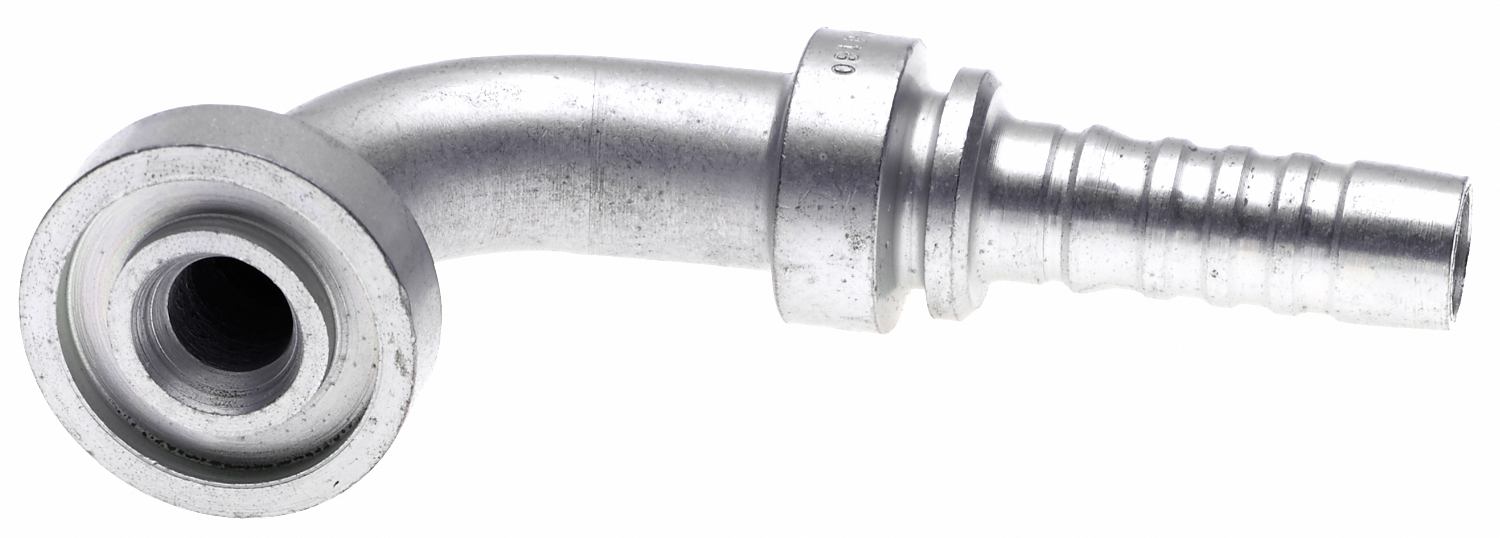

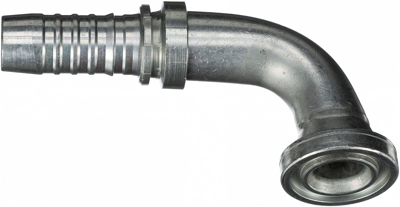

| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Cut Off (in) - C | 3.09 |
| Hose Inside Diameter (mm) | 25.4 |
| Maximum Working Pressure | 6000 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1 |
| Drop Length | 61 |
| Flange Thickness | .38 |
| Drop (in) - T | 2.4 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Head Thickness (in) - F | .38 |
| Length | 5.31 |
| Flange Diameter (mm) - M | 47.8 |
| Inside Diameter | 1 |
| Flange Diameter | 1.88 |
| Flange Head Thickness (mm) - F | 9.7 |
| Length (in) | 5.31 |
| Drop (mm) - T | 61 |
| Maximum Working Pressure (psi) | 6000 |
| Length (MM) | 134.9 |
| Flange Diameter (in) - M | 1.88 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 78.6 |
| Industrial Description | 16GS-16FLH90S |
| Part Terminology | Hydraulic Coupling / Adapter |
