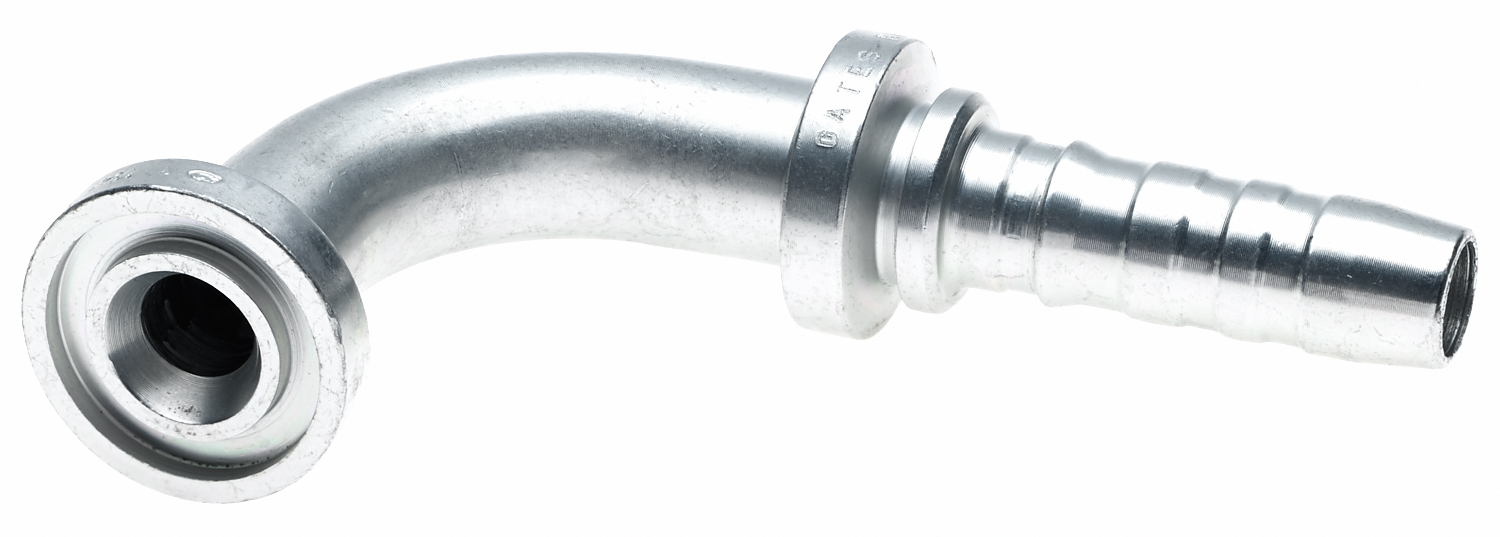

| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Cut Off (in) - C | 2.8 |
| Hose Inside Diameter (mm) | 19.1 |
| Maximum Working Pressure | 5000 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .75 |
| Drop Length | 125 |
| Flange Thickness | .27 |
| Drop (in) - T | 4.92 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Head Thickness (in) - F | .27 |
| Length | 4.8 |
| Flange Diameter (mm) - M | 38.1 |
| Inside Diameter | .75 |
| Flange Diameter | 1.5 |
| Flange Head Thickness (mm) - F | 6.9 |
| Length (in) | 4.8 |
| Drop (mm) - T | 125 |
| Maximum Working Pressure (psi) | 5000 |
| Length (MM) | 121.9 |
| Flange Diameter (in) - M | 1.5 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 71 |
| Industrial Description | 12GS-12FL90-125 |
| Part Terminology | Hydraulic Coupling / Adapter |
