| Burst Pressure | 800 |
| EN Specification | N/A |
| Dash Size | 12 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .75 |
| Coupling Recommendation | GLP, GLX, MegaCrimp |
| Inside Diameter | .75 |
| Minimum Burst Pressure (psi) | 800 |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Reinforcement | Spiral Braid |
| Maximum Working Pressure (psi) | 200 |
| ISO Specification | N/A |
| Hose Material | Nitrile - Type C |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 12RLA-30R2X25FT |
| Cover Color | Black |
| Temperature Rating | -40 Deg. F to +212 Deg. F, to +160 Deg. F (Air) |
| Minimum Bend Radius (in) | 6 |
| Inside Diameter (in) | .75 |
| Maximum Working Pressure | 200 |
| Color | Black |
| Vacuum (inHg) | 10 |
| Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Reinforcement Material | Spiral Braid |
| Type | Hydraulic Hose |
| Tube Material | Nitrile - Type C |
| Hose Outside Diameter (in) | 1.09 |
| Length | 25 |

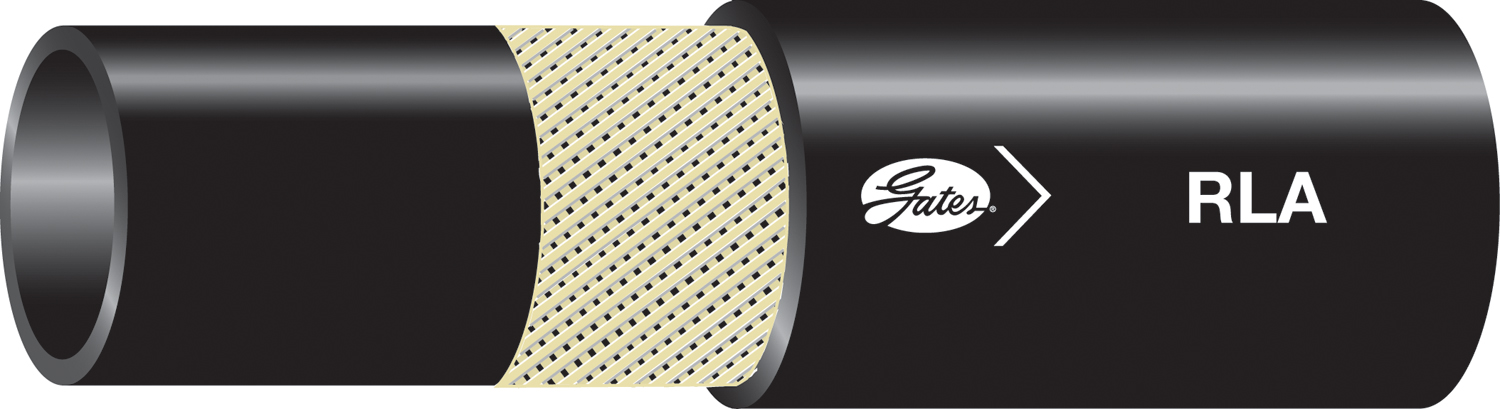

| Product Type | RLA 1-Fiber Braid Return Line & Low Pressure Hose |
| SAE Specification | 30R2 |
| Outside Diameter (In) | 1.09 |
| Temperature Range | -40 Deg. F to +212 Deg. F, to +160 Deg. F (Air) |
| Hose Pressure Description | Low Pressure |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Outside Diameter | 1.09 |
| Part Terminology | Hydraulic Hose |
