| Burst Pressure | 20300 |
| Dash Size | 12 |
| EN Specification | 856 R13 |
| Heavy Duty Supplier | Yes |
| Coupling Recommendation | GlobalSpiral |
| Inside Diameter | .75 |
| Minimum Burst Pressure (psi) | 20300 |
| Cover Material | Synthetic Rubber - Nitrile - Type C2 - Color Coded Layline |
| Reinforcement | Two Braid Layers, High-Tensile Steel Wire |
| Maximum Working Pressure (psi) | 5076 |
| ISO Specification | 18752 350DC, 3862 R13 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 12MXG5KXTPXREEL |
| Cover Color | Black |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Inside Diameter (in) | .75 |
| Minimum Bend Radius (in) | 4.7 |
| Maximum Working Pressure | 5076 |
| Color | Black |
| Material | Nitrile - Type C |
| Tube Description | Black, Synthetic Rubber |
| Reinforcement Material | Two Braid Layers, High-Tensile Steel Wire |
| Type | Hydraulic Hose |
| Tube Material | Nitrile - Type C |
| Hose Outside Diameter (in) | 1.16 |
| Length | 220 |

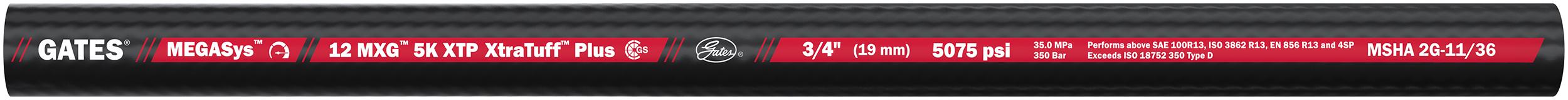

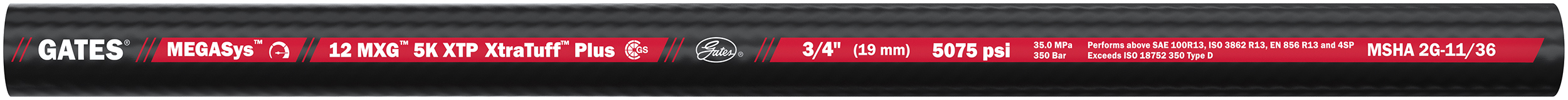

| Product Type | MXG 5K Wire Braid Hose - SAE 100R13 - XtraTuff Plus Cover |
| SAE Specification | 100R13 |
| Outside Diameter (In) | 1.16 |
| Temperature Range | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Hose Pressure Description | Extremely High Pressure |
| Cover Type | Nitrile - Type C - Oil, Flame, Abrasion & Weather Resistant - XtraTuff Plus Cover |
| Outside Diameter | 1.16 |
| Part Terminology | Hydraulic Hose |
