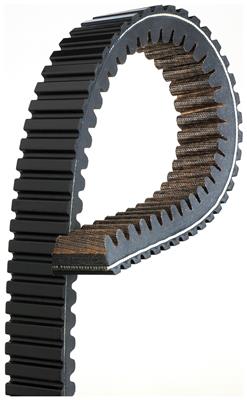

G-Force Redline Continuously Variable Transmission (CVT) Belt
Part # 50R4289 | Line Code: GAT
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Belt Material EPDM
Fabric Bottom Yes
Top Width (in) 1.499
Pitch Width (mm) 36.2
Heavy Duty Supplier Yes
Thickness (in) .657
Outside Circumference (mm) 1119
Notched Yes
PITCH LENGTH (MM) 1089.5
Cord Position (in) .165
Top Width 38
Pitch Length (in) 42.893
Construction Double Notched
THICKNESS (MM) 16.7
Outside Circumference 1119
Top Width (mm) 38
Color Black
Outside Circumference (in) 44.066
Pitch Width (in) 1.425
Cross Section Designation RVS-R
Section RVS-R
Thickness 16.7
Type Power Sport Specialty High Performance CVT Belt
Angle 25
OE Comparison Rating OE Improved
Bottom Material Yes
Cord Position (mm) 4.2
Cord Material Aramid
Grade Type OE Improved
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt

Features & Benefits
expand_more
Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gates’ innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

Application Summary
expand_more

2017 Polaris, RZR XP, 925cc, Drive
