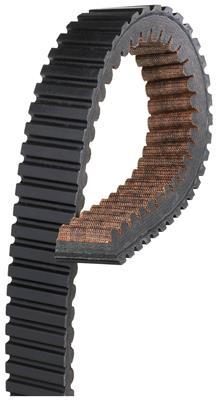

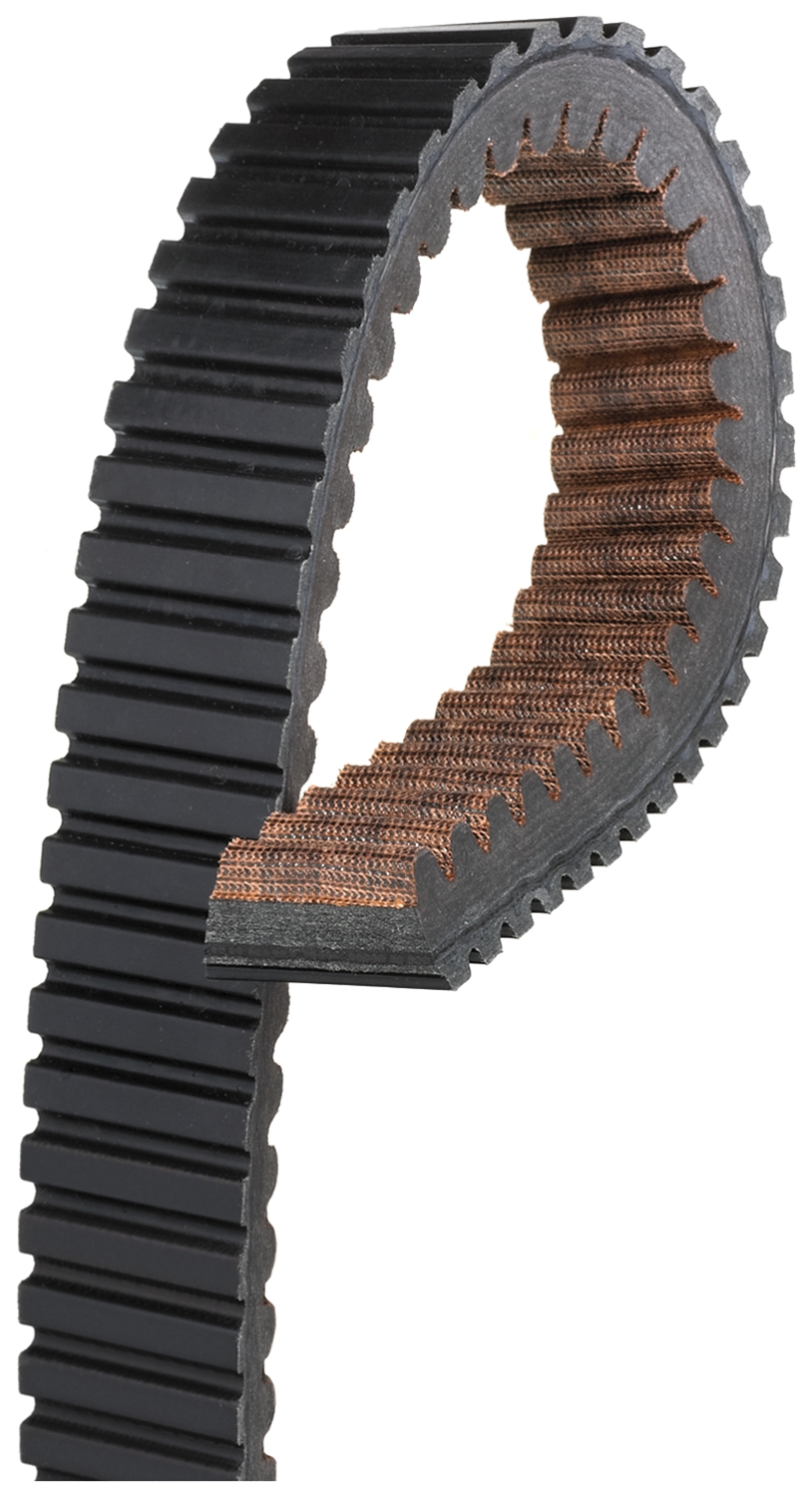

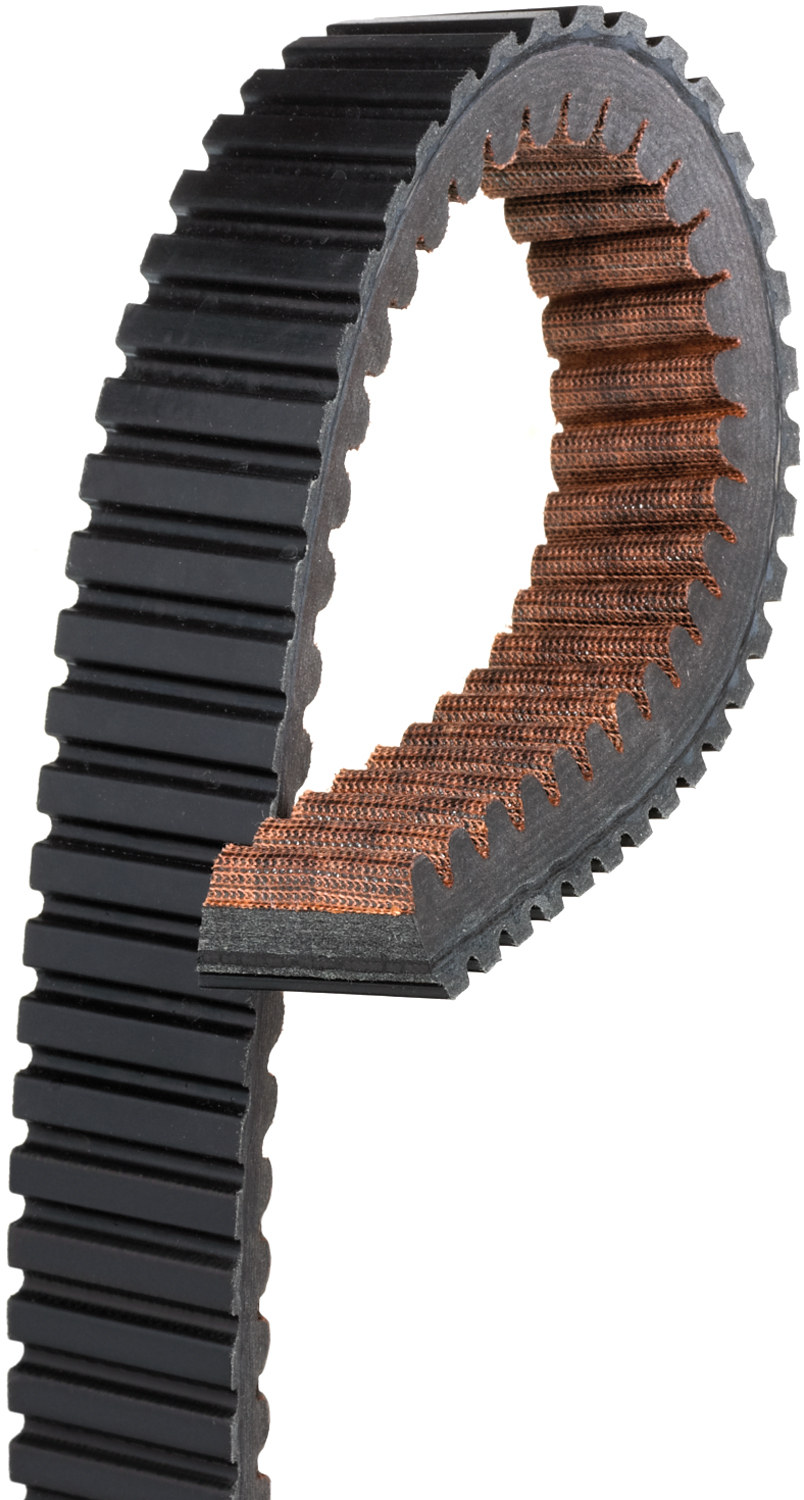

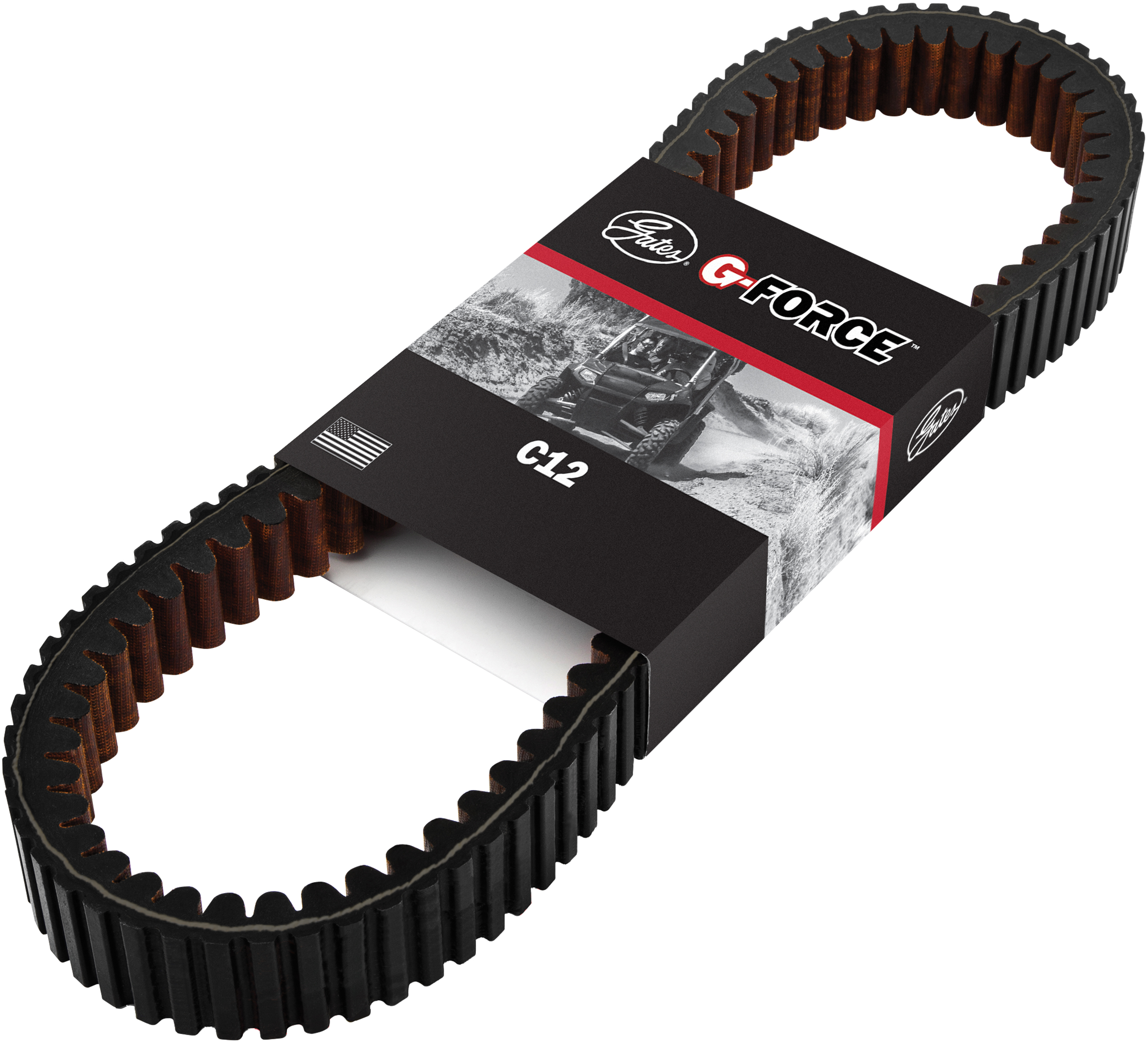

G-Force C12 Continuously Variable Transmission (CVT) Belt
Part # 43C4533 | Line Code: GAT
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Cross Section Designation RVS-R
Grade Type OE Improved
Outside Circumference 1181
Construction Double Notched
Type Power Sport High Performance CVT Belt
Belt Material Chloroprene
Top Width 37
Bottom Material Yes
Angle 28
OE Comparison Rating OE Improved
Notched Yes
Top Width (mm) 37
Top Width (in) 1.438
Outside Circumference (mm) 1181
Outside Circumference (in) 46.5
Section RVS-R
Fabric Bottom Yes
Cord Material Carbon
Heavy Duty Supplier Yes
Color Black
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt

Features & Benefits
expand_more
G-Force C12 belts were the first CVT belt utilizing carbon tensile cord for high modulus and extraordinary strength. This high-performance Neoprene and aramid fiber-loaded rubber belt offers Original Equipment technology. The advanced carbon tensile cords are surrounded by specially formulated adhesion gum to reduce edge cord pullout and increase belt life.

Application Summary
expand_more

2010 Polaris, 600 LX, 599cc, Drive
