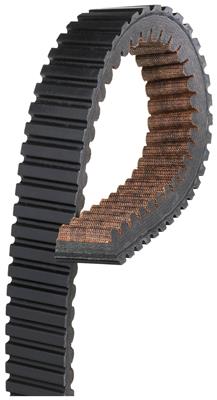

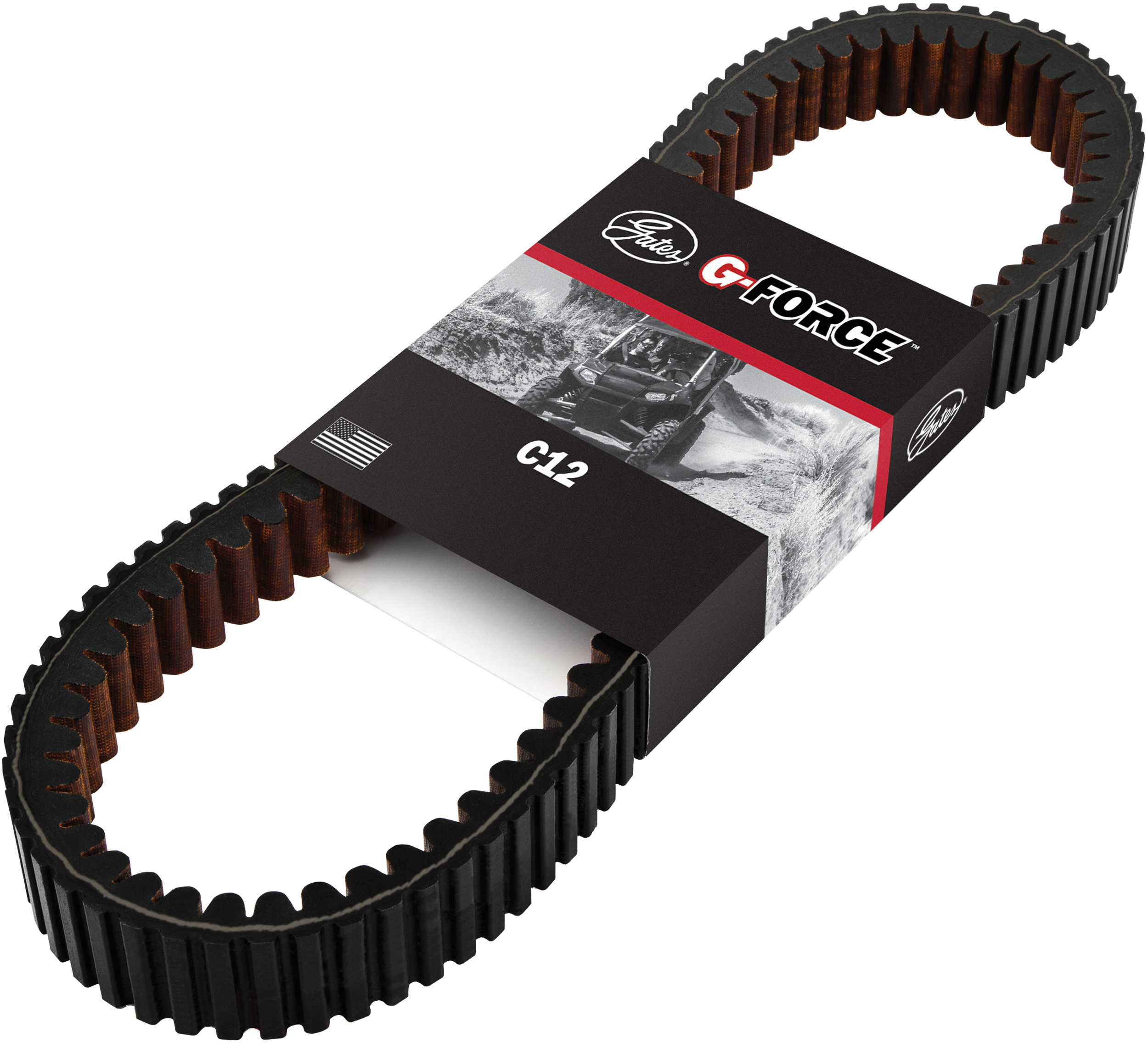

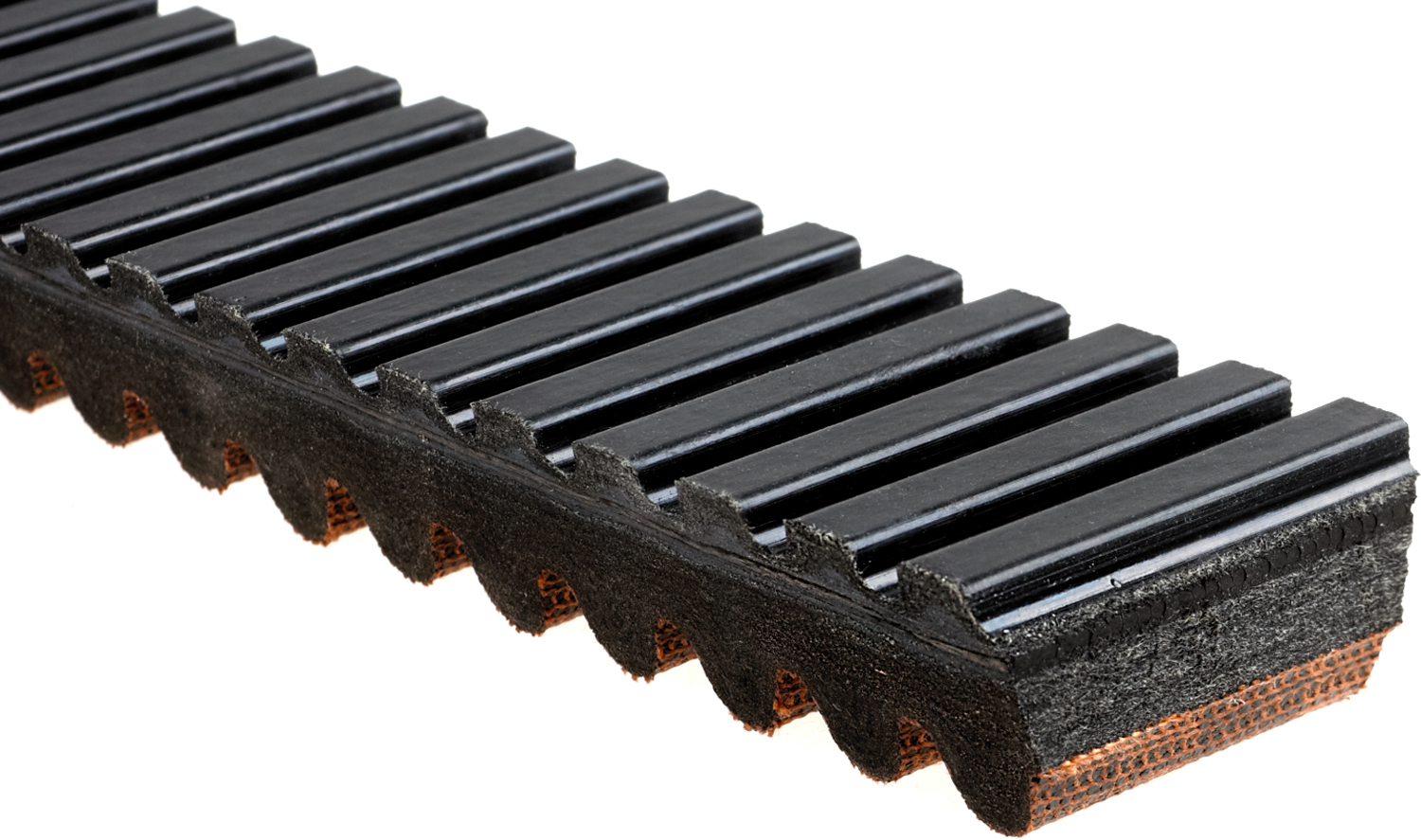

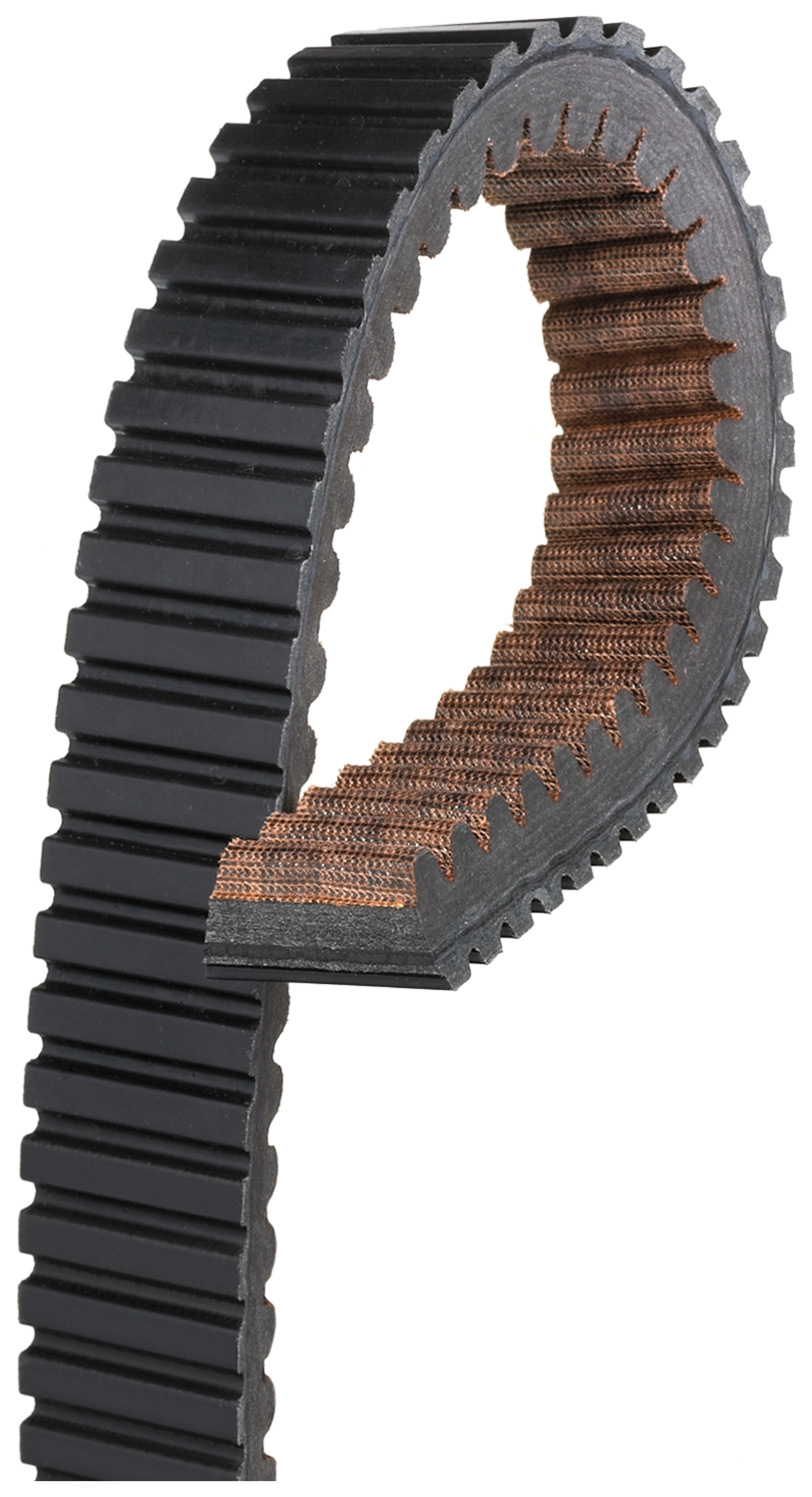

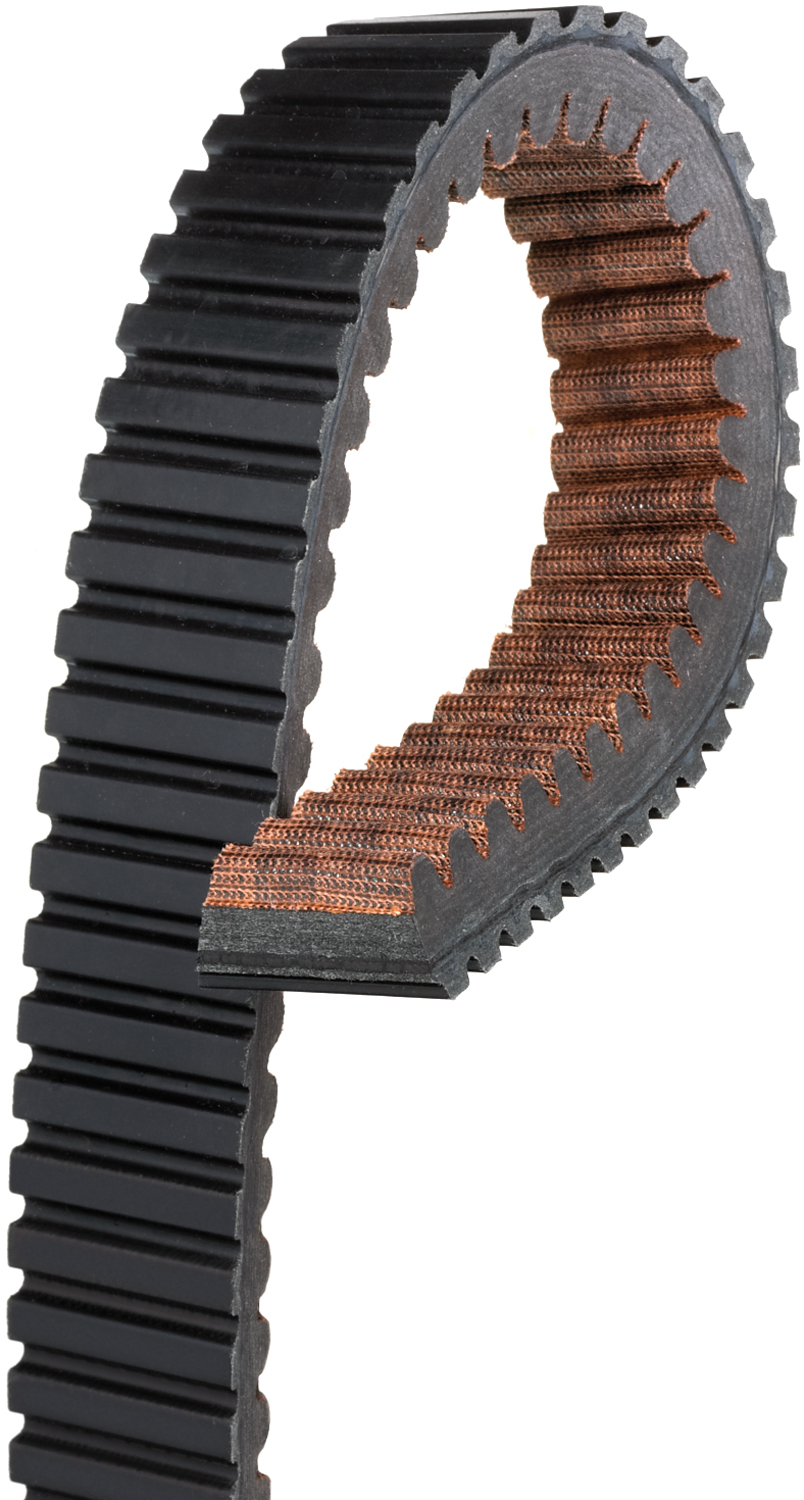

G-Force C12 Continuously Variable Transmission (CVT) Belt
Part # 43C4289 | Line Code: GAT
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Belt Material Chloroprene
Construction Double Notched
Fabric Bottom Yes
Top Width (in) 1.435
Outside Circumference 44.066
Top Width (mm) 36
Heavy Duty Supplier Yes
Color Black
Outside Circumference (in) 44.066
Cross Section Designation RVS-R
Outside Circumference (mm) 1119
Section RVS-R
Type Power Sport High Performance CVT Belt
Angle 26
OE Comparison Rating OE Improved
Notched Yes
Bottom Material Yes
Top Width 36
Cord Material Carbon
Grade Type OE Improved
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt

Features & Benefits
expand_more
G-Force C12 belts were the first CVT belt utilizing carbon tensile cord for high modulus and extraordinary strength. This high-performance Neoprene and aramid fiber-loaded rubber belt offers Original Equipment technology. The advanced carbon tensile cords are surrounded by specially formulated adhesion gum to reduce edge cord pullout and increase belt life.

Application Summary
expand_more

2011-09 Arctic Cat, Inc., Sno Pro 600, 599cc, Drive
