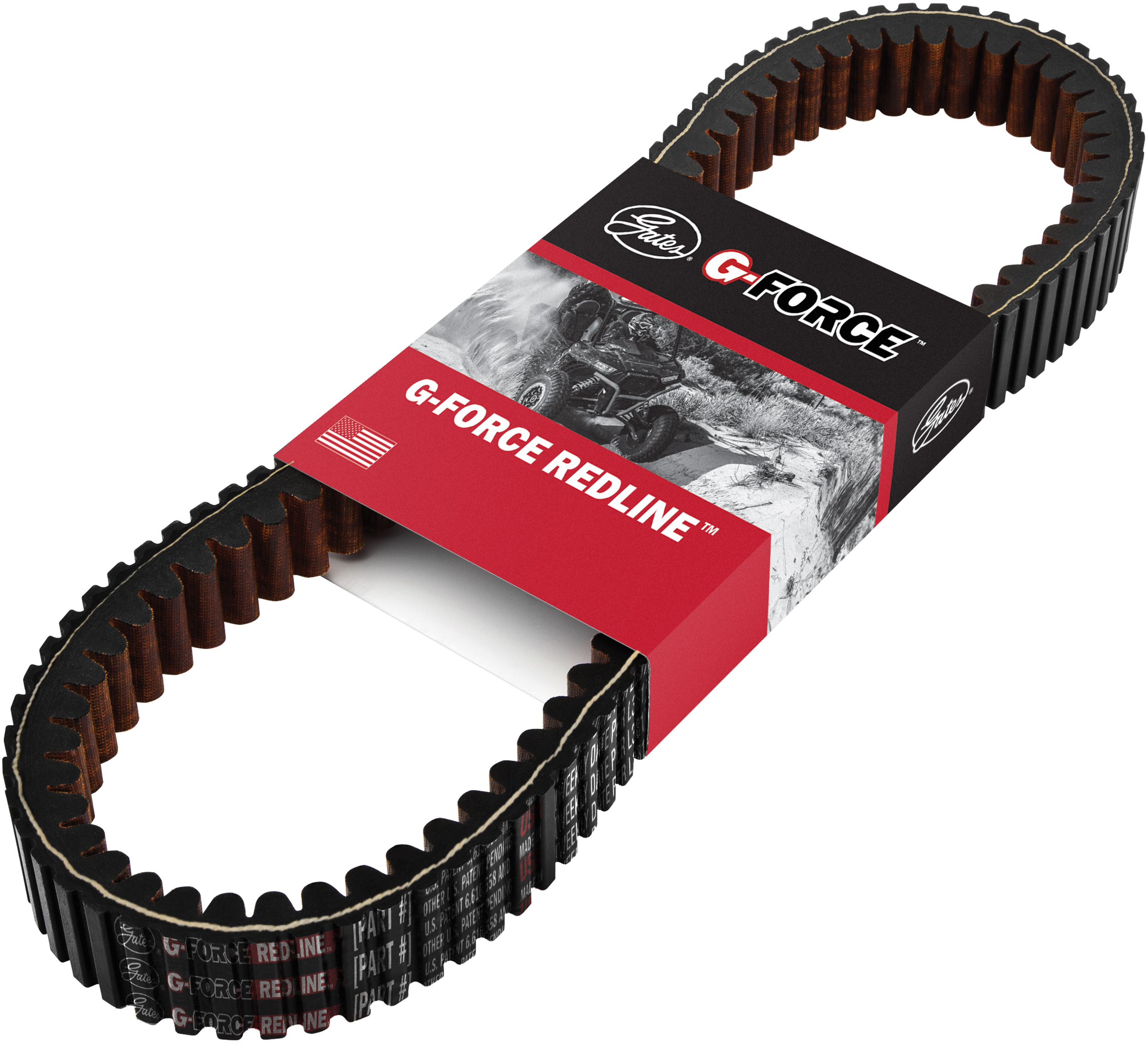

G-Force Redline Continuously Variable Transmission (CVT) Belt
Part # 28R3856 | Line Code: GAT
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Belt Material EPDM
Fabric Bottom Yes
Top Width (in) 1.277
Pitch Width (mm) 30
Heavy Duty Supplier Yes
Thickness (in) .597
Outside Circumference (mm) 980
Notched Yes
PITCH LENGTH (MM) 979.5
Top Width 32
Pitch Length (in) 38.562

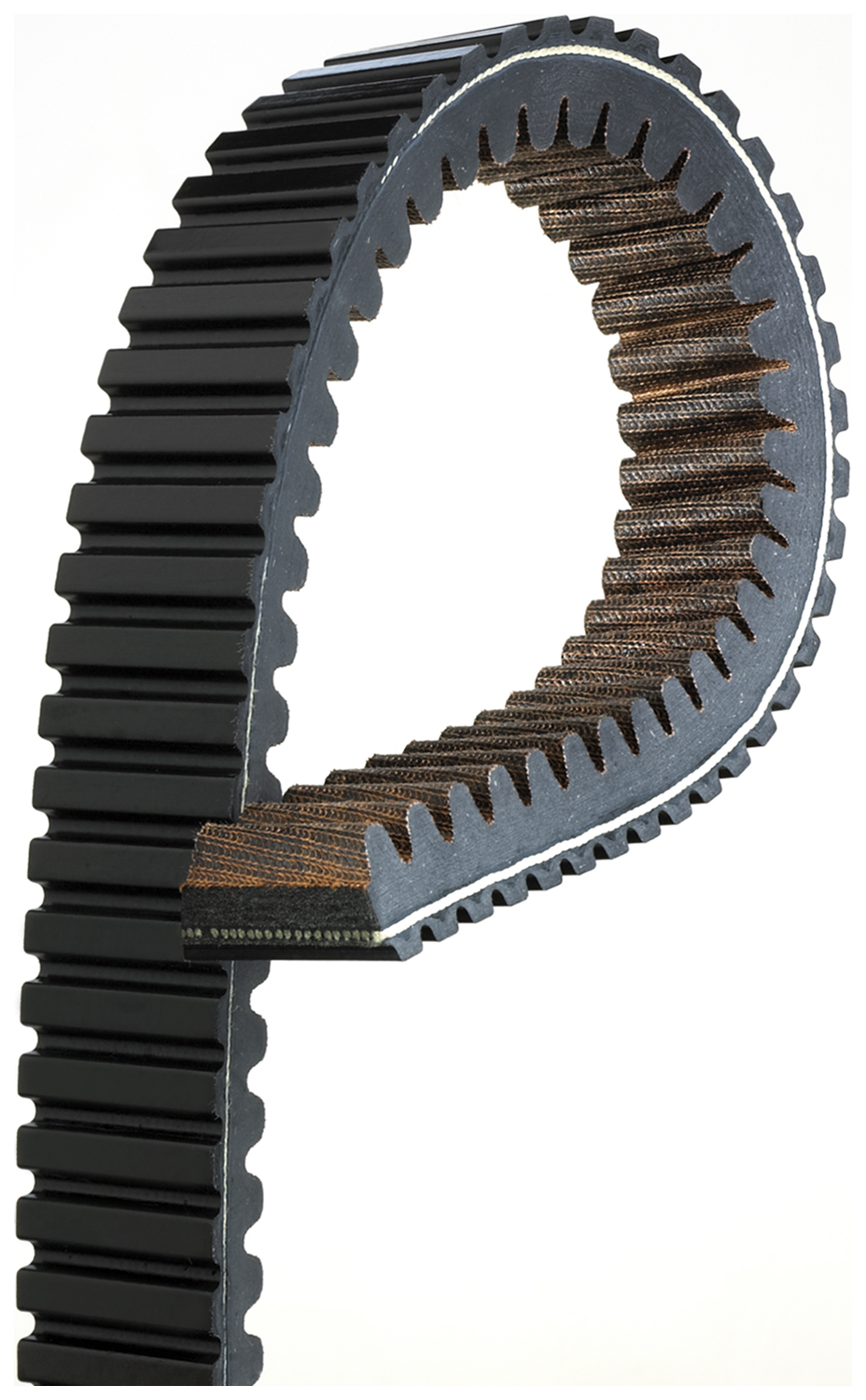

Construction Double Notched
THICKNESS (MM) 15.2
Outside Circumference 39.56
Top Width (mm) 32
Color Black
Pitch Width (in) 1.2
Outside Circumference (in) 39.735
Cross Section Designation RVS-R
Section RVS-R
Thickness .597
Type Power Sport Specialty High Performance CVT Belt
Angle 26
OE Comparison Rating OE Improved
Bottom Material Yes
Cord Material Aramid
Grade Type OE Improved
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt

Features & Benefits
expand_more
Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gates’ innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

Application Summary
expand_more

2020 Argo, Xplorer, 1000cc, Drive
