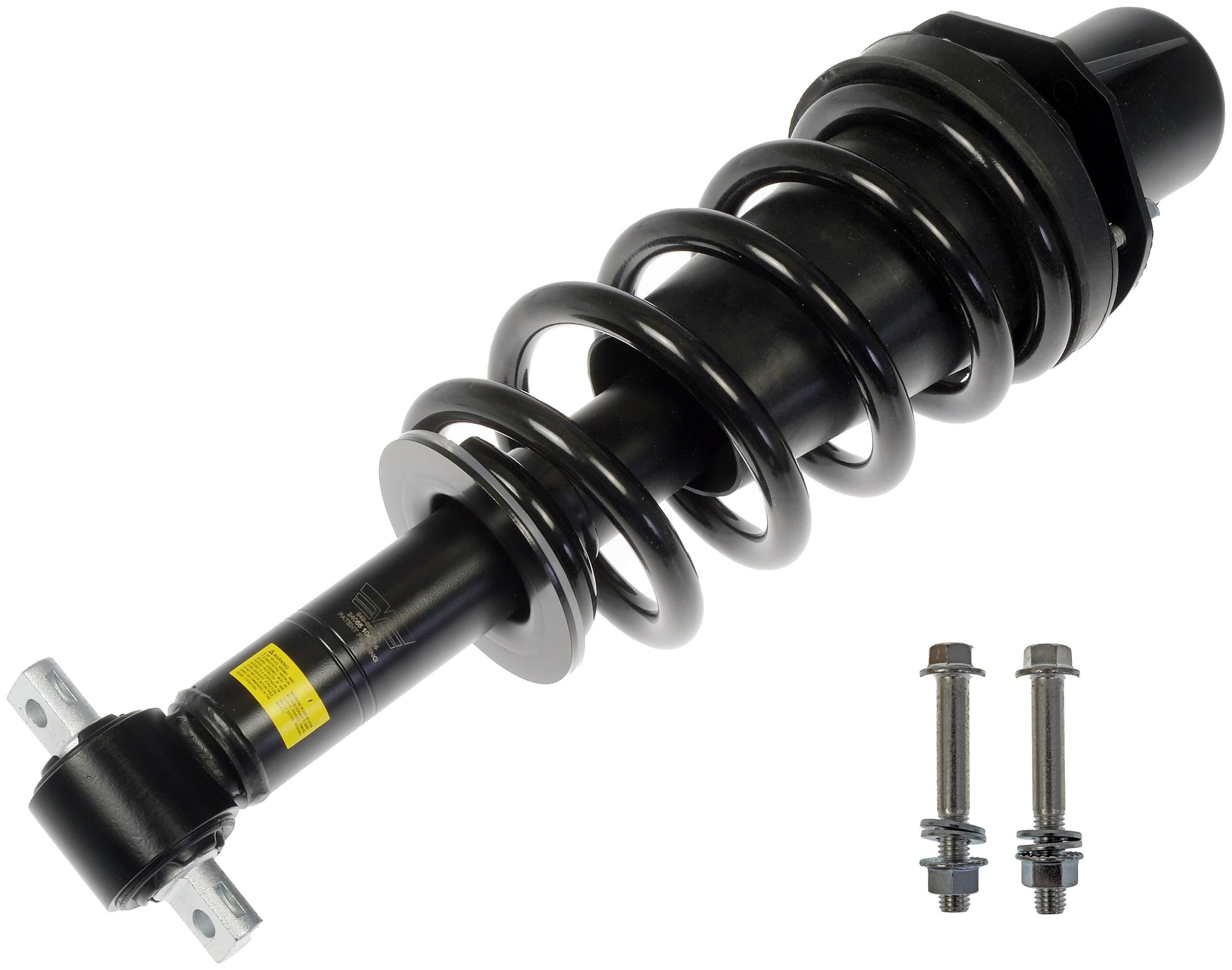

Loaded Magnetic Strut Assembly
Part # 949-650XD | Line Code: DOR
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Gas Charged Yes
Cylinder Outside Diameter 50
Relaxed Length 547.1
Contenidos del paquete 1 choque magnético
Heavy Duty Supplier Yes
Progressive Spring Rate No
Coil Spring Included Yes
Package Contents 4 Washers
Adjustable Dampening Yes
Body Length 547.1
Body Diameter 50
Shaft Material Steel
Dust Shield Included Yes
Boot Included Yes
Lower Mount Type T-Bar
Compressed Length 128
Spring Rate 93.2 N/mm
Mounting Hardware Included Yes
Internal Construction Type Single Tube
Adjustable Yes
Upper Mount Type bolt
Spring Material Steel
Adjustable Rebound Yes
Spring Coil Quantity 1
Travel Length 160
Cylinder Material Steel
Grade Type Standard Replacement
Part Terminology Suspension Strut and Coil Spring Assembly

Features & Benefits
expand_more
When an original equipment front strut and spring assembly fails on certain GMC, Chevrolet and Cadillac SUVs and trucks equipped with magnetic ride control, it's often due to fluid leaks that develop in the strut's top seal assembly. Over time and miles, the factory seals deteriorate from the friction, heat and fluid pressure generated during every compression and rebound cycle of the strut. Ultimately that continuous cyclic load leads to seal failure and with it a loss of damping effectiveness and overall suspension performance, and potentially a failed state inspection. This Dorman OE FIX loaded magnetic strut assembly features an innovative upgraded top seal design that prevents this common and costly cause of strut failure. Our patent-pending top seal block assembly absorbs impact pressure better by more effectively and efficiently relieving and restoring cyclic fluid pressure on demand, virtually eliminating the relentless and damaging internal fluid pressurization inherent in the original equipment's design. In addition, this assembly features more durable mounting points to help ensure long service life under the toughest conditions. And because this is a pre-assembled loaded assembly, installation does not require the risk and hassle of using a spring compressor.
