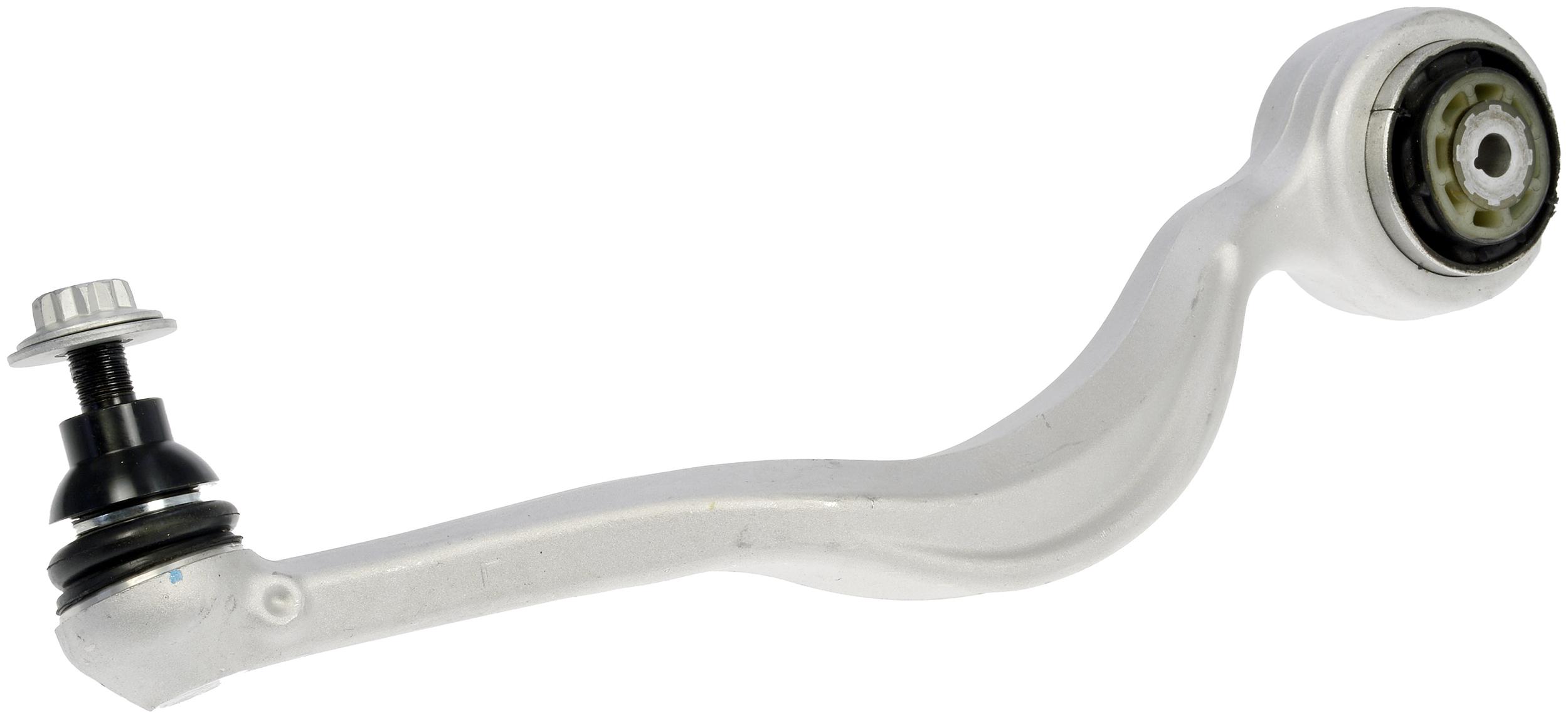

Suspension Control Arm And Ball Joint Assembly
Part # 526-572 | Line Code: DOR
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Bushing Inside Diameter 14.1
Ball Joint Included Yes
Thread Diameter 14
Bushing Color Black
Heavy Duty Supplier Yes
Mounting Hole Quantity 1
Control Arm Color Black
Steering Type Manual
Suspension Grade Type Standard Replacement
Pre Greased Yes
Control Arm Type Casting/Forged
Thread Size 14 mm
Bushing Length 80
Paso de rosca 1,5mm
Cone Outside Diameter 32.72
Adjustable No
Ball Joint Stud Length 24
Thread Direction Clockwise (Right)
Boot Color Black
Bushings Included Yes
Locking Nut Included Yes
Reinforced No
Grease Fitting Included No
Ball Joint Stud Type Threaded
Attachments Included No
Contenidos del paquete 1 brazo de suspensión
Ball Joint Mounting Type Machined
Ball Joint Thread Diameter 16
Control Arm Material Steel
Mounting Hole Diameter 14.1
Package Contents 1 Nut
Diámetro la rosca de extremo 1 14 mm
Greasable No
End 1 Thread Pitch 1.5
Castle Nut Included No
Diámetro de rosca de rótula (mm) 16mm
Finish Powder Coated
End 1 Thread Diameter 14
Bearing Material Polymer
Bushing Material Steel
Cotter Pin Included No
Mounting Hardware Included Yes
Articulación de rótula instalada
End 1 Thread Size 14 mm
Control Arm Maximum Width 80
Boot Material Polychloroprene
Length 447
Thread Pitch 1.5 mm
Control Arm Maximum Length 447
Dust Boot Yes
Tipo de brazo de control Fundición/forjado
Espacio de la rosca del extremo 1 1,5mm
Diámetro de la rosca 14 mm
Ball Joint Installed Yes
Grade Type Standard Replacement
Part Terminology Suspension Control Arm and Ball Joint Assembly

Features & Benefits
expand_more
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
