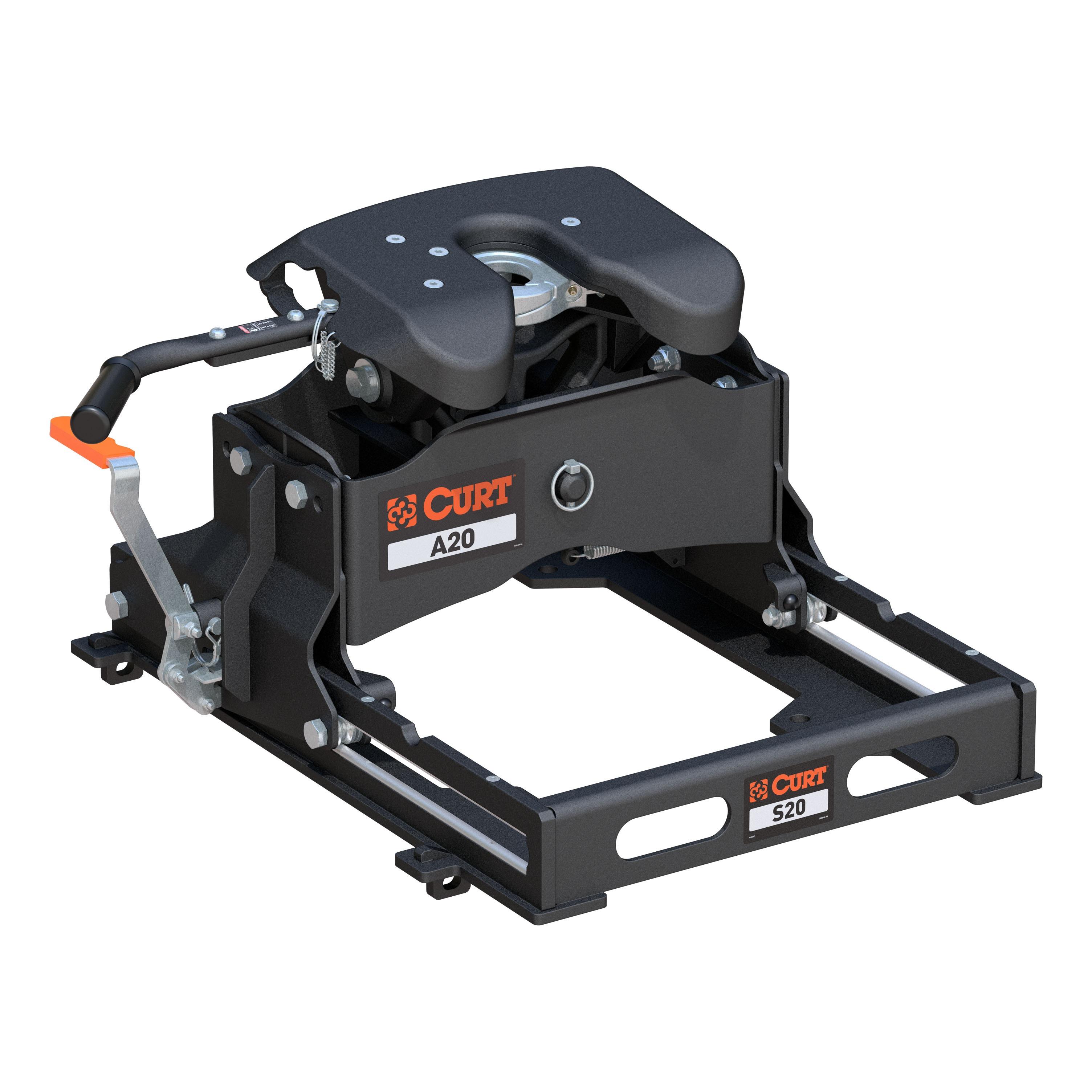

A20 Sliding 5th Wheel Hitch, 20,000 lbs.
Part # 16531 | Line Code: CUR
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Sales Family Code - XA FIFTH
Sales Family Description - XA FIFTH WHEEL
Sales Group Description - XA FIFTH WHEEL ROLLERS
Gross Trailer Weight (GTW) 20,000 LB
Retail Width - XA 28.350
Retail Length - XA 46.710
Shipping Weight - XA 211.360
Title A20 Sliding 5th Wheel Hitch, 20,000 lbs.
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rate Class - XA 70.0
Item Length - XA 0.000
Product Weight - XA 0.000
Item Height - XA 0.000
Class ID 0
Item Width - XA 0.000
Item Class - XA OBS
Box Width in Inches - XA 0
Box Height in Inches - XA 0
Box Length in Inches - XA 0
Finish - XA CARBIDE BLACK POWDER COAT
Parcel Allowed - XA No
Vertical Load 5,000 LB
Retail Height - XA 14.500
Heavy Duty Supplier Yes
Container Cases Qty - XA 0
Container Pallet Qty - XA 0
Container Unit Qty - XA 0
Container Volume Cubic Feet - XA 0.00000
Container Volume Cubic Meter - XA 0.00000
Container Weight KG - XA 0
Container Weight Lbs - XA 0
Master Case Height Inches - XA 0.000
Master Case Inner Pack Qty - XA 0
Master Case ITF14 0
Master Case ITF14 - XA 0
Master Case Length Inches - XA 0.000
Master Case Qty - XA 0
Master Case Volume Cubic Feet - XA 0.00000
Master Case Weight Lbs - XA 0.000
Master Case Width Inches - XA 0.000
Pallet Case Per - XA 0
Pallet Case Per Layer - XA 0
Pallet Cases Per - XA 0
Pallet Cases Per Layer - XA 0
Pallet Layer of Cases - XA 0
Pallet Qty - XA 0.000
Pallet Total Height Inches - XA 0.000
Pallet Total Weight Per - XA 0.000
Prop 65 Label Text - XA WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Reason - XA Phthalates
Prop 65 Warning Label Type - XA Cancer and Birth Defect Causing
Prop 65 Warning Y/N - XA YES
Truckload Cases Qty - XA 0
Truckload Pallets Qty - XA 0
Truckload Units Qty - XA 0
Truckload Volume Cubic Feet - XA 0.00000
Truckload Weight - XA 0
Material - XA Carbon Steel
Tariff 301 - XA Yes
Side Application Type Description - XA Not Applicable
Mount Type Description - XA Not Applicable
Prop 65 Material - XA Di(2-ethylhexyl) phthalate
Part Terminology Fifth Wheel Trailer Hitch

Features & Benefits
expand_more
The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A20 5th wheel hitch head comes with the CURT S20 slider to be mounted in a short-bed truck using 5th wheel base rails and a bracket kit (base rails and brackets sold separately). CURT 5th wheel sliders are built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the slider installed, you can safely move the coupling point 12\" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. Once installed, the A20 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A20 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.
