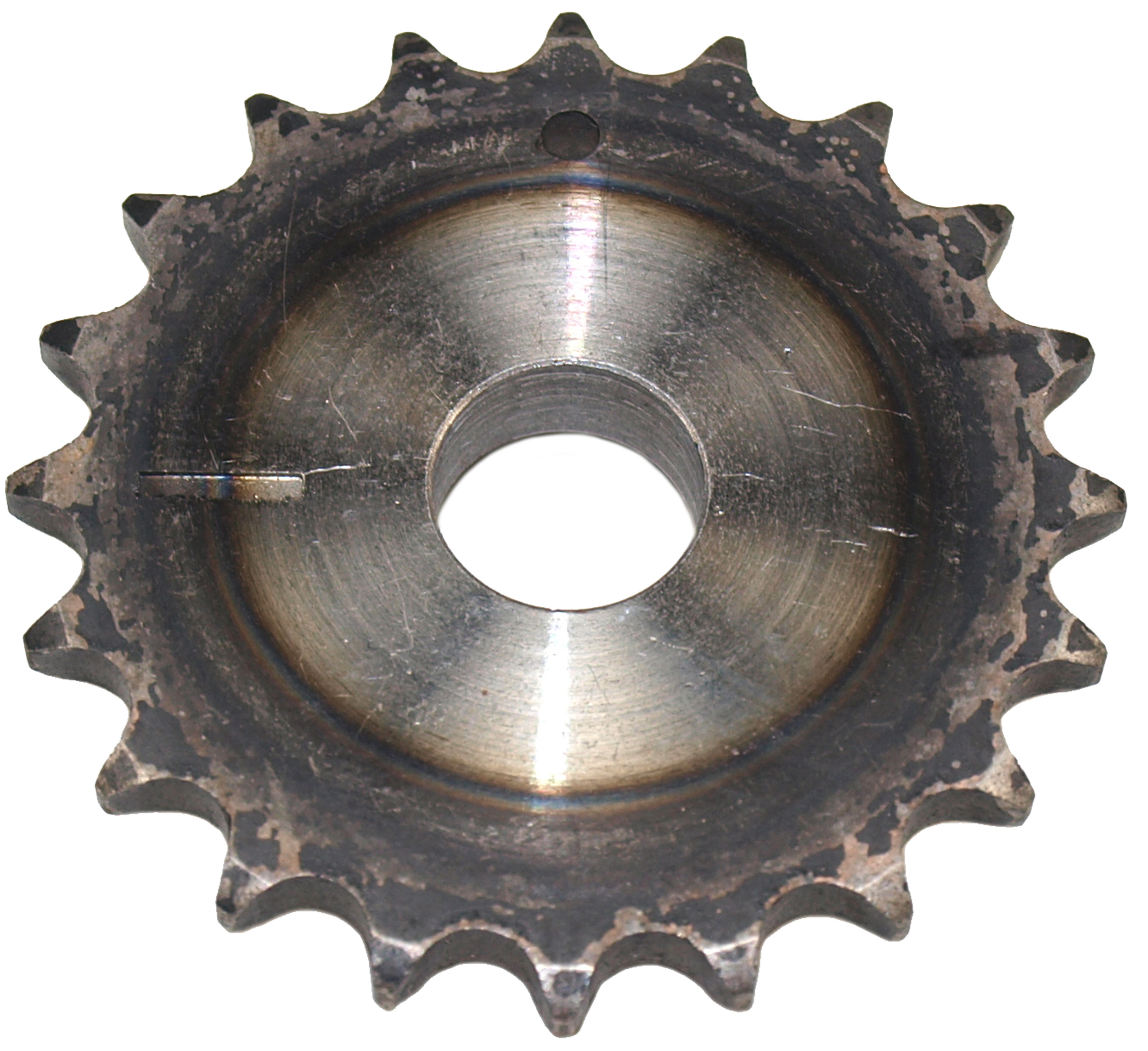

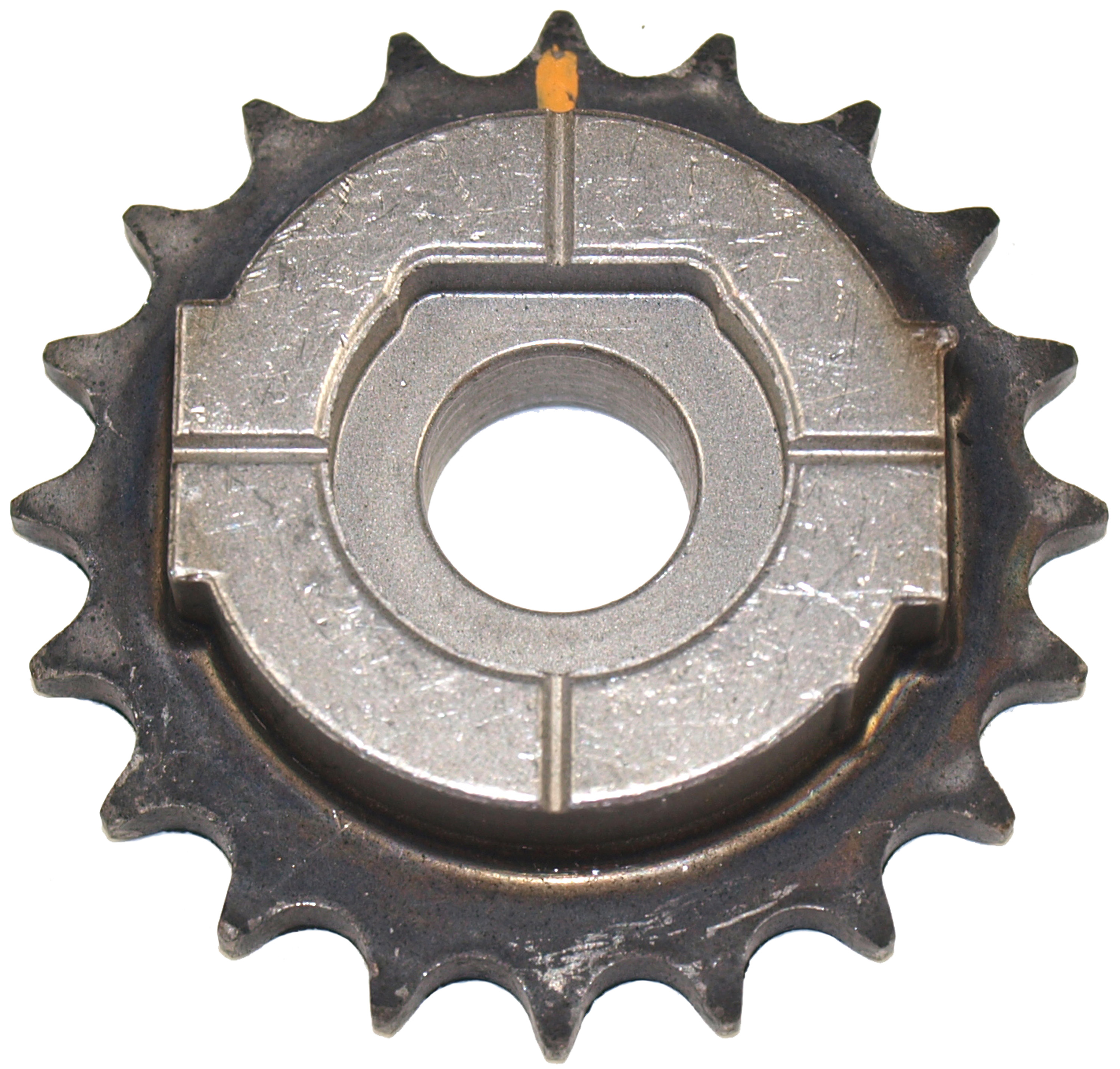

Engine Balance Shaft Sprocket
Part # S1110 | Line Code: CLO
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Width (uom:mm) 11.7856
Keyway Notch Yes
Mounting Hole Quantity 1
Tooth Quantity 20
Material Metal
Mounting Hole Diameter (uom:in) 0.506
Timing Mark Quantity 1
Tooth Width (uom:mm) 4.4196
Chain Row Quantity 1
Inside Diameter (uom:mm) 12.8524
Inside Diameter (uom:in) 0.506
Width (uom:in) 0.464
Outside Diameter 52.959
Tooth Width (uom:in) 0.174
Chain Type Roller
Part Terminology Engine Balance Shaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. In some applications the engine balance shaft sprocket can be a critical component or adjacent to the engine’s timing system. Cloyes engine balance shaft sprockets are precision-tooled with exact tooth geometry, a perfectly matched bore, off-set and timing index for a superior fit, reliability, and long-term performance. To ensure total system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
