| Thread Pitch to Wheel Mounting | 1.5 |
| Product Grade [cntrc] | Premium |
| Mounting Thread Size | M10 |
| Heavy Duty Supplier | Yes |
| Attribute ID (Type) | California Proposition 65 |
| Wheel Pilot Diameter | 2.556 |
| Bolt Circle Diameter MM | 110.01 |
| Inner Mount Pilot [cntrc] in | 2.752 |
| Mounting Thread Pitch [cntrc] mm | 1.250 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 12.000 |
| Thread Pitch to Wheel Mounting [cntrc] mm | 1.500 |
| Bolt Circle Diameter in | 4.331 |
| Bolt Circle Diameter [cntrc] in | 4.331 |
| Off-Set [cntrc] in | 68.020 |
| Bolt Circle Diameter [cntrc] mm | 110.010 |
| Brake Pilot Diameter | 2.575 |
| Off-Set [cntrc] mm | 2.678 |
| Notes [cntrc] | Flange Holes 2x 0.495, 1x 0.418// Retaining Hole 1x M6-1.0, ABS Inner Cover W/Connector |
| Wheel Studs Included | Yes |
| Mounting Thread Pitch | 1.25 |
| Mouting Thread Size [cntrc] mm | 10.000 |
| Off-Set (inch) | 68.02 |
| Inner Mount Pilot [cntrc] mm | 69.900 |
| Flange Diameter | 139.880 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm |
| Mounting Hole Qty [cntrc] | 4 |

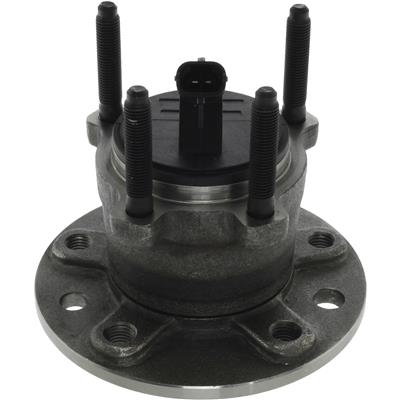

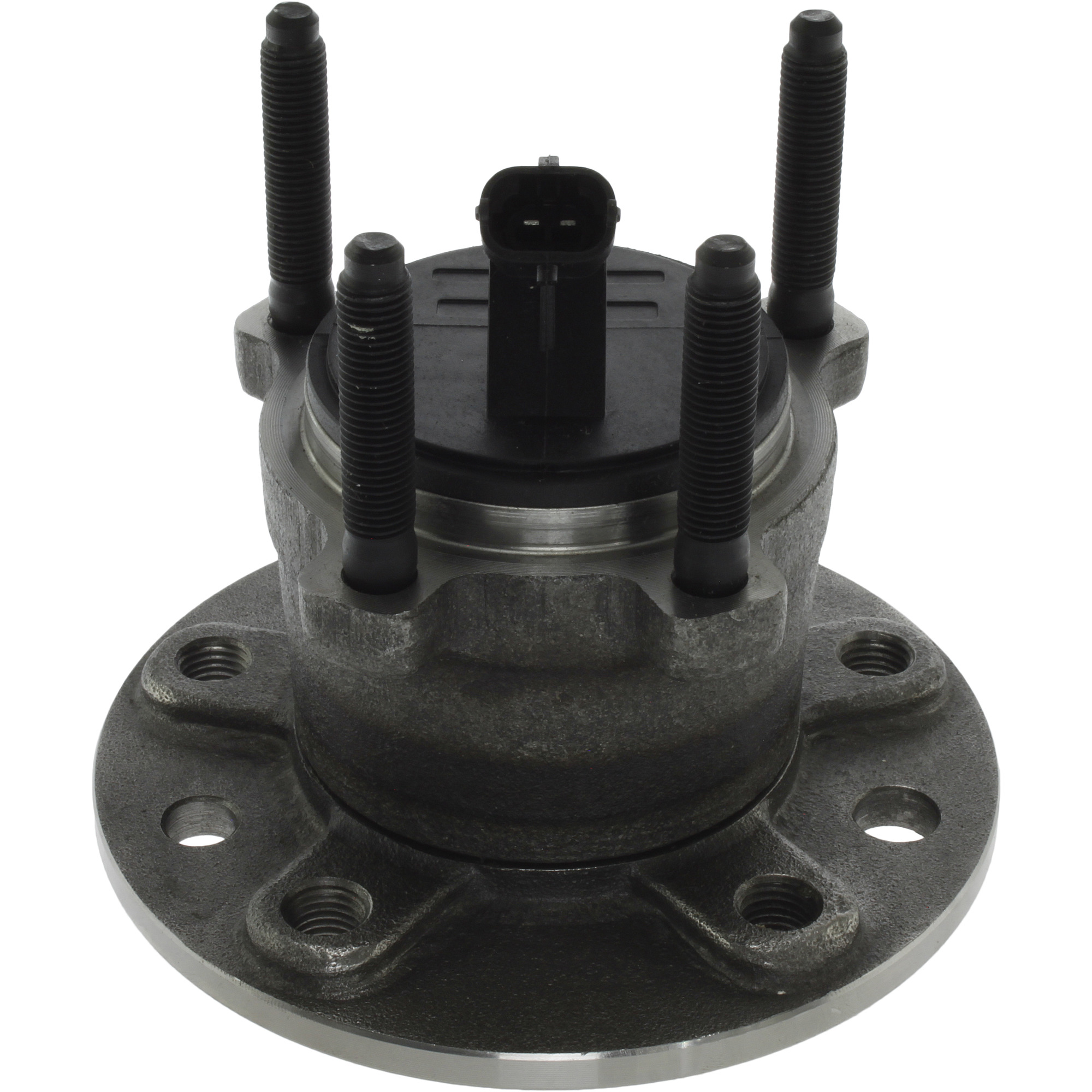

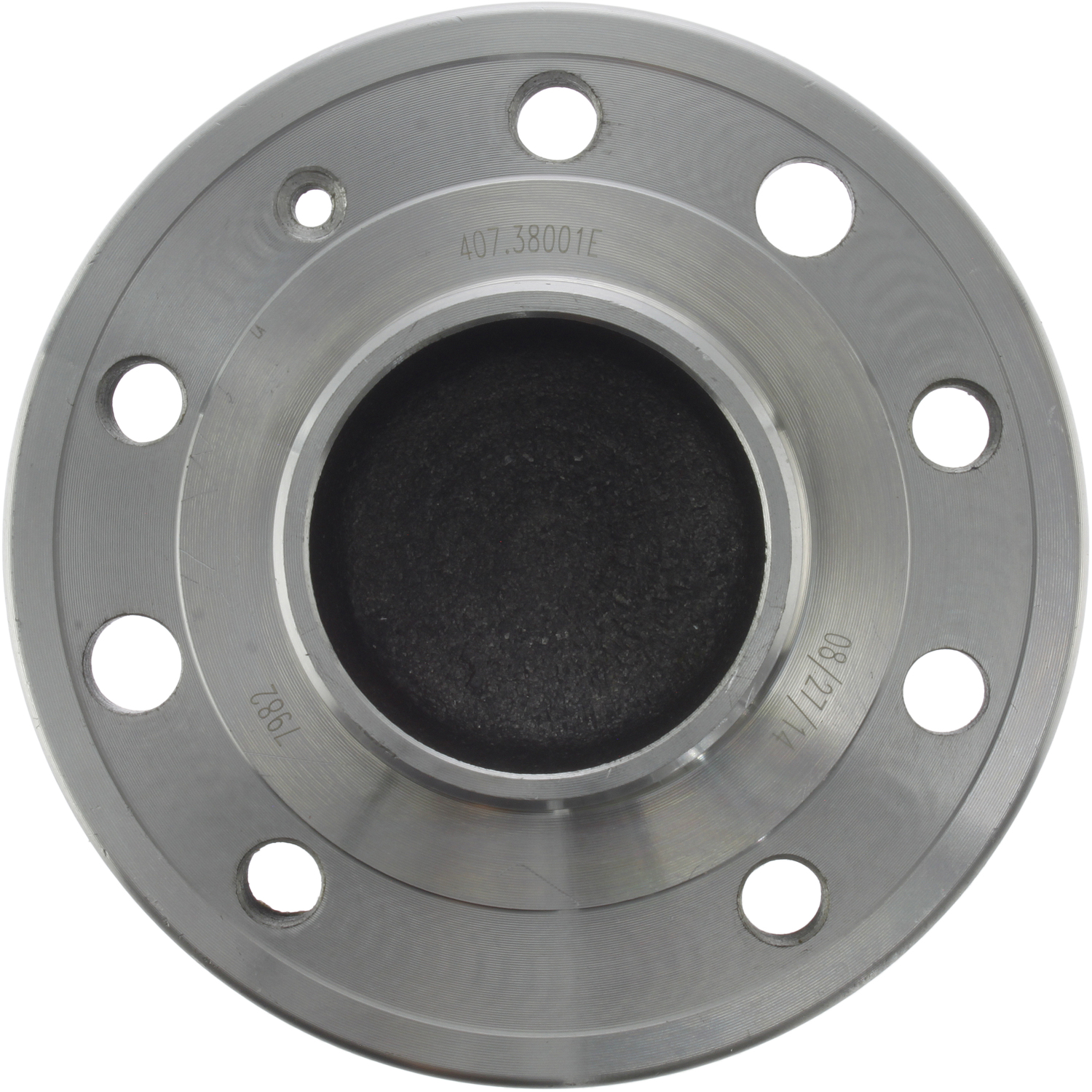

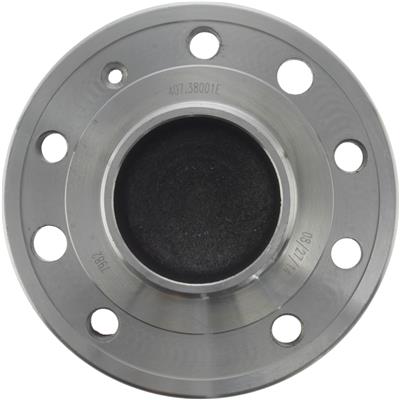

| Part Terminology | Wheel Bearing and Hub Assembly |
