In Store Pickup Available
| Housing Material | Plastic |
| Mounting Hole Quantity | 3 |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Terminal Gender | Male |
| Connector Color | Black |
| Connector Quantity | 5 |
| Is Or Contains A Battery | No |
| Housing Width (in) | 8.34 |
| Product Condition | Remanufactured |
| Terminal Type | Blade Pin |
| Housing Height | 2.525 |
| FAA_A6 | The BCM may communicate with other modules over a variety of protocols or buses, depending on the vehicle. There may be some other modules that a BCM interacts with over a local network for simpler functions. Some types of BCMs interact with other modules over several different protocols (Example: totally integrated power modules). |
| FAA_A7 | The BCM is often part of an anti-theft / immobilizer system. Some vehicles have separate modules for theft-deterrent and immobilizer functions. |
| Contains Electronic Components? | Circuit Board |
| FAA_A4 | Some BCMs require special tools to meet programming, relearn and installation requirements while others are plug and play and do not have any special installation procedures or requirements. The best practice when installing a BCM is to refer to a vehicle specific service manual for d proper module replacement procedures. |
| FAA_A5 | Most BCMs need to be programmed by the remanufacturer or a shop equipped with the proper tools. If the replacement BCM needs programming, it must be programmed with the latest operating software and vehicle calibrations. Failure to do so may result in a no-start situation or cause certain vehicle functions to operate incorrectly. The best practice when installing a BCM is to refer to a vehicle specific service manual for proper module replacement procedures. |
| Connector Shape | Rectangular |
| Mounting Type | Bolt On |
| FAA_A2 | Yes, there are several different types of BCMs. The BCM controls the main functions of the body; however there are some BCM types that have body control functions but were given different names because they may also include other specific functions. For example, Ford vehicles have central timer, general electronic and lighting control modules. Chrysler uses both "body control module" and "totally integrated power module" to describe their BCMs. GM has always called their BCM a "body control module." |
| FAA_A3 | BCMs control power accessories, courtesy lighting, central locking, remote keyless entry, passive start and entry, tire pressure monitoring and immobilizer systems. |
| FAA_A1 | A body control module is an electronic control unit that monitors and controls various electronic accessories throughout the body of the vehicle. |
| Housing Length | 8.675 |
| Flash Programming Required | No |
| Prop 65 | NO |
| Flashable | No |
| E-Waste | Yes |
| Is Item A Chemical | No |
| FAQ_Q5 | Does the replacement BCM need programming? |
| FAQ_Q4 | Do I need special tools to install the replacement BCM? |
| Programming Required | No |
| Features and Benefits | Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%. |
| Removable PROM | No |
| Is or contains a bulb? | No |
| FAQ_Q7 | Is the BCM part of the anti-theft system? |
| FAQ_Q6 | Does the BCM communicate with other modules? |
| FAQ_Q1 | What is a Body Control Module (BCM)? |
| FAQ_Q3 | What does a BCM control? |
| FAQ_Q2 | Are there different types of BCMs? |
| Module Housing Material | Plastic |
| Package Contents | Module; Instruction Sheet |
| Does it require SDS | No |
| Terminal Quantity | 185 |
| Is item a chemical? | No |
| SDS Required | No |
| Bolt on Mounting | Yes |
| Housing Height (In) | 2.525 |
| Is the item CARB affected? | No |
| Connector Gender | Female |
| Housing Width | 211.84 |
| Is Or Contains A Bulb | No |
| Is or contains a battery? | No |
| Housing Color | Black |
| Contains Electronic Components | Circuit Board |
| Housing Length (in) | 8.675 |

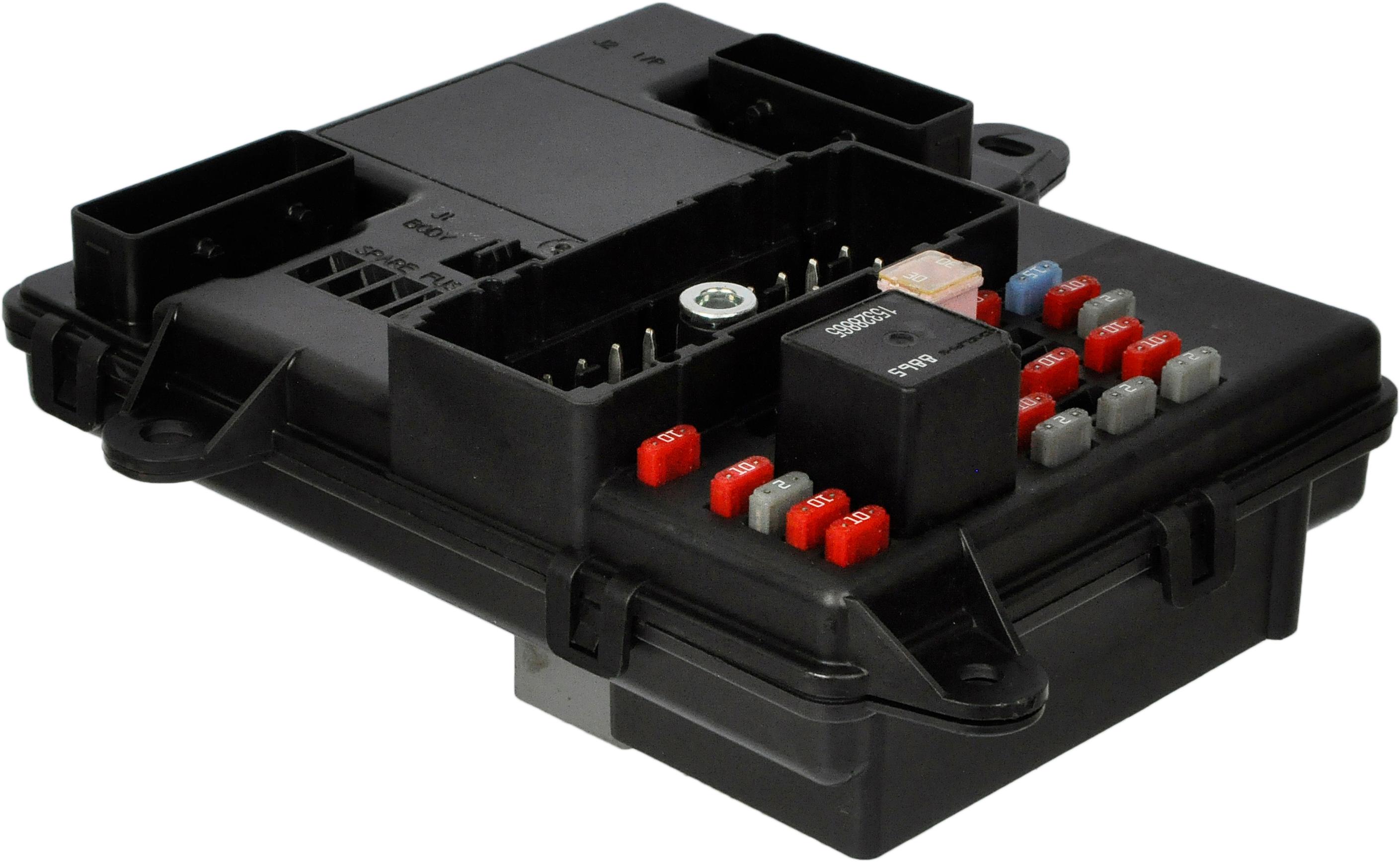

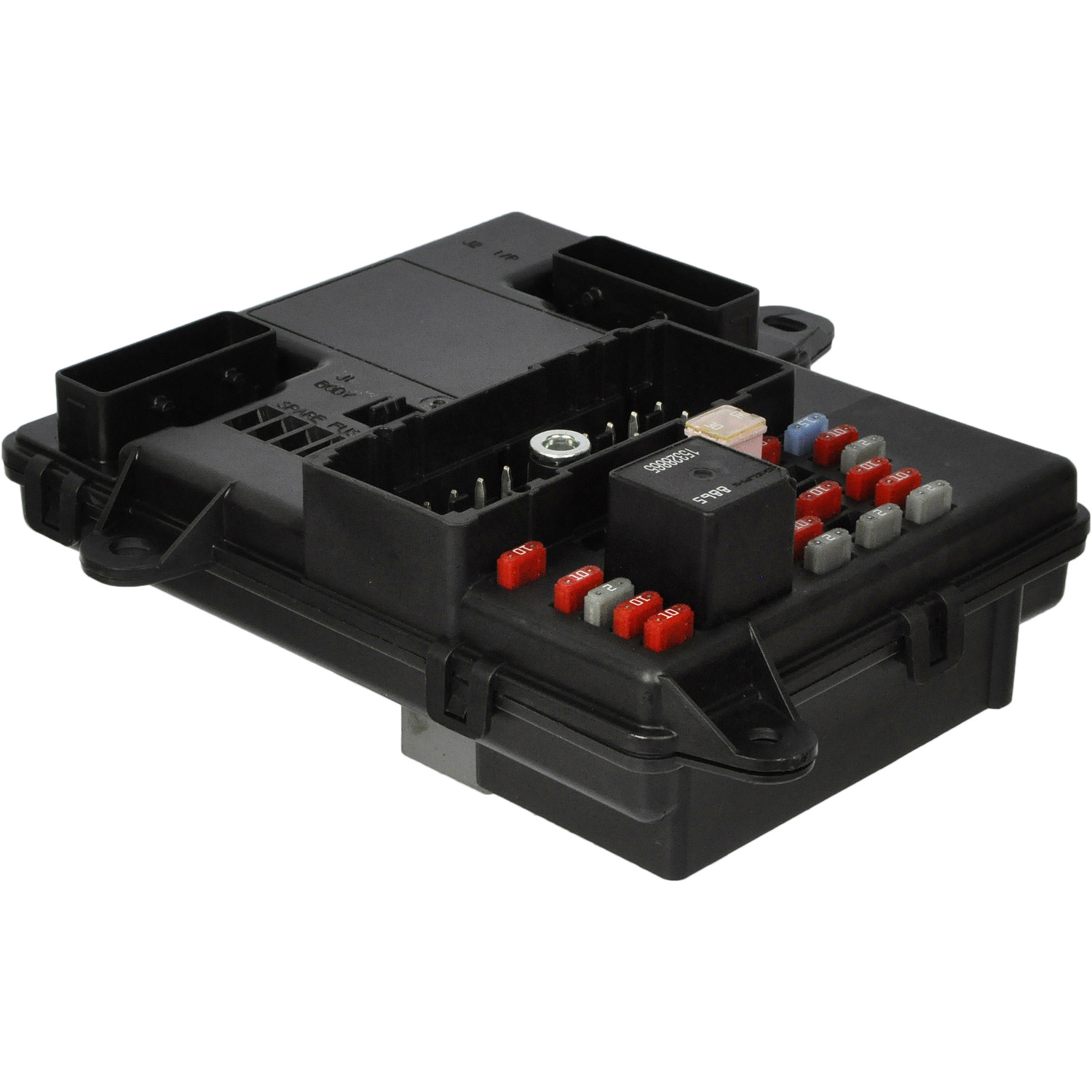

| Part Terminology | Body Control Module |
