In Store Pickup Available
| Power Assisted | Yes |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| Features and Benefits | Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. |
| Is or contains a bulb? | No |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| Output Shaft Diameter (mm) | 29.87 |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| Total Turns Lock To Lock | 4 |
| Is Prop Sixty Five Affected | No |
| Return Port Thread Diameter | 15.7 |
| Input Shaft Diameter (in) | 0.812 |
| Package Contents | Gear; Instruction Sheet; Instruction tag; Sealing Kit |
| Is the item CARB affected | No |
| Does it require SDS | No |
| Input Shaft Diameter | 0.812 |
| Is item a chemical? | No |
| SDS Required | No |
| Hose Port Type | O-Ring |
| Output Shaft Spline Quantity | 33 |
| Splined Input Shaft | No |
| Output Shaft Diameter (in) | 1.176 |
| Pressure Port Thread Size | 1/2-20 |
| Is Or Contains A Battery | No |
| Product Condition | Remanufactured |
| Is the item CARB affected? | No |
| Output Shaft Diameter | 44.98 |
| Mounting Hardware Included | No |
| Return Port Thread Size | 5/8-18 |
| Contains Electronic Components? | No |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it's due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| Type | Power |
| Output Shaft Thread Diameter | 29.87 |
| Is Or Contains A Bulb | No |
| Pressure Port Thread Diameter | 12.34 |
| Prop 65 | NO |
| Is or contains a battery? | No |
| Input Shaft Diameter (mm) | 20.62 |
| Contains Electronic Components | No |
| E-Waste | No |
| Steering Box Type | Power |
| Is Item A Chemical | No |

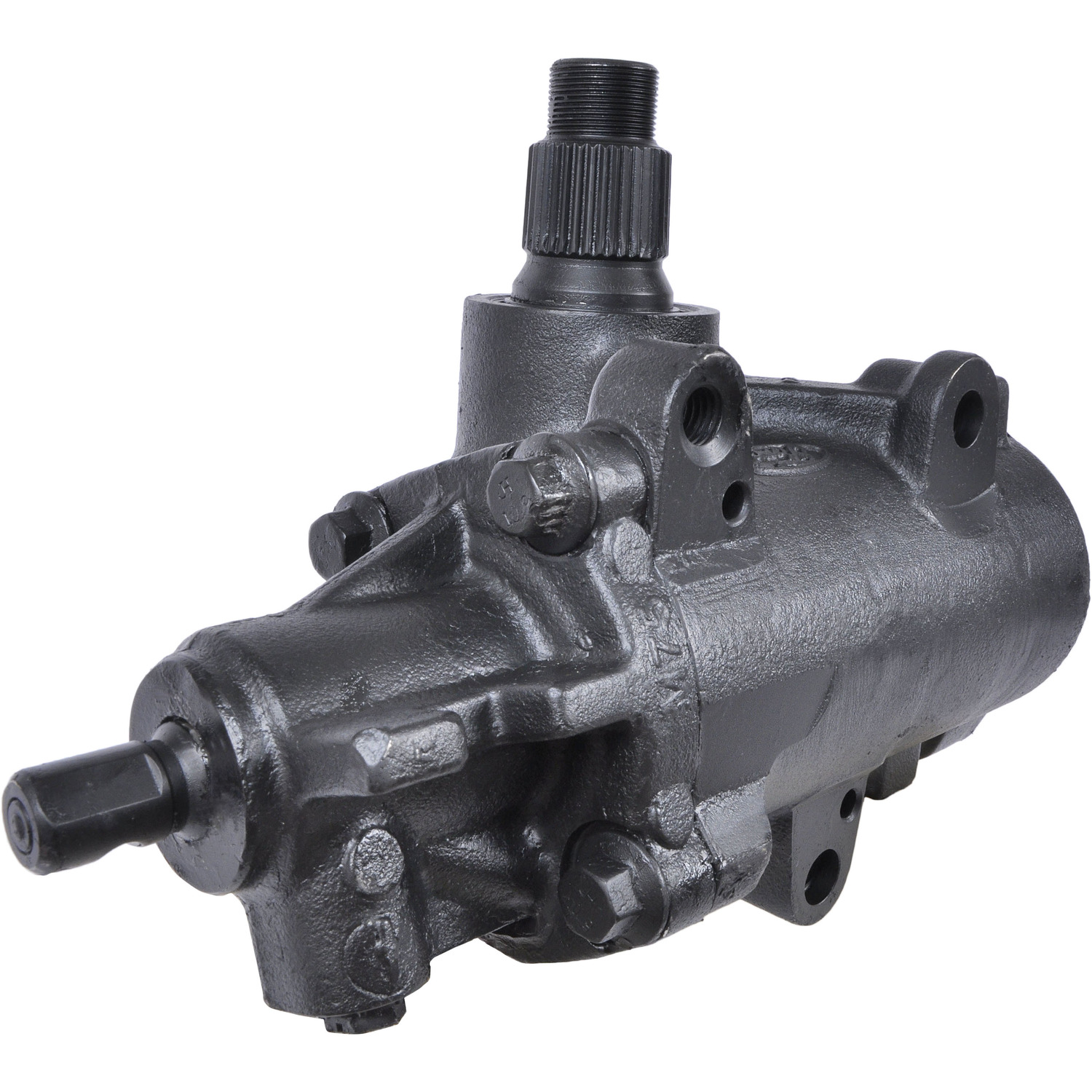

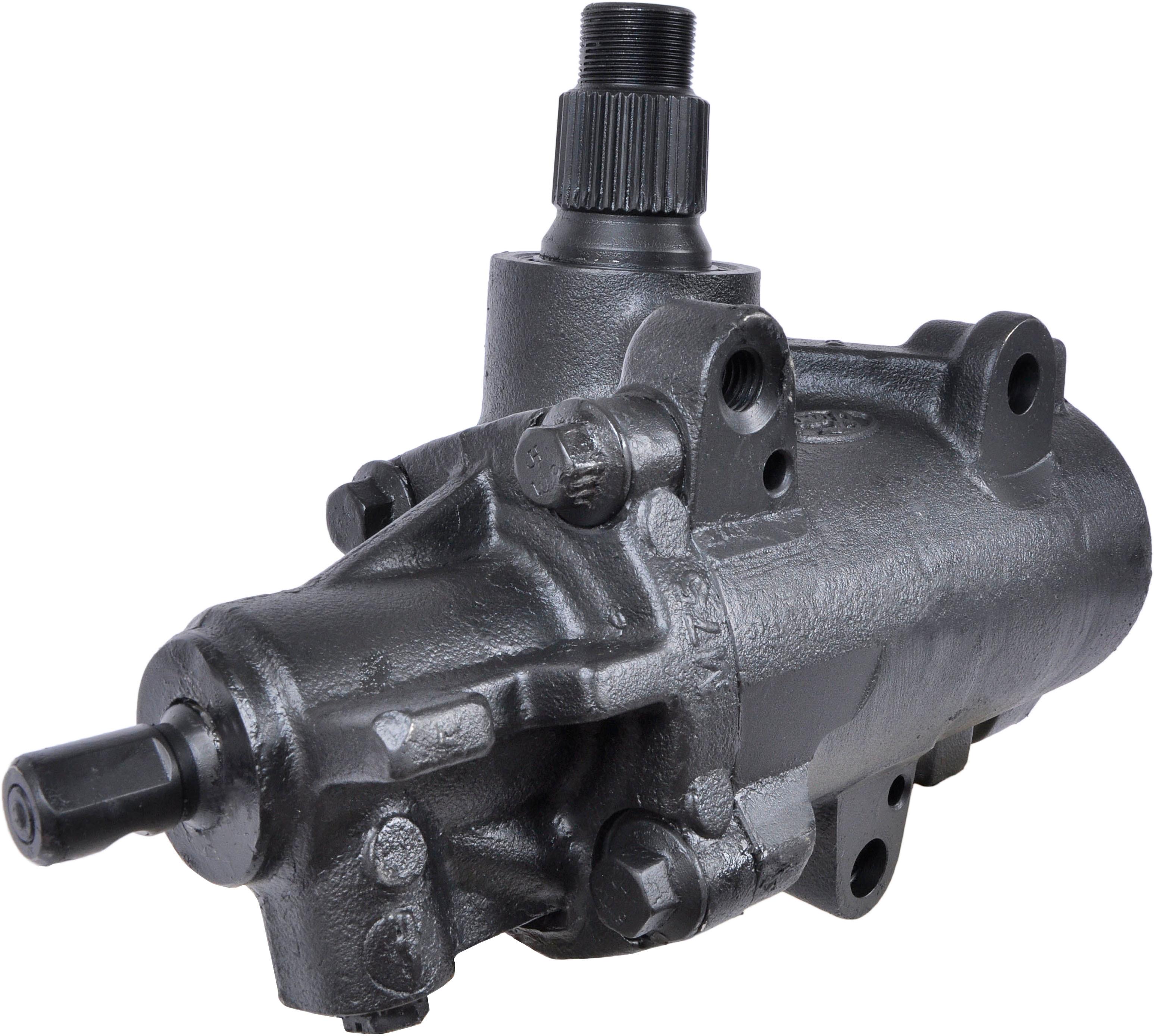

| Part Terminology | Steering Gear |
