Automatic Transmission Parts

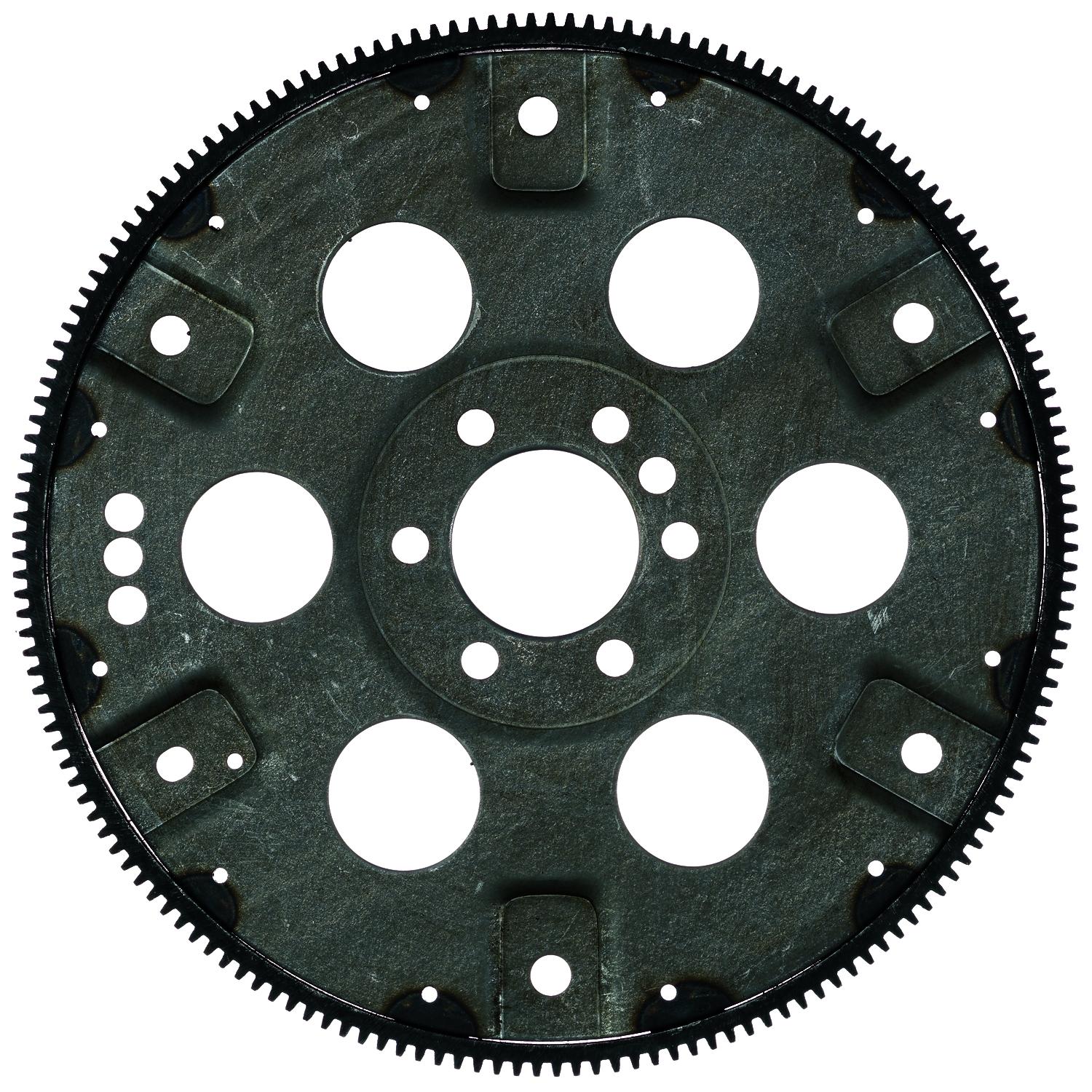

ATP Automatic Transmission Flex Plate
Part # Z-121 | Line Code: ATP
brandNameImage
brandNameImage

info Select store for pricing
error
Not Fitted

Product Details
expand_less
Tooth Quantity 168
Mounting Hole Diameter 11.5
Inside Diameter 2.482
Outside Diameter 14.125
LineCode ATP4
Weight Added N
Pitch Flywheels 12 TO 14
Teeth 168
SFI Approved N
Safety Rating N/A
SFI Certification Sticker Included N
Diameter (mm) 358.775
Diameter (in) 1.177
Heavy Duty Supplier No
Part Terminology Automatic Transmission Flexplate

Features & Benefits
expand_more
Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability

Application Summary
expand_more

Chevrolet Bel Air 74-71, 69-65, Chevrolet Biscayne 72-65, Chevrolet Brookwood 72-71, 69, Chevrolet C10 Pickup 72-71, Chevrolet C10 Suburban 72-71, Chevrolet C20 Pickup 71, Chevrolet C20 Suburban 72-71, Chevrolet C30 Pickup 71, Chevrolet Camaro 74-72, 69-67, Chevrolet Caprice 74-66, Chevrolet Chevelle 73-71, 69-65, Chevrolet Chevy II 67-65, Chevrolet Corvette 78-65, Chevrolet El Camino 74-65, Chevrolet Estate 70-69, Chevrolet Impala 74-65, Chevrolet K10 Suburban 72-71, Chevrolet K30 Pickup 71, Chevrolet Kingswood 72-69, Chevrolet Laguna 76, 74-73, Chevrolet Malibu 74-73, 67-65, Chevrolet Monte Carlo 74-70, Chevrolet Nova 70, Chevrolet P20 76-75, Chevrolet P20 Van 74, Chevrolet P30 78-75, Chevrolet P30 Van 74, Chevrolet Townsman 72, 69, GMC C15/C1500 Pickup 72-71, GMC C15/C1500 Suburban 72-71, GMC C25/C2500 Pickup 72-71, GMC C25/C2500 Suburban 72-71, GMC C35/C3500 Pickup 72-71, GMC K35/K3500 Pickup 71, GMC P25 78-75, GMC P25/P2500 Van 74, GMC P35 78-75, GMC P35/P3500 Van 74
