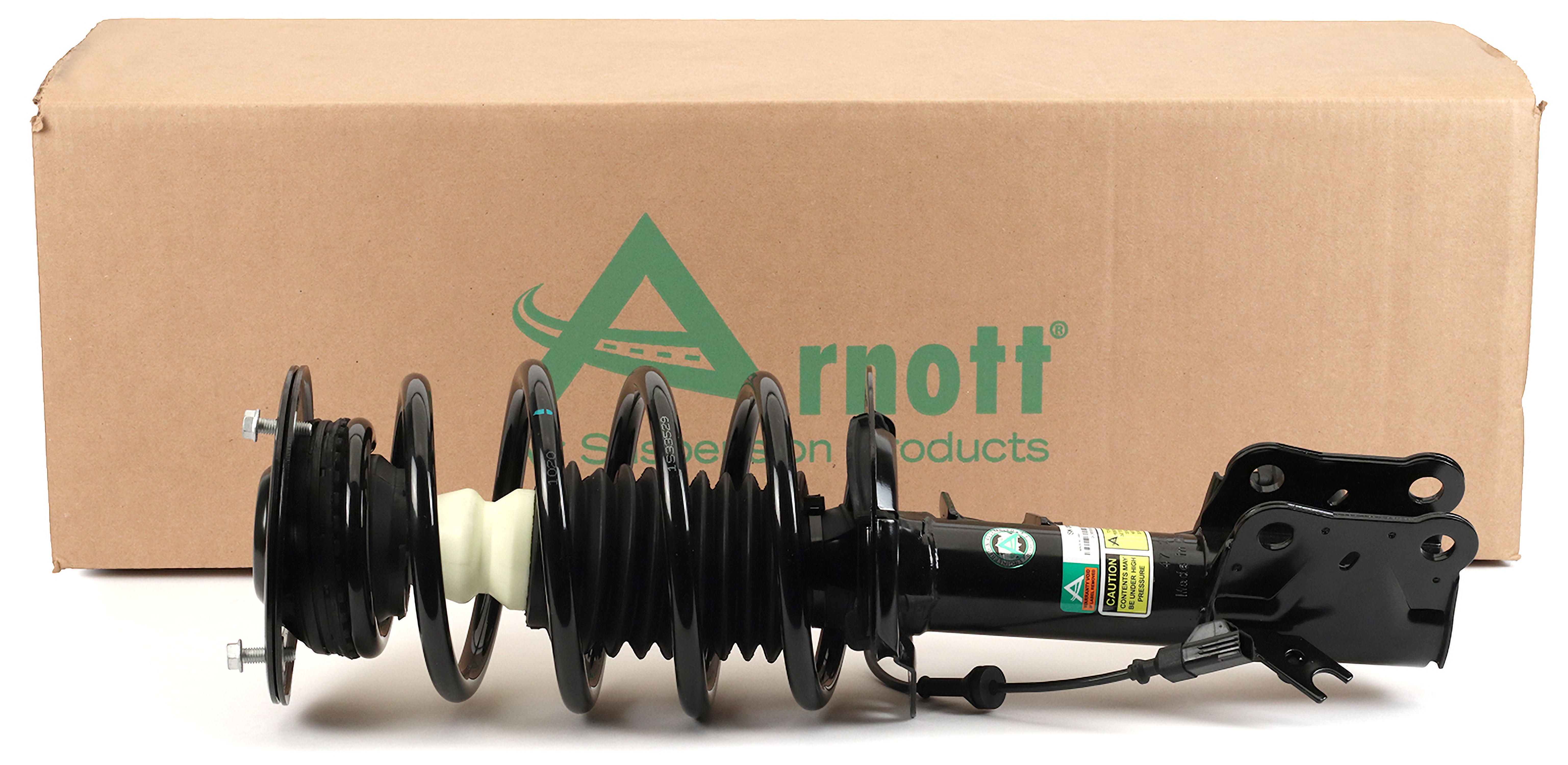

New Air Suspension Strut
Part # SK-3600 | Line Code: ARN
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Housing Material Steel
Bladder(s) Included No
Coil Spring Included Yes
Lower Mounting Isolator Included No
Adjustable Ride Height No
Air Bladder No
Internal Damper Type Hydraulic
Active or Passive Suspension Passive
Body Diameter 55.0
Extended Length 525
Dust Shield Material Rubber
Boot Included Yes
Lower Mount Type bracket
Bearing Plate Included Yes
Air Bladder Material N/A
Body/housing Diameter 55
Air Ride Suspension No
Internal Construction Type Twin Tube
Outer Housing Diameter 55.0
Boot/dust Shield Included Yes
Shock Spring Assisted Yes
Adjustable No
Upper Mount Type bolt
Contents Coil/Strut Assembly
Adjustable Rebound No
New Or Remanufactured New
California Proposition 65 N/A
Adjustable Damping No
Adjustable Compression No
Boot Color Black
Springs Included Yes
Gas Charged Yes
Bladder Heavy Duty Crimping Rings Included No
Progressive Spring Rate No
Spring Isolators Included Yes
Coil Spring Maximum Outside Diameter N/A
Shock Absorber Rod End Measuring Point Shoulder of Stud
Adjustable Dampening No
Protective Aluminum Can No
Spring Seat Included Yes
Dust Shield Included Yes
Air Adjustable No
Bladder Sleeve(s) Included No
Spring Rate Type Linear
Compressed Length 380
Mounting Hardware Included Yes
Shock/strut Design Twin Tube
Coil Over Springs Included Yes
Heavy Duty Crimping Rings No
Shock/strut Color Black
Travel Length 145
Body End Measuring Point Center Eye
Grade Type Standard Replacement
Upper Mounting Isolator Included Yes
Part Terminology Suspension Strut and Coil Spring Assembly

Features & Benefits
expand_more
Pre-assembled strut and coil spring unit for convenient installation. Arnott's exclusive strut manufactured for your vehicle (CD533) and Ford Fusion (CD391) side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.

Application Summary
expand_more

13-16 Lincoln MKZ(CD533)/Ford Fusion(CD391)
