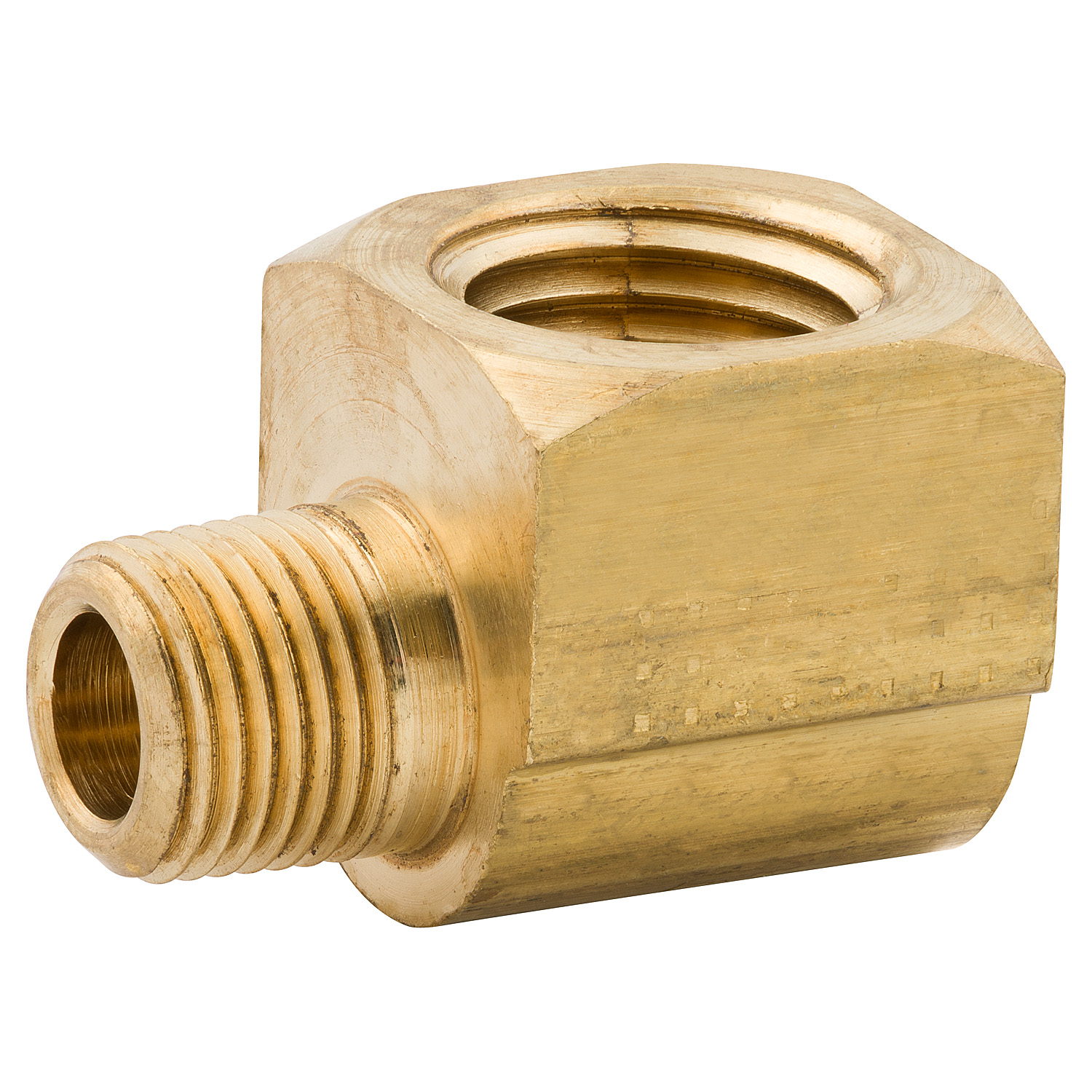

Street Elbow, Br, 1/8 NPTM, 1/4 NPTF, Bag

Part # PTF-49B | Line Code: AGS

Select store for pricing

Not Available

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

End 2 Type	Female 1/4-18 NPT
Bend Angle (deg)	90
Shape	Elbow
Working Temp Range (deg F)	-65 To +250
Maximum Working Pressure	900
End 2 Thread Size (in)	1/4 - 18
End 2 Thread Size	1/4-18 Inch
SAE or Metric	SAE
Working Temperature Range	-65 To +250
End 1 Thread Size	1/8-27 Inch
Material	Brass
Thread Size	1/8-27 Inch
California Prop 65	WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Range (deg F)	-65 To +250 Degrees
End 1 Thread Size (in)	1/8 - 27
Bend Angle Degree	90
End 1 Type	Male 1/8-27 NPT
California Proposition 65	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Thread Size (in)	1/8 - 27
Maximum Working Pressure (psi)	900
Alliance Keywords	pipe fitting, raccord de tuyau
Temperature Range (deg C)	-54 To +121
Part Terminology	Pipe Fitting

Features & Benefits

Threads conform with the American standard taper pipe thread and resist vibration. Tighten a minimum of 2-1/2 turns after hand tightening for air tight seal. Recommended uses include copper, brass, and iron. Working temp (pressure): -65 degrees F to 250 degrees F (1000 psi). Applications include oil, water, air, and natural gas. AGS brass and steel fittings are comprised of Tube Nuts, Unions (Couplers), Adapters, Elbows, Tees, Bushings, Connectors, Grease, etc... AGS fittings are held to the strictest standards to perform flawlessly in their intended applications. Fittings are offered in a variety of packaging options, including: retail clam-shells, bulk boxed, and plastic tray assortments.
