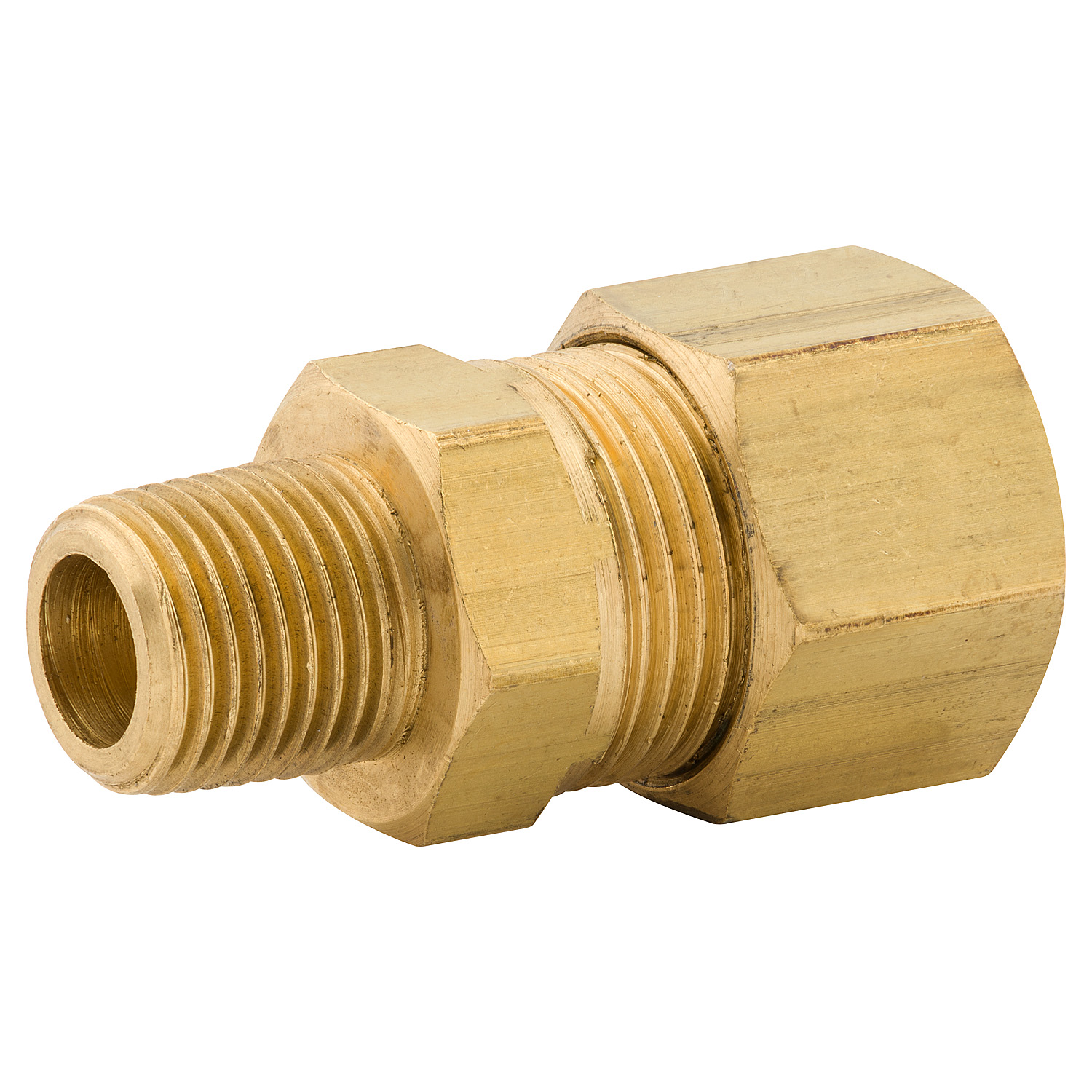

Name: Pipe to Compression Fitting
Brand: AGS

keyboard_arrow_left

Go back

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Connector Com, Br, 3/8, (1/8 NPTM), Bag

Part # CF-16B | Line Code: AGS

Select store for pricing

Not Available

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Thread Diameter	Male 1/8-27 NPT
Working Temp Range (deg F)	-65 To +250
Maximum Working Pressure	900
Compression Sleeve Inside Diameter (in)	3/8
End 2 Thread Size (in)	1/8 - 27
End 2 Thread Size	1/8-27 Inch
SAE or Metric	SAE
Working Temperature Range	-65 To +250
End 1 Thread Size	9/16-24 Inch
Material	Brass
Thread Size	1/8-27 Inch
California Prop 65	WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Thread Diameter (In)	Male 1/8 - 27 NPT
Temperature Range (deg F)	-65 To +250 Degrees
End 1 Thread Size (in)	9/16-24
Compression Sleeve Inside Diameter	3/8 in
Inside Diameter	3/8
California Proposition 65	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Thread Size (in)	1/8 - 27
Tube Size (In)	3/8
Maximum Working Pressure (psi)	900
Temperature Range (deg C)	-54 To +121
Part Terminology	Pipe to Compression Fitting

Features & Benefits

Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).
