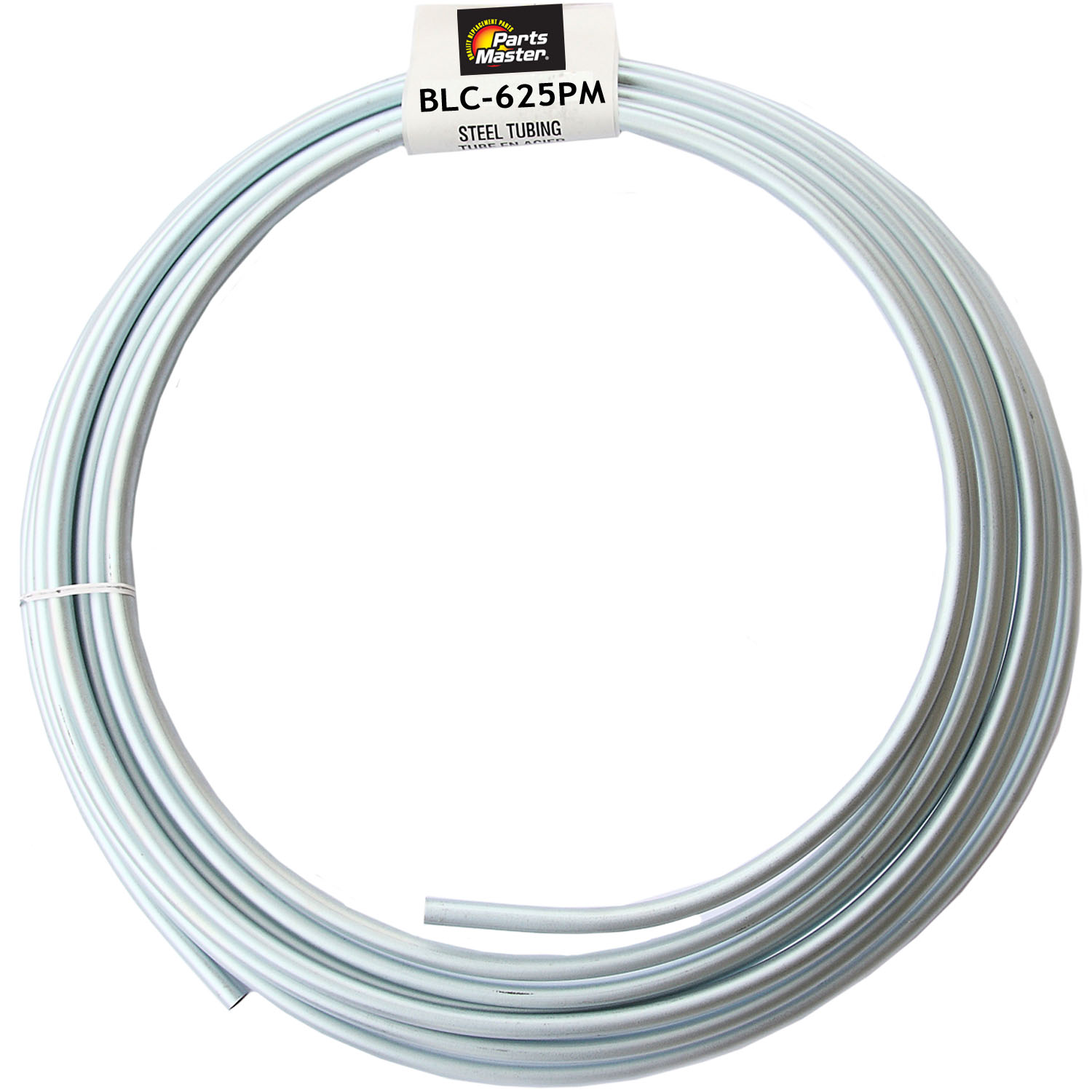

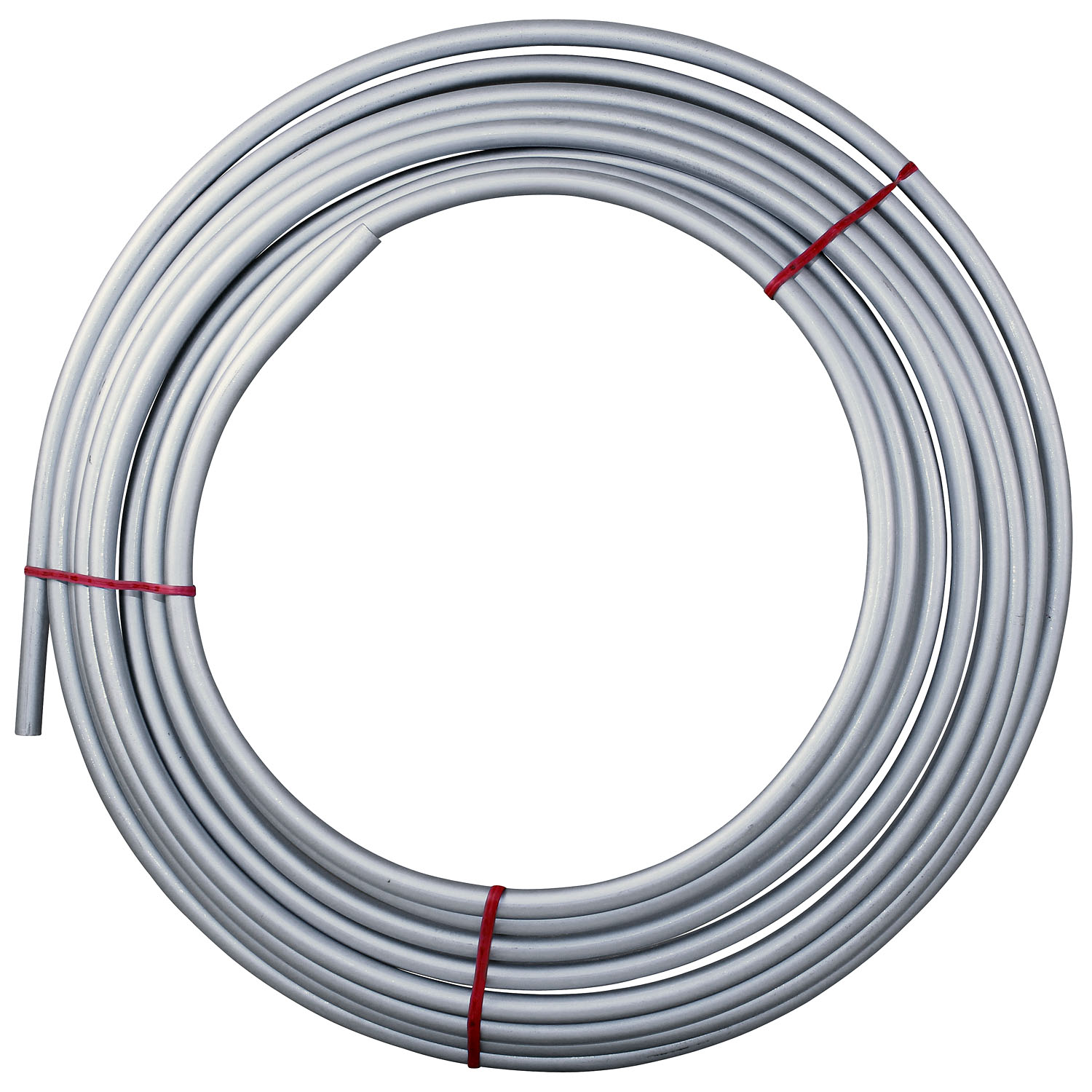

Steel Brake/Fuel/Transmission Line Tubing Coil, 3/8 x 25
Part # BLC-625 | Line Code: AGS
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Maximum Working Pressure 1600
Tube Outside Diameter (in) 0.375
Material Steel
Length (ft) 25
Tube Outside Diameter (mm) 10
Bending method Tubing bender suggested
Length 300 Inches
Length (in) 300.00 in
Leg Length 25
Fittings Included No
California Proposition 65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Tube Outside Diameter 0.375
Maximum Working Pressure (psi) 1600
Alliance Keywords brake line, steel brake line, conduite de frein, ligne à frein
Part Terminology Brake Hydraulic Bulk Line

Features & Benefits
expand_more
Formed from copper-brazed, double-walled, steel or copper nickel alloy tubing as used in pre-made lines. When combined with tube nuts and flaring tool, coils are an economical solution for shops that want to build their own lines, custom lengths or non-standard applications. Use to fabricate 3/8 in. Domestic, European, Japanese, British, and adapter brake lines. This entry-level replacement line is an excellent choice for aftermarket fluid transfer line repair and replacement. The steel lines and tubing are constructed with safety and longevity in mind. The tubing is produced by wrapping copper-coated steel around itself twice to form the tubing. This double-wall tube is what provides the strength and structural integrity to withstand the extreme pressures required, yet still remains pliable enough to be formed and bent to the shapes required to be routed beneath the vehicle. The finished tube is fused and zinc-coated to provide excellent rust and corrosion resistance as well. The Standard Steel line has been the choice of professional installers/mechanics and do-it-yourself mechanics for many years. When properly installed, the standard steel line can provide a long-lasting repair or replacement for many types of vehicles and for all types of fluid transfer systems, including braking systems. Standard Steel lines and tubing meet the following specifications: SAEJ527b, GM123M, SAEJ1290, DIN 74234
