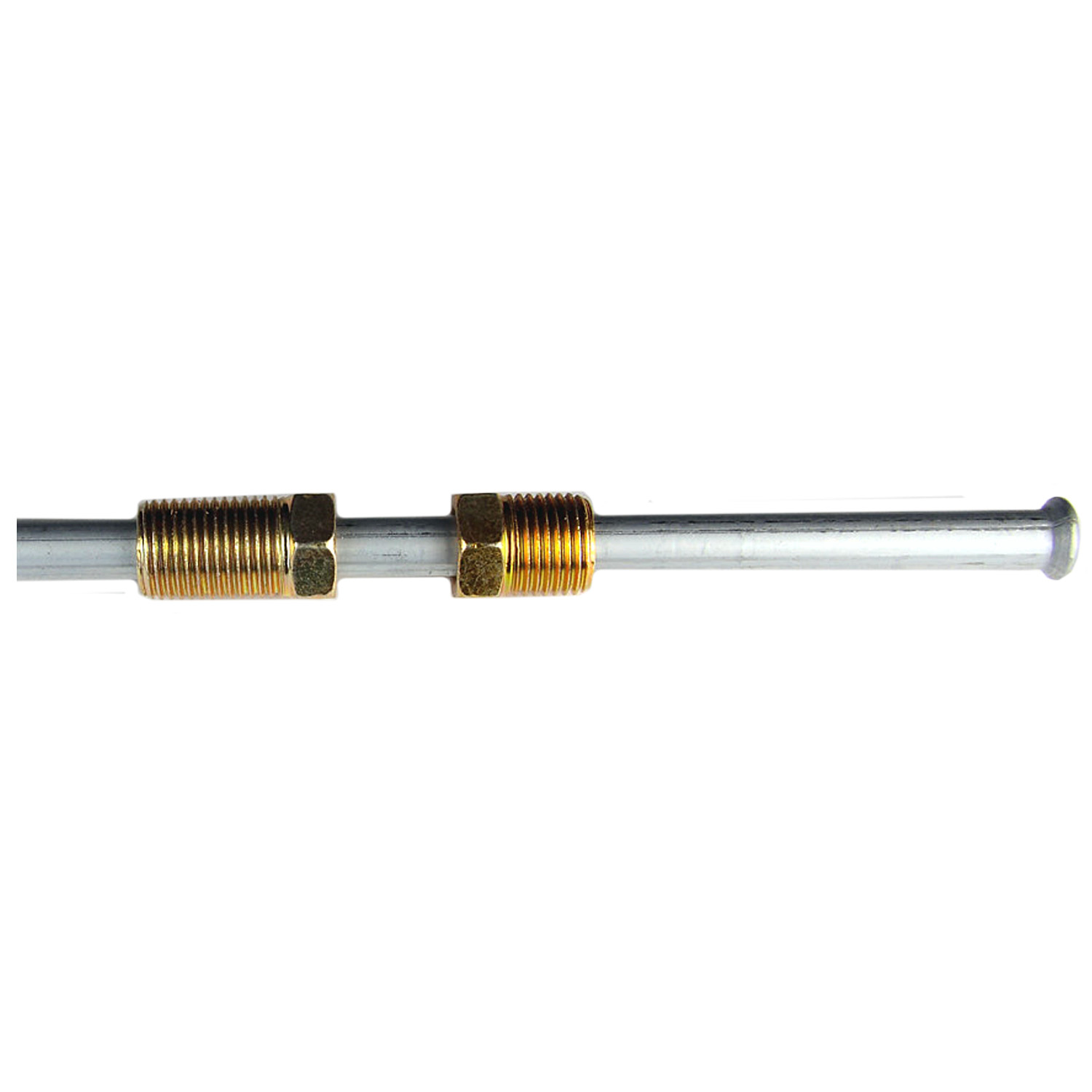

Domestic Steel Brake Line, 1/4 x 12
Part # BL-412 | Line Code: AGS
brandNameImage
brandNameImage

info Select store for pricing
Not Available
error
Not Fitted

Product Details
expand_less
Fitting Material Steel
End 2 Thread Diameter 7/16 - 24
End 2 Flare Type Inverted
Fitting Finish Zinc Dichromate
Pre-Formed No
Inside Diameter 1/4
Fitting Type Tube Nut
Outer Wear Guard No
Alliance Keywords Brake Hydraulic Line, steel lines, brake tubing, Tuyau de frein, conduite de frein
End 1 Thread Diameter (in) 7/16 - 24
Finish Zinc Dichromate
End 1 Thread Diameter 7/16 - 24
End 1 Flare Type Inverted
Polyvinyl Fluoride Coated No
Material Steel
Line Material Steel
Line Length 12
Bendable Yes
Length 12 in
End 2 Thread Diameter (in) 7/16 - 24
California Proposition 65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Line Diameter 1/4 in
End 1 Fitting Size 7/16 - 24
Outer Spring No
End 2 Fitting Size 7/16 - 24
Part Terminology Brake Hydraulic Line

Features & Benefits
expand_more
AGS is the industry leader in the automotive aftermarket for steel brake, fuel, and transmission lines. Combining only the highest quality components, AGS manufactures steel lines that lead the automotive aftermarket in quality, coverage, and fill-rate. The entry-level replacement line in the AGS brake line category is still an excellent choice for aftermarket fluid transfer line repair and replacement. The steel lines and tubing are constructed with safety and longevity in mind. The tubing is produced by wrapping copper-coated steel around itself twice to form the tubing. This double-wall tube is what provides the strength and structural integrity to withstand the extreme pressures required, yet still remain pliable enough to be formed and bent to the shapes required to be routed beneath the vehicle. The finished tube is fused and zinc-coated to provide excellent rust and corrosion resistance as well. The AGS Standard Steel line has been the choice of professional installers/mechanics and do-it-yourself mechanics for many years. When properly installed, the standard steel line can provide a long-lasting repair or replacement for many types of vehicles and for all types of fluid transfer systems, including braking systems. However, when a vehicle is expected to see harsh environments like snow, road treatments, salt air, etc...on a regular basis or when the longest replacement life is required; other AGS premium lines like Poly-Armour and NiCopp should be considered. - Excellent Resistance to Rust and Corrosion - DOT Approved for Hydraulic Brake Systems - Bends and Forms without Kinking - Available in Coils of 25ft - Finished Lines Available for Domestic and Import. Standard Steel lines and tubing meet the following specifications: SAEJ527b, GM123M, SAEJ1290, DIN 74234
